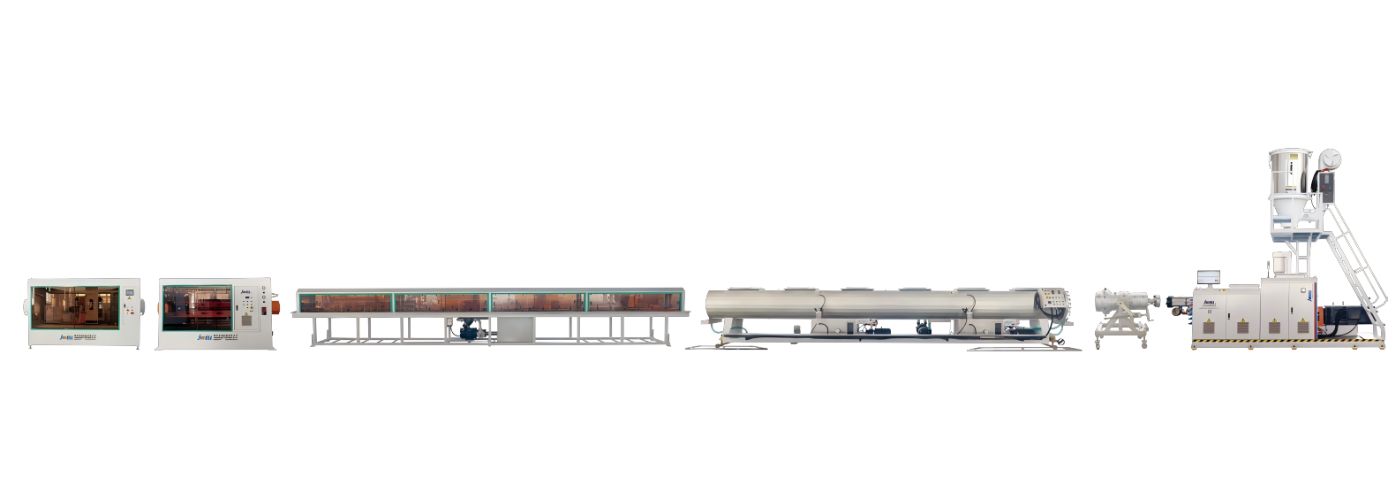

High-speed Energy-saving HDPE Solid Wall Pipe Extrusion Line
Key Selling Points
- The production line is suitable for high-speed polyolefin pipe extrusion. 35% energy saving and 1x increase in production efficiency.
- Specifically designed 38-40 L/D screw structure and the feeding slot barrel make the melt extrusion and plasticizing effects greatly improved.
- High-torque, high-strength gearboxes ensure stable operation of the equipment.
- Extrusion molds and sizing sleeves adopt the most advanced design structure. The PLC variable frequency control vacuum tank, servo-driven multi-track tractor, and high-speed chipless cutter are equipped with a meter weight control system. The pipe extrusion weight is more accurate.
Main Technical Parameter
| Raw Material | Extruder Model | Output | Type | Installed power | Dimensions (LxWxH) | Pipe I.D. | Price / $ |
| PE | JWS-H60/40 | 350KG/H | JWPEG-H63 | 200KW – 700KW | 30mx3mx3m – 70mx5mx10m |
16 – 63mm
|
USD 56K – 134K, FOB Shanghai |
| PE | JWS-H60/40 | 450KG/H | JWPEG-H110 | 200KW – 700KW | 30mx3mx3m – 70mx5mx10m | 20 – 110mm | USD 14K – 697K, FOB Shanghai |
| PE | JWS-H75/38 | 500KG/H | JWPEG-H160 | 200KW – 700KW | 30mx3mx3m – 70mx5mx10m | 50 – 160mm | USD 14K – 697K, FOB Shanghai |
| PE | JWS-H75/38 | 550KG/H | JWPEG-H250 | 200KW – 700KW | 30mx3mx3m – 70mx5mx10m | 75 – 250mm | USD 14K – 697K, FOB Shanghai |
| PE | JWS-H75/38 | 650KG/H | JWPEG-H315 | 200KW – 700KW | 30mx3mx3m – 70mx5mx10m | 110 – 315mm | USD 14K – 697K, FOB Shanghai |
| PE | JWS-H90/38 | 950KG/H | JWPEG-H450 | 200KW – 700KW | 30mx3mx3m – 70mx5mx10m | 160 – 450mm | USD 14K – 697K, FOB Shanghai |
| PE | JWS-H90/38 | 1050KG/H | JWPEG-H630 | 200KW – 700KW | 30mx3mx3m – 70mx5mx10m | 315 – 630mm | USD 14K – 697K, FOB Shanghai |

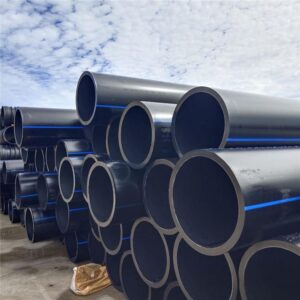

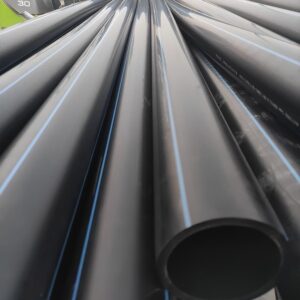

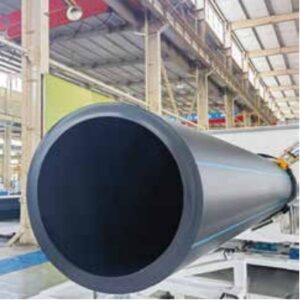

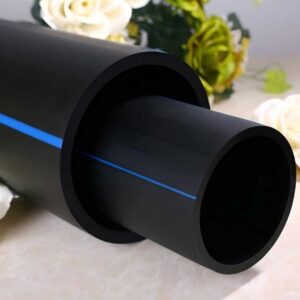

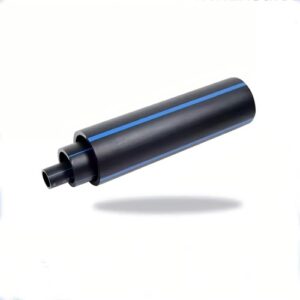

Application Scenarios
