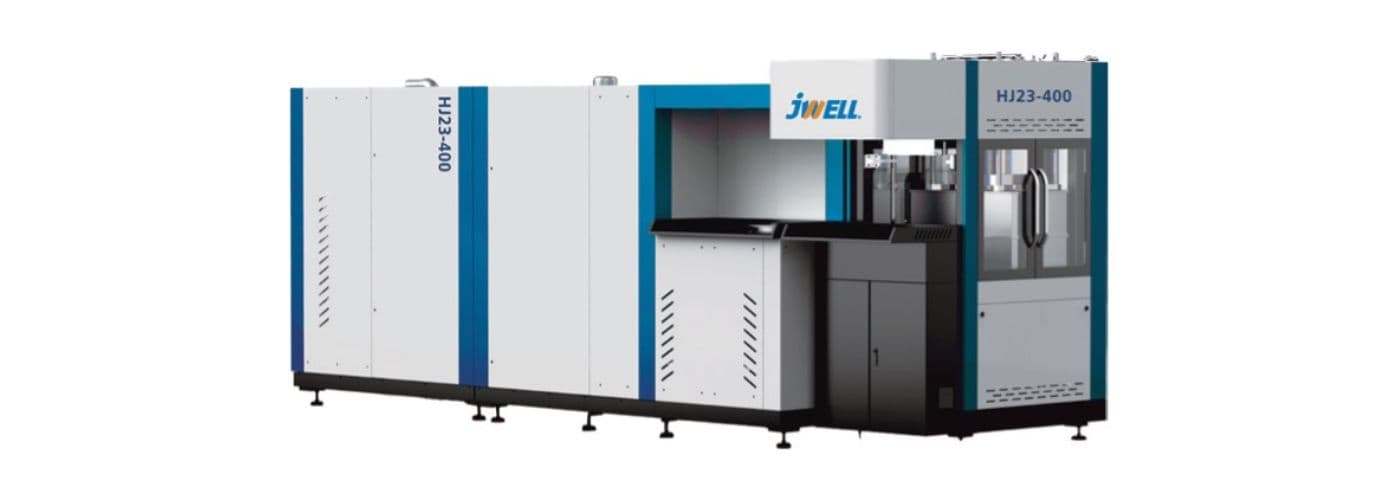

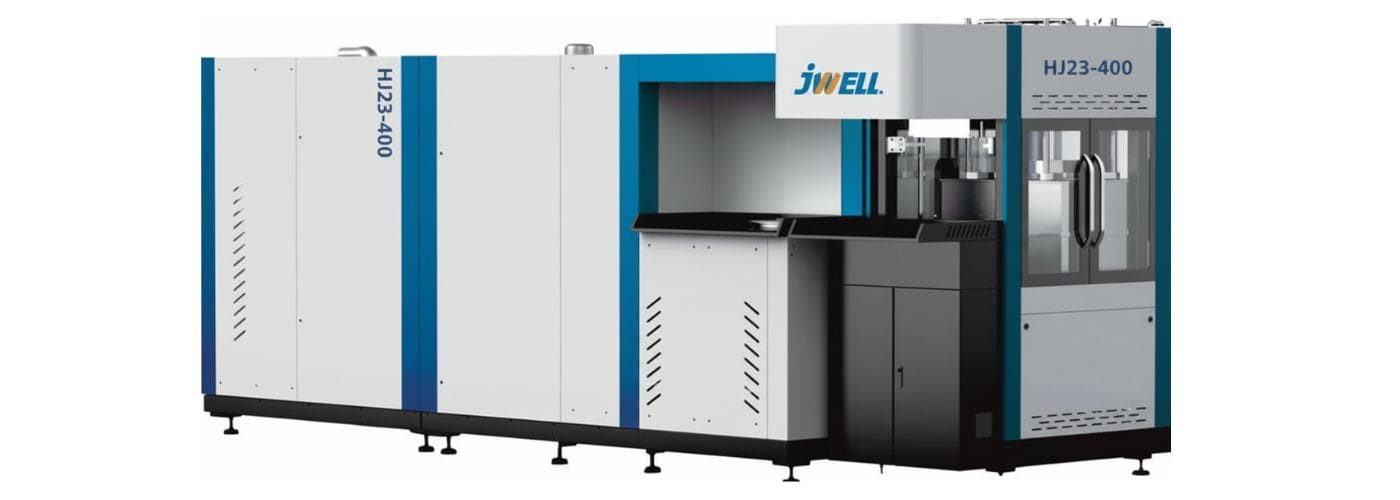

HJ23-400 Automatic Pulp Molding Sampling Production Line

Product Scenario & Finished Product Display

Technical Specifications

Specification Category Details
Machine Model HJ23-400D/Y (D = Electric Heating; Y = Oil Heating)
Outer Dimension L5200 × W3000 × H2500 mm
Platen Size 425 × 425 mm
Equipment Weight 3T
Forming Method Reciprocating
Max. Product Height 100 mm
Machine Drive Mode Servo + Screw + Electric Cylinder
Capacity 80–200 kg/22H
Cycle Time (Per Mold) 40–180 seconds/drop

Core Advantages

  1. All-in-One Sampling Solution
    Suitable for sampling production of various pulp molding products (e.g., packaging, tableware, industrial buffers). No need for separate system construction—one machine completes the entire sampling process independently.
  2. Full-Process Automation
    From raw material feeding to finished product output, the entire workflow operates automatically. This eliminates manual intervention, shortens sampling cycles, and ensures efficient, hassle-free proofing.
  3. Consistent Product Quality
    Equipped with a precise temperature control system and stable operation mechanism, the machine maintains uniform processing conditions. This guarantees consistent texture, shape, and performance of sampled products batch after batch.
  4. Flexible Mold Compatibility
    Mold replacement is quick and simple, with 适配 for multiple mold types. It can easily adapt to sampling needs of different product sizes and designs, supporting rapid iteration of pulp molding prototypes.
