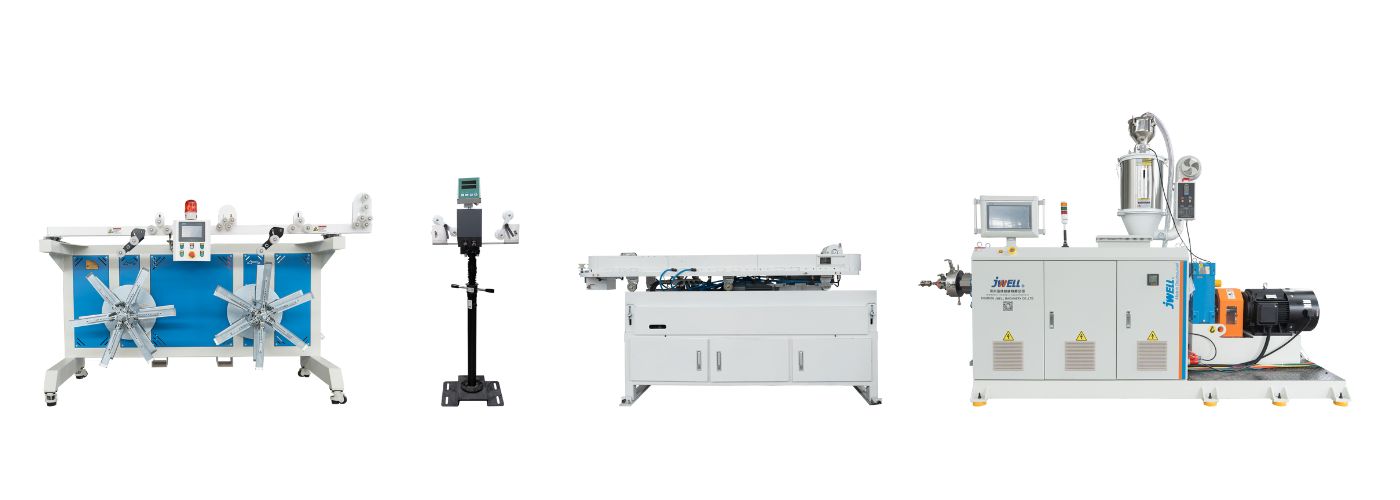

Horizontal Single/Double Wall Corrugated Pipe Production Line
Key Selling Points
- Small-Diameter DWC Production (50-200mm): For drainage, exhaust & power applications
- Fully Automated HMI Control: Patented technology, stable operation, high output
- High-Efficiency Single-Screw Extruder: Superior plasticization & product flexibility
- User-Friendly Horizontal Design: Easy operation & maintenance
Main Technical Parameter
| Raw Material | Extruder Model | Line Speed | Type | Installed power | Dimensions (LxWxH) | Pipe I.D. | Price |
| PP/PE/PA | 45/28 | 24m/min | JWDBW 16-32 | 60KW – 100KW | 12mx3mx3m – 20mx5mx5m |
10mm – 50mm
|
USD 30K – 600K, FOB Shanghai |
| PP/PE/PA | 65/28 | 20m/min | JWDBW 16-50 | 60KW – 100KW | 12mx3mx3m – 20mx5mx5m | 10mm – 50mm | USD 30K – 600K, FOB Shanghai |
| PP/PE/PA | 45/33+45/33 | 0.6-6m/min | JWSBW-50-110 | 60KW – 100KW | 12mx3mx3m – 20mx5mx5m | 10mm – 50mm | USD 30K – 600K, FOB Shanghai |
| PP/PE/PA | 65/33+65/33 | 0.5-5m/min | JWSBW-50-160 | 60KW – 100KW | 12mx3mx3m – 20mx5mx5m | 10mm – 50mm | USD 30K – 600K, FOB Shanghai |
| PP/PE/PA | 75/33+65/33 | 0.4-4m/min | JWSBW-110-200 | 60KW – 100KW | 12mx3mx3m – 20mx5mx5m | 10mm – 50mm | USD 30K – 600K, FOB Shanghai |

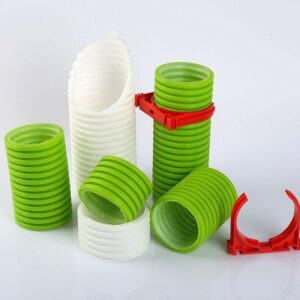

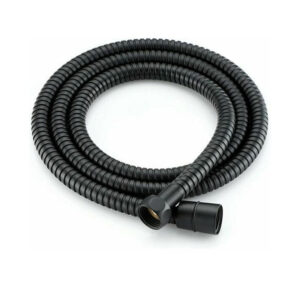

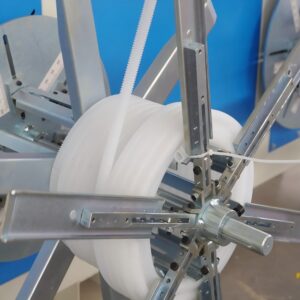

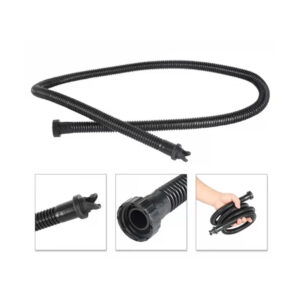

Application Scenarios
Product Description
The JWELL DWC Small-Diameter Pipe Extrusion Line is a specialized manufacturing system engineered for efficient production of 50–200mm DWC (double-wall corrugated) pipes for drainage, exhaust, and power applications.
- Versatile Small-Diameter Pipe Solution: A complete production line for extruding 50-200mm double-wall corrugated pipes, widely used for drainage, cable conduit, and ventilation systems.
- Advanced Automation & Control: The entire line is managed by a computer-based HMI, featuring patented technology for a high degree of automation, ensuring stable, high-output performance.
- Superior Pipe Quality: Utilizes a new high-efficiency single-screw extruder that provides excellent plasticization, resulting in highly flexible and durable corrugated pipe products.
- Operator-Friendly Machine Design: The molding machine features an accessible horizontal structure, making it exceptionally easy to operate, monitor, and maintain.
