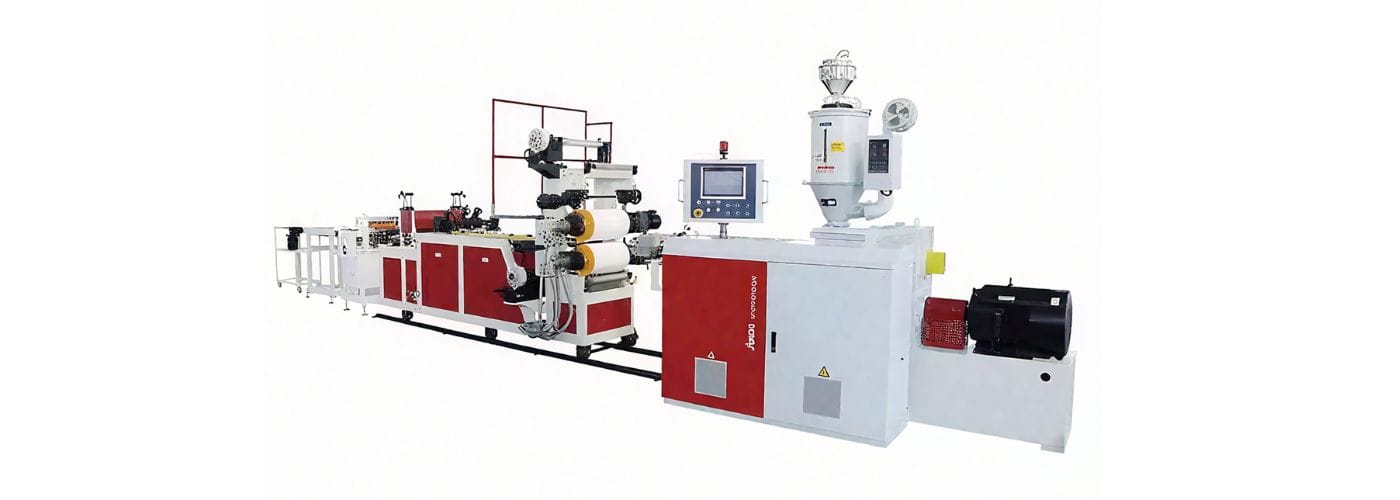

PE Carbon Black Copper-plastic Composite Production Line
Key Selling Points
- Military-Grade 5-Layer Coextrusion: Battenfeld “Gradient Fusion,” 15N/mm² interlayer strength
- Nano-Level Conductive Uniformity: ABB metering, ≤5% resistivity, IR monitoring, zero static
- Intelligent Temperature-Calendering: 7-roll hydraulic, electromagnetic preheating, 40% energy savings
- End-to-End Digital QC: QMS 3.0, 3D laser scanning, ±0.15mm precision
Main Technical Parameter
| Extruder Model | Output | Installed Power | Dimensions (LxWxH) | Product Thickness | Price | Product width |
| JWS45 | 20-30KG/H | 113KW | 9.5m*4m*2.6m | 0.5-1.2mm | USD 100-120K, FOB Shanghai | 300mm |
Product Description
The JWS45 Conductive Film Extrusion Line is a state-of-the-art solution engineered for precision manufacturing of high-performance conductive films. Combining advanced coextrusion technology with intelligent process control, this system delivers superior quality, consistency, and energy efficiency for demanding industrial applications.
- Static-Sensitive Application Solutions: Purpose-built conductive flooring for data centers, cleanrooms, electronics manufacturing, and sensitive equipment environments requiring superior electrostatic dissipation
- Advanced Multi-Layer Architecture: Five-layer composite structure seamlessly integrates PE substrate with carbon black conductive layer and copper foil for optimal performance and durability
- Precision Electrical Properties: Automated ABB dosing with infrared monitoring ensures uniform conductivity throughout production, eliminating static buildup hotspots and voltage irregularities
- Energy-Efficient Processing: Electromagnetic copper foil preheating technology integrated with seven-roll hydraulic calendering reduces energy consumption by 40% without compromising product quality
- Quality Assurance Excellence: JWELL QMS 3.0 quality management paired with 3D laser metrology delivers ±0.15mm dimensional consistency and comprehensive 100% product inspection
- Reliable Industrial Production: Compact footprint design with 20–30 kg/h output capacity enables rapid deployment and seamless integration into existing manufacturing operations
