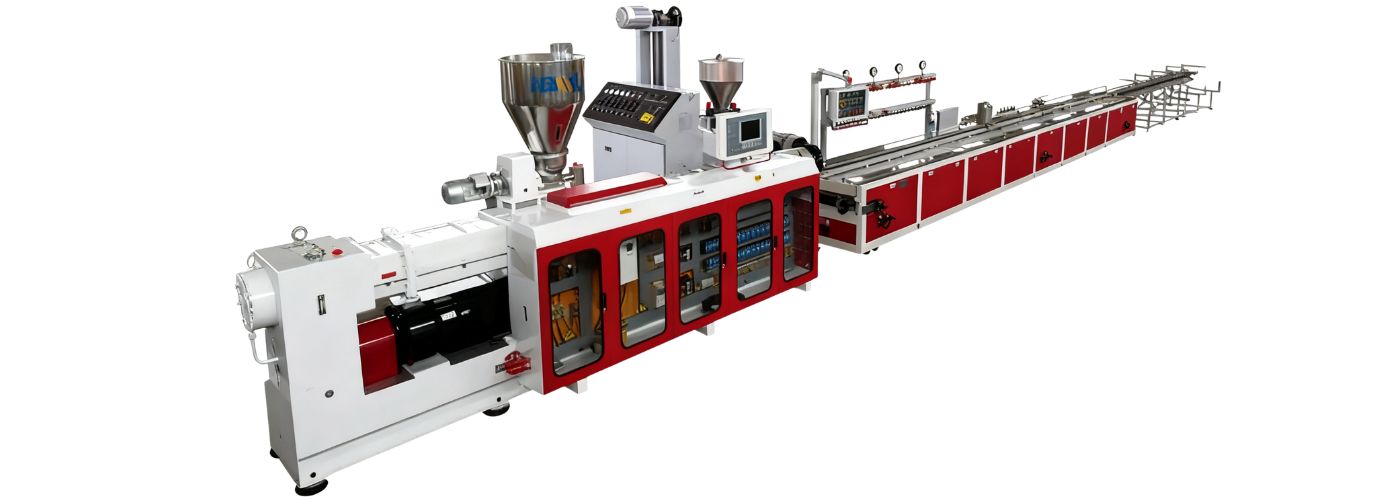

Jwell Classic Type and High Speed PVC Profile Extrusion Line
Key Selling Points
- Imported Inverter Control: High output with low energy consumption
- Vacuum Tank System: Precise dimensional accuracy and surface quality
- Quality Components: Easy maintenance and long service life
- Customizable Setup: Various specifications and customer needs
Main Technical Parameter
| Extruder Model | Output | Installed Power | Dimensions (LxWxH) | Product Thickness | Price (USD) |
| SJP75/28 | 150 – 250KG/H | 110KW | 32m*2.8m*2.4m | 1.0 – 1.4mm | USD 70K, FOB Shanghai |
| SJP93/30 | 250 – 400KG/H | 110KW | 32m*2.8m*2.4m | 1.0 – 1.4mm | USD 84K, FOB Shanghai |
| SJP110/28 | 400 – 500KG/H | 110KW | 32m*2.8m*2.4m | 1.0 – 1.4mm | USD 111K, FOB Shanghai |
| SJZ55/110 | 150KG/H | 110KW | 27m*2.8m*2.4m | 1.0 – 1.4mm | USD 42K, FOB Shanghai |
| SJZ65/132 | 250KG/H | 110KW | 27m*2.8m*2.4m | 1.0 – 1.4mm | USD 56K, FOB Shanghai |
| SJZ80/156 | 450KG/H | 110KW | 27m*2.8m*2.4m | 1.0 – 1.4mm | USD 63K, FOB Shanghai |

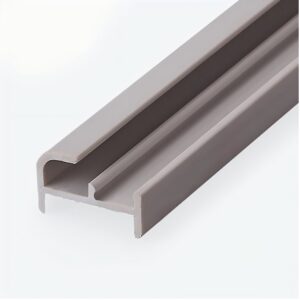

Application Scenarios
Product Description
Our advanced extrusion line produces high-quality PVC profiles with superior plasticizing ability and stable performance. This system delivers precision engineering with flexible customization options to meet diverse market demands.
Key Features
- High-Performance Extruder: The line is equipped with high-performance co-rotation parallel twin-screw extruder or conical twin-screw extruder. It offers strong plasticizing ability and stable extrusion performance. It adapts to processing PVC raw materials with different formulations.
- Advanced Cooling and Calibration: The line features an advanced vacuum calibration table and cooling water tank. These cool and shape extruded profiles quickly to ensure dimensional accuracy and excellent surface quality.
- Outstanding Performance: The line delivers stable plasticity, high output, and low shearing force with long service life advantages for reliable production.
- Personalized Customization: As market demands become increasingly diversified, the company provides personalized customization services. It meets special needs of different customers for PVC profiles with various specifications.
