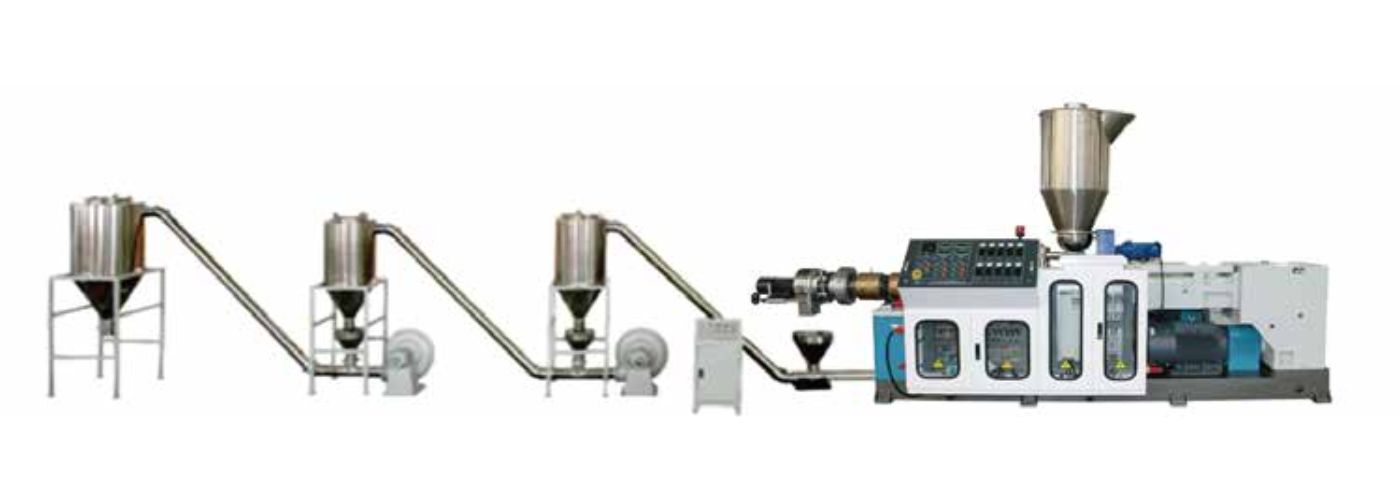

Jwell Medical Grade PVC Pelletizing Machine

Key Selling Points

Medical-Grade Purity Assurance: Contamination-free processing for clinical applications
High-Precision Twin-Screw Extrusion: Consistent thermal control for heat-sensitive PVC
Automated Die-Face Granulation: Uniform pellet geometry and size distribution
High-Efficiency Throughput: Scalable production capacity up to 1200 KG/H
Vibration Separation and Cooling: Rapid heat removal for dense and beautiful granules
Advanced Air-Driven Collection: Seamless and hygienic material transport
Superior Industrial Automation: Minimal operator interference for consistent quality

Main Technical Parameter

Device Model	Motor Power	Output	Product Specification
SJP93	55KW	300-400 KG/H	Ø 3-5mm
SJP120	110KW	500-600 KG/H	Ø 3-5mm
SJP135	160KW	800-1200 KG/H	Ø 3-5mm

Product Description

Jwell’s Medical Grade PVC Pelletizing System represents the pinnacle of plastic granulation technology, designed to provide the pharmaceutical and medical device industries with the highest quality raw materials.

Advanced Extrusion Technology: The system centers around a high-performance parallel twin-screw extruder, specifically optimized for the unique rheological properties of medical-grade PVC. This ensures a gentle yet thorough homogenization of the material, preventing degradation and ensuring that the final pellets maintain their required physical and biological properties. The robust power range, from 55KW to 160KW, allows for stable torque across all production scales.

Precision Pelletizing and Cooling: Unlike traditional strand cutting, our auxiliary system utilizes die-face granulation. This results in granules that are exceptionally uniform and “dense,” which is critical for consistent feeding in downstream injection or extrusion processes. Following the cut, the pellets are immediately transported via an air-driven system to a vibration separator. This multi-stage cooling process ensures that every granule is perfectly finished and free of moisture before packaging.

Operational Efficiency and Output: The SJP series offers impressive versatility for manufacturers of various sizes. The SJP93 provides a solid entry point with outputs of 300-400 KG/H, while the flagship SJP135 reaches industrial capacities of up to 1200 KG/H. All models produce a standard 3-5mm specification, ideal for a wide array of medical molding applications including tube sets, blood bags, and sterile packaging.
