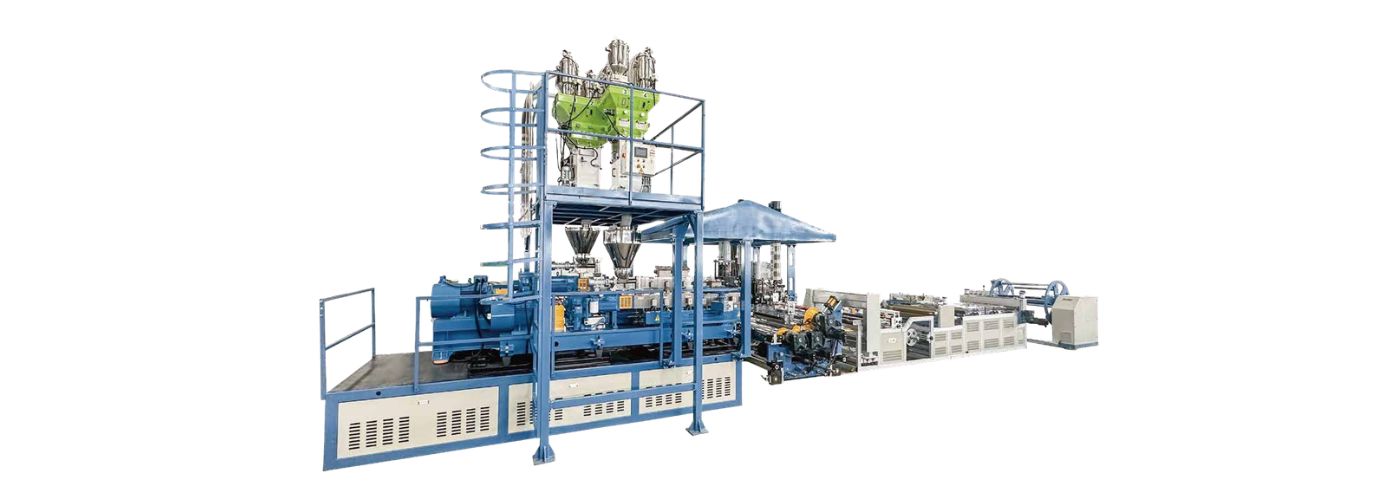

Jwell Twin-Screw Dryer-Free Vented PET/PLA Sheet Extrusion Line
Key Selling Points
- Dryer-free processing eliminates a separate pre-drying step
- Powerful venting removes moisture and volatiles
- Smooth, uniform sheets with reduced bubble risk
- Scalable output from 450 to 1,000 kg/h
Main Technical Parameter
| Model | Output | Installed Power | Dimensions (LxWxH) | Sheet Thickness |
| JW85&36/40-1000 | 500 kg/h | 518 kW | 24 x 7 x 5 m | 0.15-1.5 mm |
| JW75/40-1000 | 450 kg/h | 645 kW | 41 x 8 x 6.5 m | 0.15-1.5 mm |
| JW95&52/44-1500 | 800-1,000 kg/h | 958 kW | Not provided | 0.15-1.5 mm |

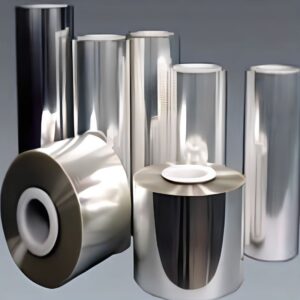

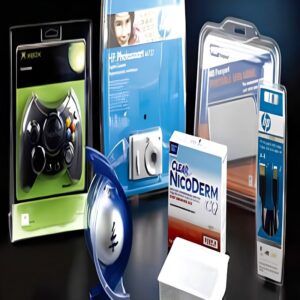

Application Scenarios
Product Description

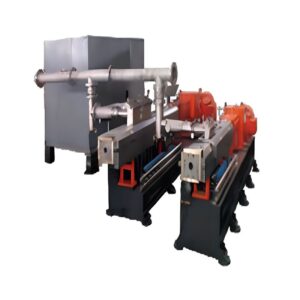

The Jwell Twin-Screw Dryer-Free Vented PET/PLA Sheet Extrusion Line processes PET and PLA materials without a separate pre-drying stage. Its twin-screw system combines efficient plasticization with powerful venting to remove moisture and volatile components from the melt, simplifying raw-material preparation while supporting stable continuous sheet production.
The optimized venting structure helps produce sheets with uniform density, a smooth surface and reduced risk of bubbles or moisture-related defects. An intelligent control system precisely manages temperature, pressure and other process parameters, allowing operators to adjust production conditions and change product specifications efficiently. Available models cover reference outputs from 450 to 1,000 kg/h, sheet thicknesses from 0.15 to 1.5 mm and product widths from 800 to 1,050 mm for packaging, thermoforming and sustainable sheet applications.
