Jwell LFT / FRP Continuous Fiber-Reinforced Composite Production Line
Key Selling Points
- Suitable for producing continuous fiber-reinforced thermoplastic composite materials
- Compatible with multiple fibers: GF, CF, AF, UHMW-PE, BF
- Supports a broad range of resins: PET, ABS, PP, PC, PA, PPS, POM
- Produces materials with high strength, high toughness, and recyclability
- Designed for demanding applications in high-end industrial sectors
- Stable and efficient production with up to 12 m/min line speed
Main Technical Parameter
|
Model
|
Max Speed
|
Product Thickness
|
Product Width
|
|---|---|---|---|
|
JWS-1800
|
12 m/min
|
0.1–0.8 mm
|
1200–1600 mm
|
|
JWS-3000
|
12 m/min
|
0.1–0.8 mm
|
2000–2500 mm
|
Application Scenarios
Product Description

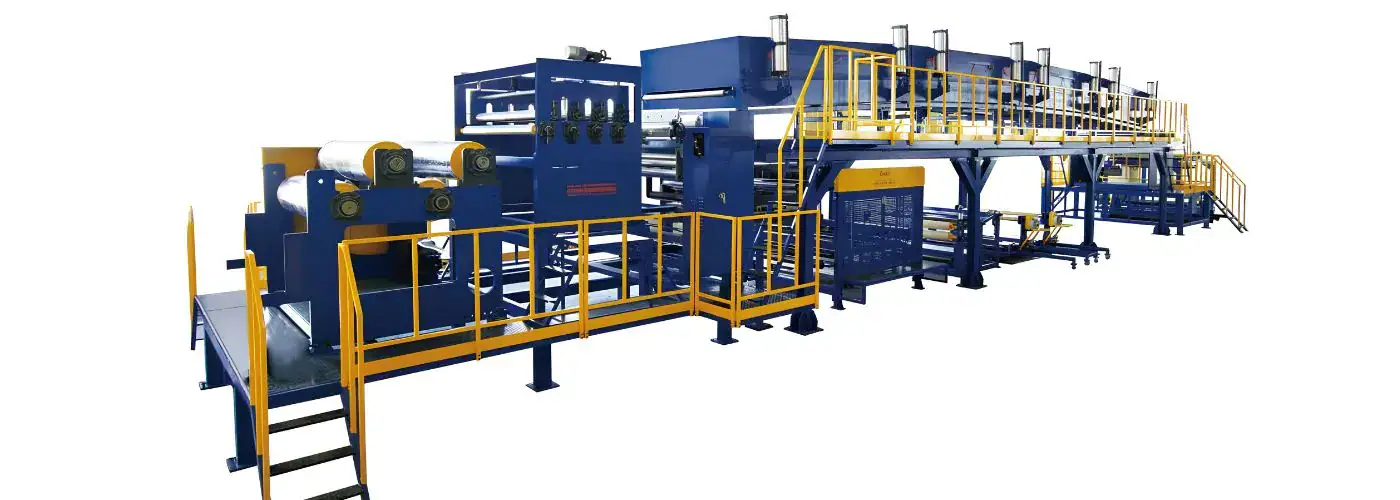

Jwell LFTFRP Continuous Fiber-Reinforced Composite Production Line is a high-performance manufacturing solution designed for producing advanced continuous fiber-reinforced thermoplastic composite sheets. By combining continuous reinforcing fibers with thermoplastic or thermosetting resins through a specialized impregnation process, the line delivers composite materials with high strength, high toughness, and recyclability, meeting the growing demand for lightweight, durable, and environmentally friendly materials across modern industries.
This production line is compatible with a wide range of reinforcing fibers, including glass fiber (GF), carbon fiber (CF), aramid fiber (AF), ultra-high molecular weight polyethylene fiber (UHMW-PE), and basalt fiber (BF). It also supports commonly used thermoplastic resin matrices such as PET, ABS, PP, PC, PA, PPS, and POM, enabling manufacturers to tailor material performance to different application requirements. Through precise extrusion and drawing processes, the line ensures consistent impregnation and stable production of high-quality composite products.
With a maximum production speed of 12 m/min, the Jwell LFTFRP line offers efficient output while maintaining excellent product quality. It is suitable for producing composite sheets with a thickness range of 0.1–0.8 mm and widths tailored to different model configurations, making it a flexible choice for various manufacturing needs.
These advanced composite materials are widely used in industries that require lightweight yet strong structural solutions, including military, aerospace, marine, automotive lightweighting, electronics, wind energy, construction, medical, and sports & leisure applications.
