Jwell Precision Single Screw Extrusion Line Extracorporeal Blood Tube (DialysisTube) and Blood Transfusion Tube
Key Selling Points
-
Blood & Transfusion Tube Application: Dialysis (blood circuit) and transfusion tubing
-
High Output Range: 25–150 kg/h (JWS45 / JWS65 / JWS75)
-
Clean-Room Compliance: 100,000-grade stainless steel construction
-
Servo-Driven Precision: Mitsubishi servo motor + imported gearbox for torque stability
-
Optional Online Gauge: Precision outer diameter measurement
-
Turnkey Support: Process assistance, training, and after-sales service
Main Technical Parameter
| Model | Output(KG/H) | Dimension L*W*H (mm) |
|---|---|---|
| JWS45 | 25 | 9500×2500×1780 |
| JWS65 | 60–80 | 12600×3000×1780 |
| JWS75 | 100–150 | 14000×3000×1780 |
Product Description
Jwell’s Precision Single Screw Extrusion Line is purpose-built for high-volume manufacturing of extracorporeal blood tubes (dialysis circuits) and blood transfusion tubes used in critical care and renal therapy.

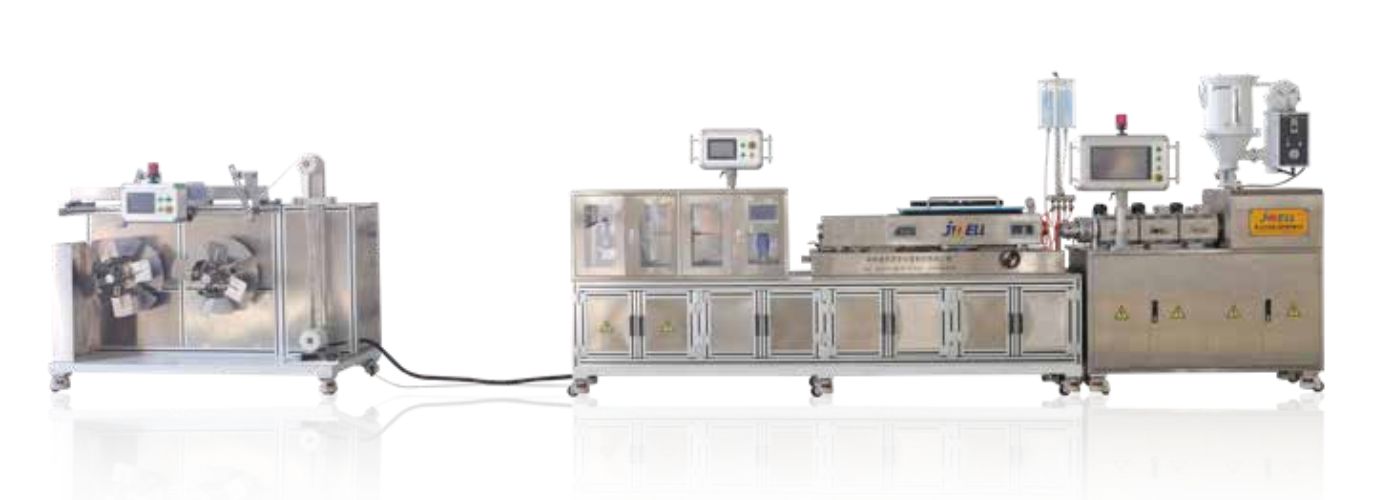

Specialized Medical Tubing Production: Designed for hemodialysis consumables with stringent safety and quality standards, this line ensures consistent wall thickness, surface finish, and dimensional accuracy. The system includes an auto loader, high-output precision extruder, dedicated medical die, lengthened vacuum forming cooling tank, servo haul-off/cutter, and conveyor.
Performance & Control: Speed control uses Japan Mitsubishi servo motors with imported reducers, allowing stable torque and traction across different tube diameters (pump lines, main lines, branch lines). Output ranges from 25 kg/h (JWS45) to 150 kg/h (JWS75) with compact footprints starting at L9500×W2500×H1780 mm.
Clean-Room Ready: The fully stainless steel exterior meets 100,000-grade clean workshop standards, making it suitable for medical device manufacturers. Optional online precision outer diameter gauge enables real-time quality monitoring.
Complete Service Package: Jwell provides full technical support, operation training, and prompt after-sales service tailored to specific customer requirements for dialysis and transfusion tubing applications worldwide.
