Jwell Single-screw Extrusion Production Line For Respiratory Catheter And Infusion Tube

Key Selling Points

Multi-Product Range: Nasal oxygen cannulas, tracheal intubation, infusion tubes
Precision Tolerance: +/-0.01mm dimensional accuracy for critical applications
Wide Diameter Range: 1.5mm to 20mm outer diameter capability
Flexible Wall Thickness: 0.1mm to 3.0mm wall control
SUS316 Contact Surface: Stainless steel construction for sterility
Complete Line Configuration: Extruder, die, cooling tank, haul-off, servo cutter
Double & Multi-Cavity Tubes: Support complex catheter configurations
Customizable Configuration: Contact surface materials tailored to requirements

Main Technical Parameter

Model	Output(KG/H)	DimensionLWH (mm)
JWS25	2–5	7500×2000×1780
JWS45	15–40	9500×2500×1780
JWS55	20–55	10500×2500×1780
JWS65	40–90	12600×3000×1780

Product Description

Jwell’s Single-Screw Extrusion Production Line for Respiratory Catheters and Infusion Tubes delivers precision manufacturing for medical tubing applications, including nasal oxygen cannulas, tracheal intubation tubes, infusion tubes, and multi-cavity catheter configurations.

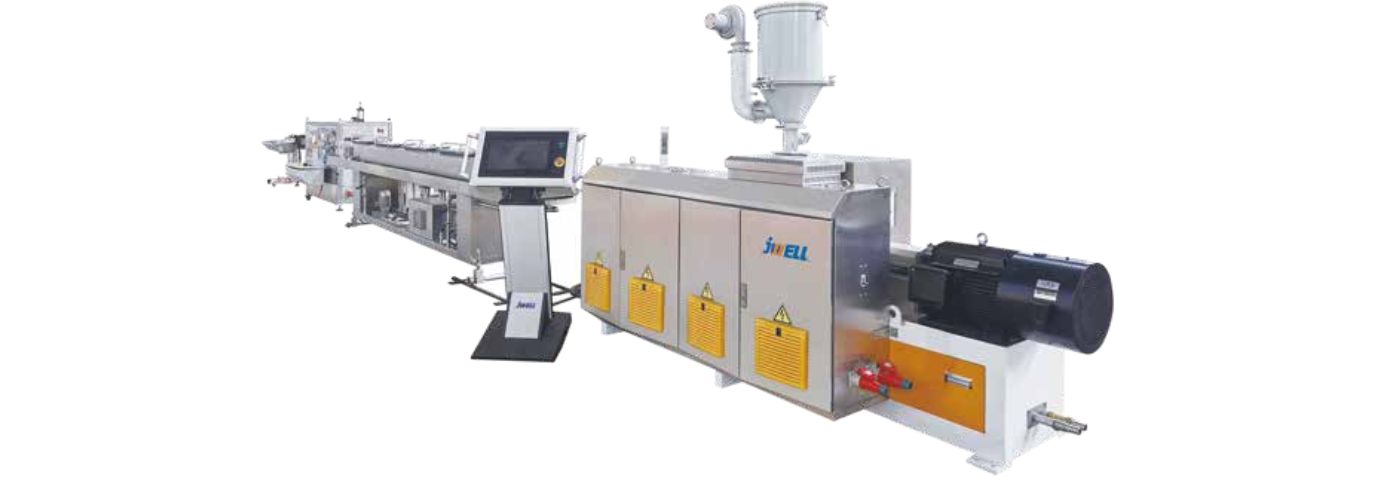

Complete System Integration: The production line combines single-screw extrusion main machine, precision extrusion die, vacuum forming cooling tank, belt haul-off system, and servo cutter. Optional conveyor integration available. All product contact surfaces feature SUS316 stainless steel construction for medical-grade sterility.

Material & Precision Excellence: The system processes medical-grade PVC and TPU materials. It achieves outer diameter control from 1.5mm to 20mm with wall thickness from 0.1mm to 3.0mm. Dimensional tolerance reaches +/-0.01mm precision for critical respiratory and infusion applications.

Scalable Production Options: Four models deliver output from 2-5 KG/H (JWS25 at 7500×2000×1780mm) to 40-90 KG/H (JWS65 at 12600×3000×1780mm), providing flexible capacity matching for various production requirements.
