PVC Conical Twin Screw Extruder Hot-cut Granulation
As the global plastics processing industry pursues high efficiency and environmental protection, the PVC conical twin screw extruder hot-cut granulation process has become an ideal choice for PVC raw material processing due to its uniform granulation, efficient production and low energy consumption. With the help of process innovation, JWELL’s PVC twin screw extruder hot-cut granulation production line cleverly combines the powerful mixing of the conical twin screw extruder with the precise control of hot-cut granulation, achieving high-quality continuous output of Pvc granules, and more flexible online adjustment of granulation parameters, reducing production stagnation and resource loss caused by product index adjustments.

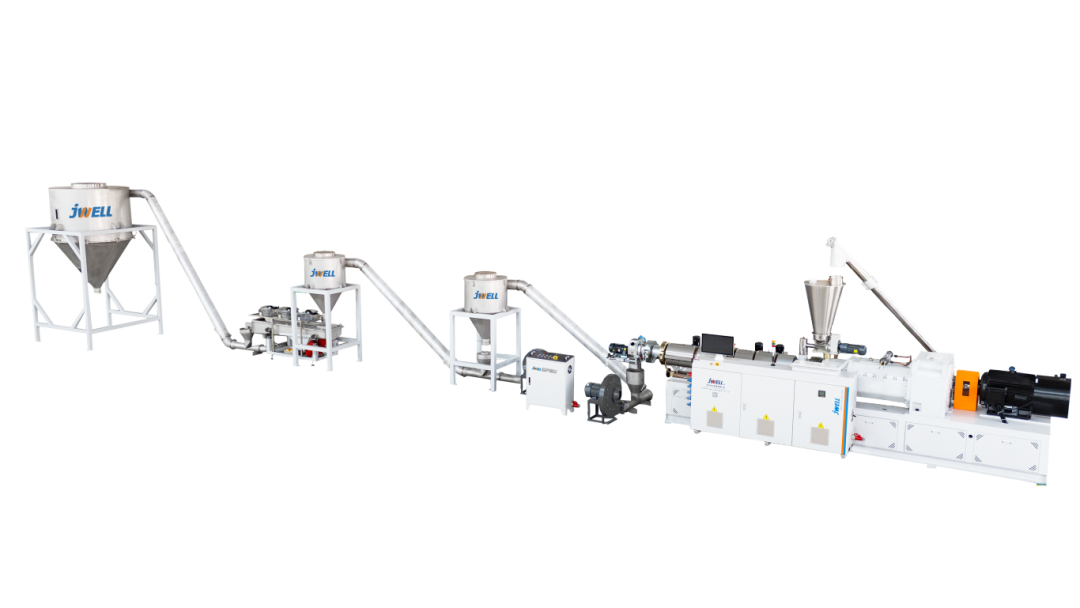

Jwell Machinery Conical Twin Screw Extruder Hot-cut Granulation Extrusion line
Production Process

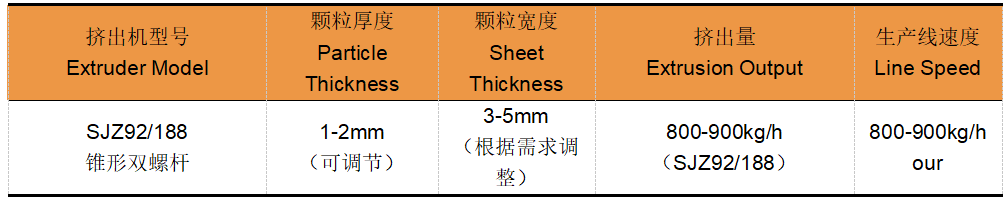

Main Technical Parameters
1.High Efficiency Extrusion System

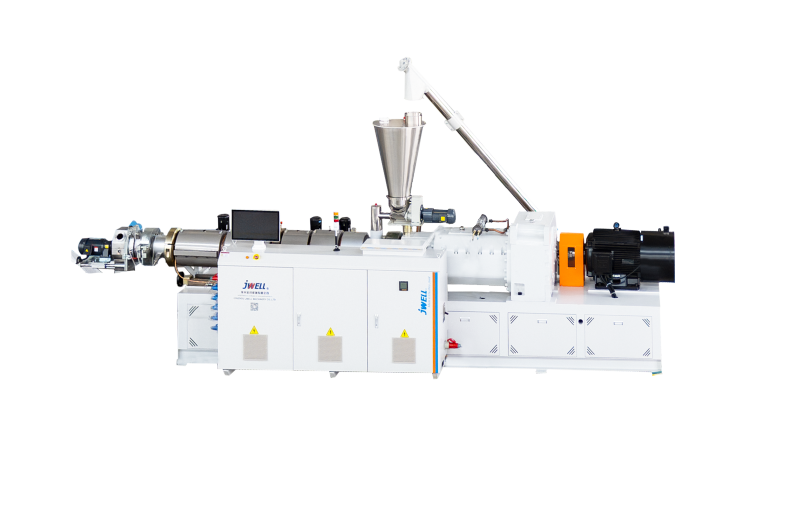

The 92/188 conical twin-screw extruder is equipped with a special screw design to ensure that the PVC powder is fully plasticized and mixed, and the extrusion is stable and efficient.
The barrel adopts cast aluminum heating and air-cooling oil-cooling temperature control. The temperature control accuracy is ±1℃, ensuring the forming quality of the granules.
Extrusion capacity: 800-900kg/h（SJZ92/188）
2.Precision Hot Cutting Process

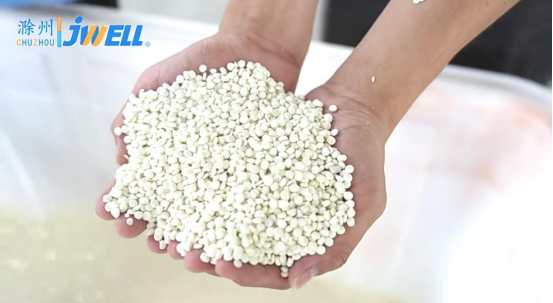

Better particle quality, adapted to PVC characteristics
Higher production efficiency, matching the high capacity of the conical twin extruder, suitable for large-scale continuous production, die surface hot cutting through “multi-channel simultaneous cutting” cutting speed can be increased synchronously with the extrusion volume (tool speed can reach 1000-3000r/min)
Able to realize continuous “extrusion – cutting – cooling”, increasing production capacity by more than 30%
The die surface hot cutting is done directly in the molten state, and cooling only needs to be done on the particles (rather than the entire strip), which reduces energy consumption by about 20%-30%, and no waste is generated by the strip pulling. Effectively reducing material waste and energy consumption.
Real-time linkage between cutting and extrusion speed, stronger process stability, convenient installation and reduced operation difficulty.
3.Three-stage High-efficiency Air Delivery
The three-stage air conveying system is adapted to the characteristics of PVC particles. It is a key system for particle conveying in the PVC cone double hot-cut granulation production line. It connects all links of granulation through the “three-stage graded wind conveying” method.
Quick export and initial cooling can effectively avoid particle breakage.
Secondary air delivery: semi-dry particles are sent to the spring vibrating screen at a medium speed to ensure uniform delivery.
Three-stage air conveying: Use a stable wind speed to transport the cooled and dried finished particles to the storage bin to reduce dust and breakage.

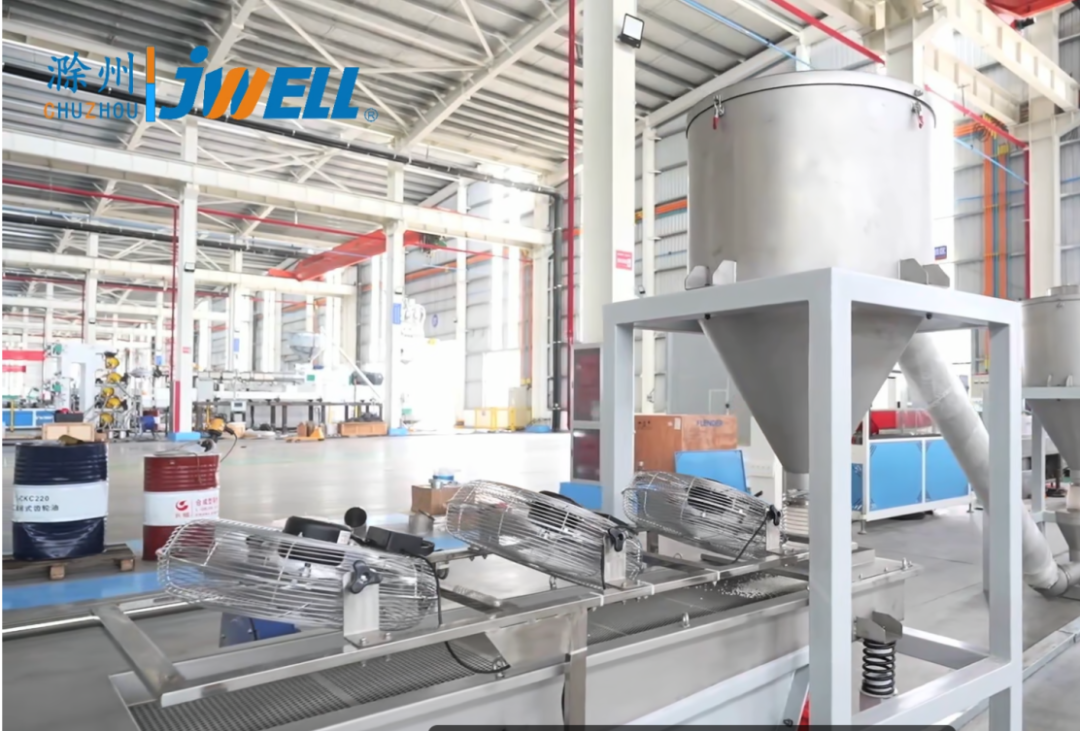

4.Spring Vibrating Screen
The spring vibrating screen has excellent shock absorption effect and more stable operation. Compared with the rigidly connected vibrating screen, the spring vibrating screen does not require complicated foundation reinforcement and is more flexible to install. It is especially suitable for scenes with multiple equipment linkage in the workshop (such as connecting with the air conveying system in the PVC granulation production line).
Multi-layer screen design, high screening accuracy. Suitable for a variety of material states, whether it is dry or wet particles, a mixture of powder and particles, or materials containing a small amount of impurities.
Simple structure, low maintenance cost, low energy consumption and low operating noise.Add cooling fans, screening is faster, no network clogging, equipment is durable, and the precision is high – high temperature material screening, small investment for big returns!
Choose JWELL, Choose Excellence
As a leading enterprise in China’s plastic extrusion industry, JWELL Machinery drives industry development through global layout and technological innovation. At present, the company has built an industrial matrix of eight modern production bases and more
than 30 professional companies, forming a full-chain system covering research and development, manufacturing,and services. With stable and reliable equipment performance, mature and superb process technology, and high-eficiency and low-consumption energy-saving advantages, our products are sold in more than 120 countries and regions, making us a trusted plastic extrusion solution provider for global customers.
JWELL Machinery always takes technological innovation as the engine and customer needs as the guide, deeply cultivating the plastic extrusion field. Whether in traditional plastic processing scenarios or emerging material application fields, we can provide you with adaptable intelligent and professional production lines.
Chuzhou JWELL welcomes all new and regular customers to inquire. We will customize the exclusive plastic extrusion scheme for you with professional team and high-quality service.
