Small-diameter single-wall corrugated pipe
Small-diameter single-wall corrugated pipe: refers to a plastic pipe with a continuous corrugated structure on the inner and outer walls, but only one layer of wall. The corrugated desigu gives the pipe excellent flexibility bendability, anti-flattening, elasticity, and good impact and twist resistance.

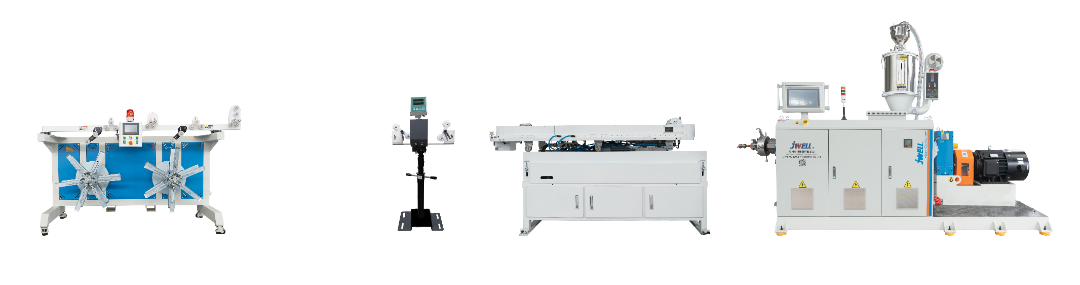

Chuzhou Jwell Machinery PA/PP/PE small diameter single wall corrugated pipe extrusion line

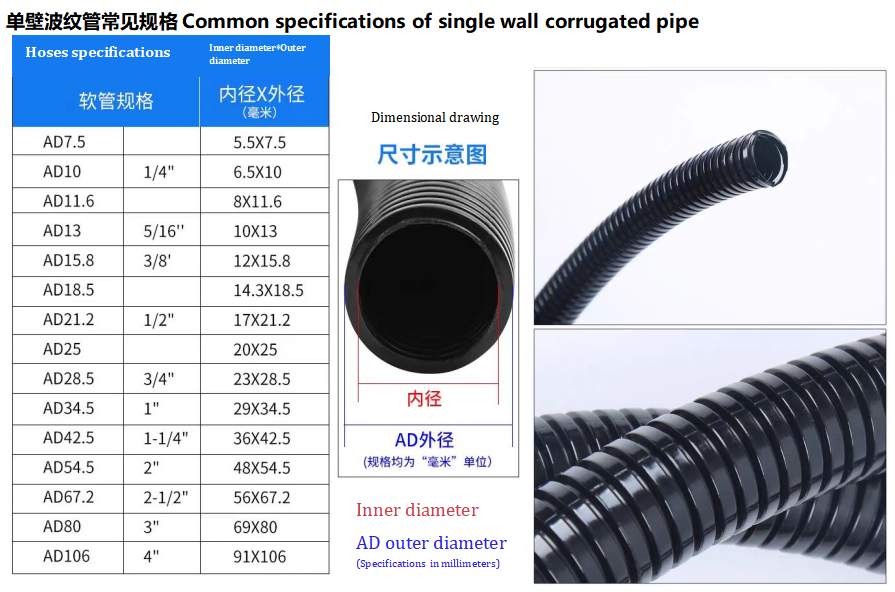

Product specification range: 10-50mm
Product line speed range: 3-30m/min
1.Extruder
65/30 high-efficiency single-screw extruder with Flender brand reducer, efficient and stable.

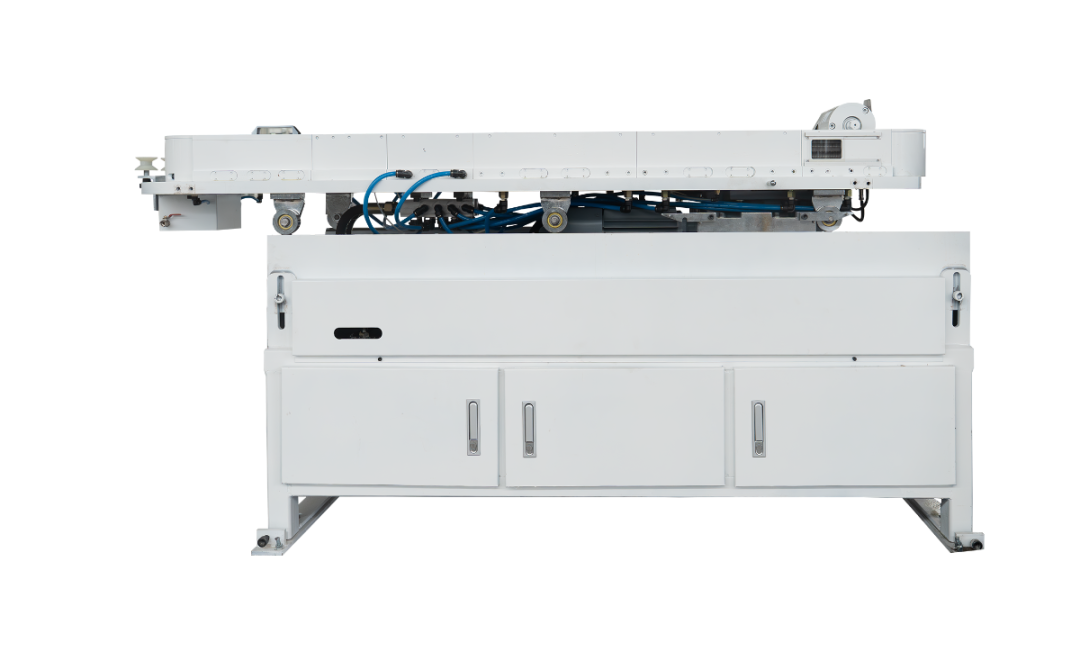

2.Forming machine
Horizontal water cooling structure achieves better cooling effect and faster speed. At the same time, the multi-specification shared module design greatly improves production efficiency.

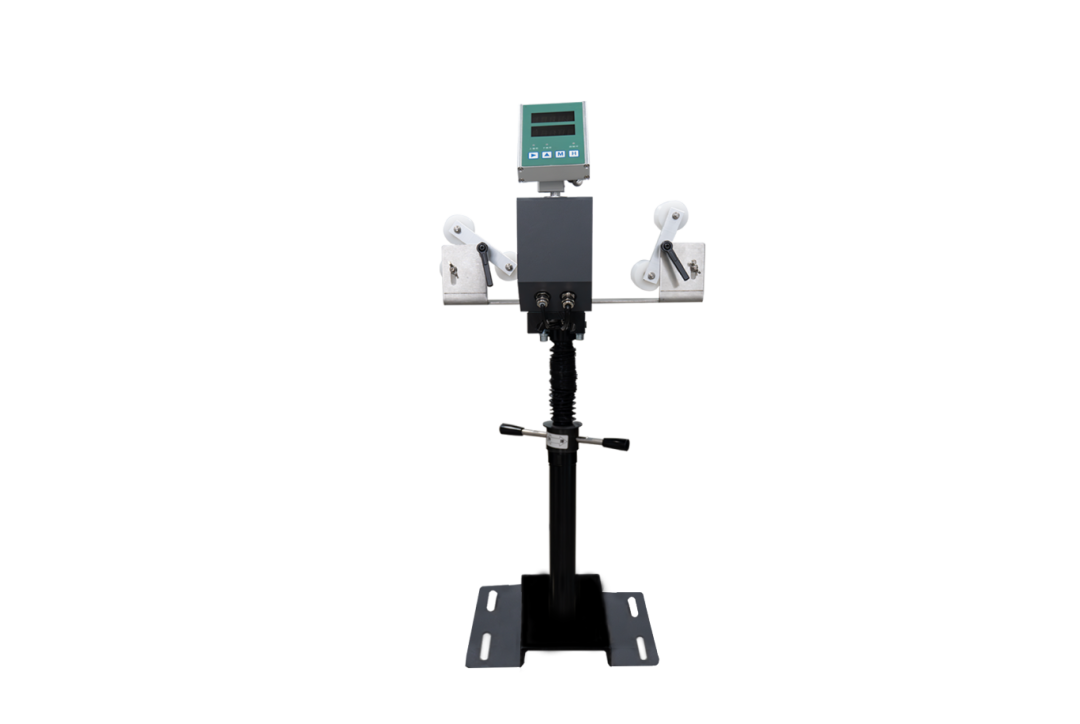

3. Diameter gauge
Using green LED parallel light source and CCD technology, it can measure the diameter of various pipe products more accurately and conveniently.

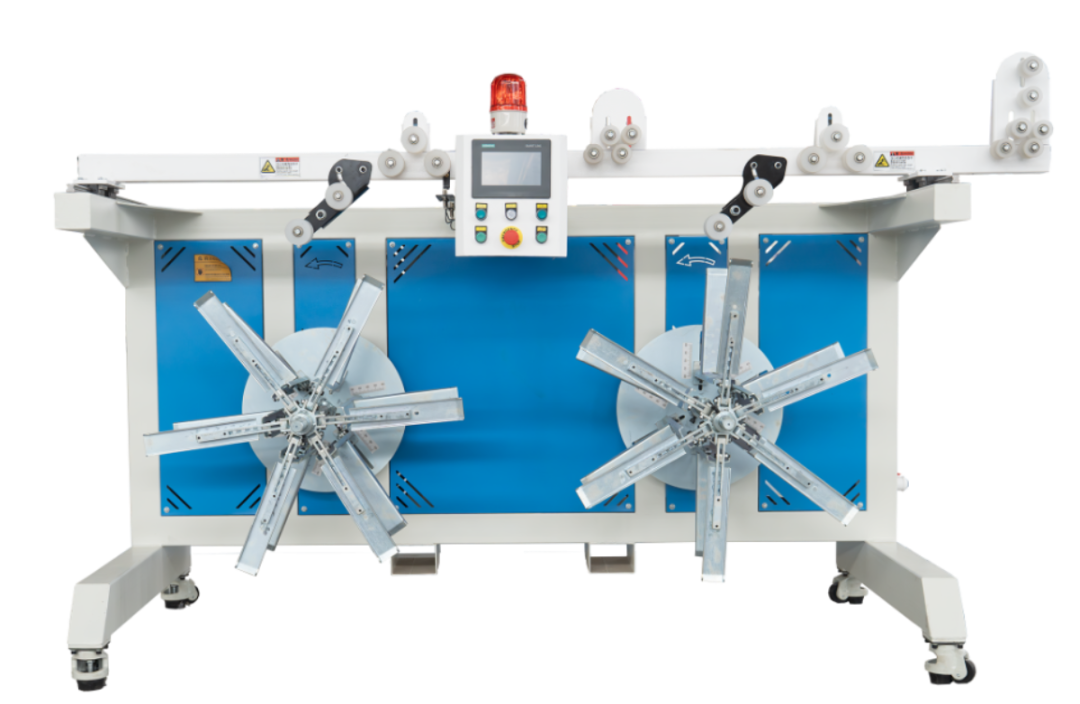

4. Winder
High-speed servo double-station winder, neatly arranged tubes, maximum inner diameter of winding can reach 700m.
Application of single wall corrugated pipe
Thanks to the excellent properties of PA/PP /PE materials and the structural advantages of corrugated pipes, PA/PP /PE single-wall corrugated pipes are widely used in many fields, especially in situations where protection, guidance, wear resistance, temperature resistance, chemical corrosion resistance and flexible bending are required:
1.Automotive industry
Wire harness protection: One of the most core application areas. Protect cable harnesses in engine compartment, chassis, doors, seats and other parts from abrasion, cutting, high temperature, oil, liquid (water, coolant, brake fluid) and chemicals. its flexibility facilitates wiring in small spaces.
2.Mechanical engineering and automation equipment
Cable protection: Protect power cables, control cables, data cables and hoses in machine tools, robots, automated production lines and conveying systems to prevent corrosion by metal chips, coolants, lubricants, and mechanical wear, impact, and drag damage.
- Pneumatic pipelines: Protect and control compressed air pipelines
- Hydraulic pipelines (low pressure): Protect low-pressure hydraulic pipelines in specific applications
- Moving parts protection: Used for parts that need to be bent and moved repeatedly
3.Electrical and Electronics
- Protect cables inside switch cabinets and control cabinets
- Protect building electrical wiring (must meet flame retardant requirements)
- Arrange and protect cables inside precision instruments
4.Construction machinery and agricultural machinery
Protect cables, hydraulic pipes, and air pipes exposed to harsh environments (mud, sand, water, oil, and severe vibration)
5.Rail transit
Protection and arrangement of cables and pipes in locomotives and carriages
6.Other industrial fields
- Food and beverage machinery (must meet food grade requirements)
- Packaging machinery
- Environmental protection equipment
- Lighting equipment (such as stage lighting cable protection)
Choose JWELL, Choose Excellence
As a leading enterprise in China’s plastic extrusion industry, JWELL Machinery drives industry development through global layout and technological innovation. At present, the company has built an industrial matrix of eight modern production bases and more than 30 professional companies, forming a full-chain system covering research and development, manufacturing, and services. With stable and reliable equipment performance, mature and superb process technology, and high-eficiency and low-consumption energy-saving advantages, our products are sold in more than 120 countries and regions, making us a trusted plastic extrusion solution provider for global customers.
JWELL Machinery always takes technological innovation as the engine and customer needs as the guide, deeply cultivating the plastic extrusion field. Whether in traditional plastic processing scenarios or emerging material application fields, we can provide you with adaptable intelligent and professional production lines.
Chuzhou JWELL welcomes all new and regular customers to inquire. We will customize the exclusive plastic extrusion scheme for you with professional team and high-quality service.
