Jwell Aseptic Packaging Blow-Fill-Seal (BFS) System

Key Selling Points

Blow-Fill-Seal Technology: Integrated blow molding, filling, and sealing
Aseptic Packaging Solution: Single sterile state process
Pharmaceutical Grade Production: PE and PP material processing
Low Contamination Rate: Enhanced product safety standards
Cost-Effective Manufacturing: Reduced production and management costs
High Output Capacity: Up to 48000 pcs/h with double mold
Multi-Application Range: Eye drops, aerosols, inhalers, injections
Continuous Operation: Fast cycle production without interruption

Main Technical Parameter

Tple\Model	JW-BFS-C15S-I/II		JW-BFS-C25S-I/II		JW-BFS-C40S-I/II		JW-BFS-C60S-I/II
Max. capacity (ml)	2ml	10ml	2ml	10ml	2ml	10ml	2ml	10ml
Mould Cavity	15	10	25	15	40	25	60	40
Max. container width (mm)	10mm	15mm	10mm	15mm	10mm	15mm	10mm	15mm
Output/hour I-Single Mould	6000(9s) 6750(8s)	4000(9s) 4500(8s)	10000(9s) 11250(8s)	6000(9s) 6750(8s)	16000(9s) 18000(8s)	10000(9s) 11250(8s)	21600(10s) 24000(9s)	14400(10s) 16000(9s)
Output/hour II-Double Mould	12000(9s)13500(8s)	8000(9s)9000(8s)	20000(9s)22500(8s)	12000(9s) 13500(8s)	32000(9s) 36000(8s)	20000(9s) 22500(8s)	43200(10s) 48000(9s)	28800(10s) 32000(9s)
Price ($)	15-30W	15-30W	15-30W	15-30W	15-30W	15-30W	15-30W	15-30W

Product Description

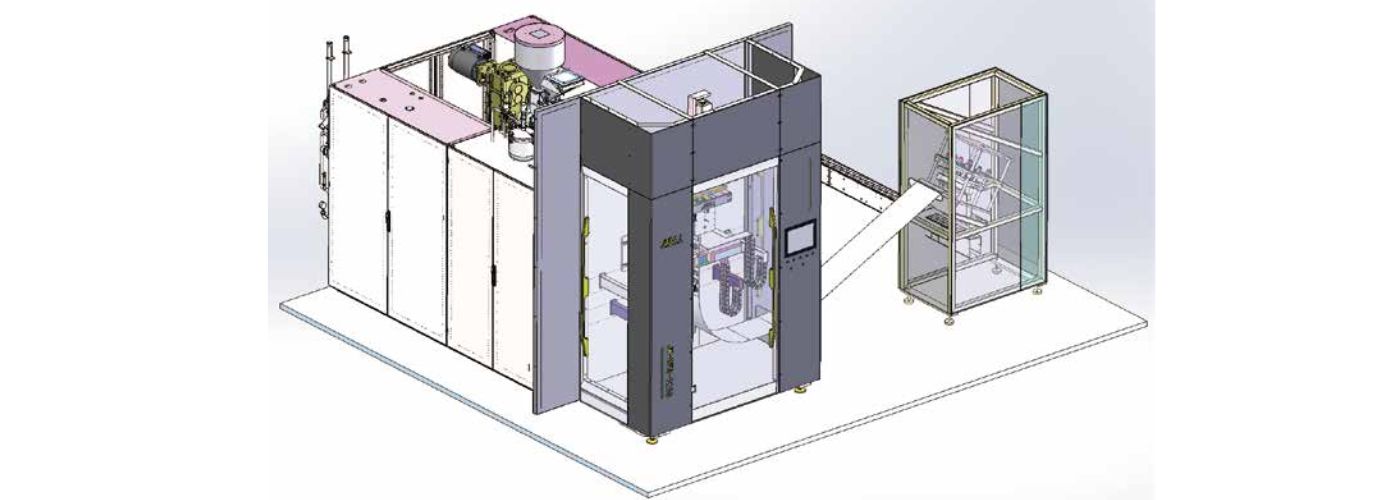

Jwell’s Aseptic Packaging Blow-Fill-Seal (BFS) System represents advanced pharmaceutical manufacturing technology that integrates blow molding, filling, and sealing of plastic containers in a single sterile state process, effectively ensuring the safety and quality of medicine use.

Integrated Packaging Technology: The BFS machine adopts specialized packaging-free technology with continuous operation, converting medical polyethylene (PE) or polypropylene (PP) particles into containers through fully automatic filling and sealing processes. This eliminates multiple production steps and reduces contamination risks inherent in traditional manufacturing.

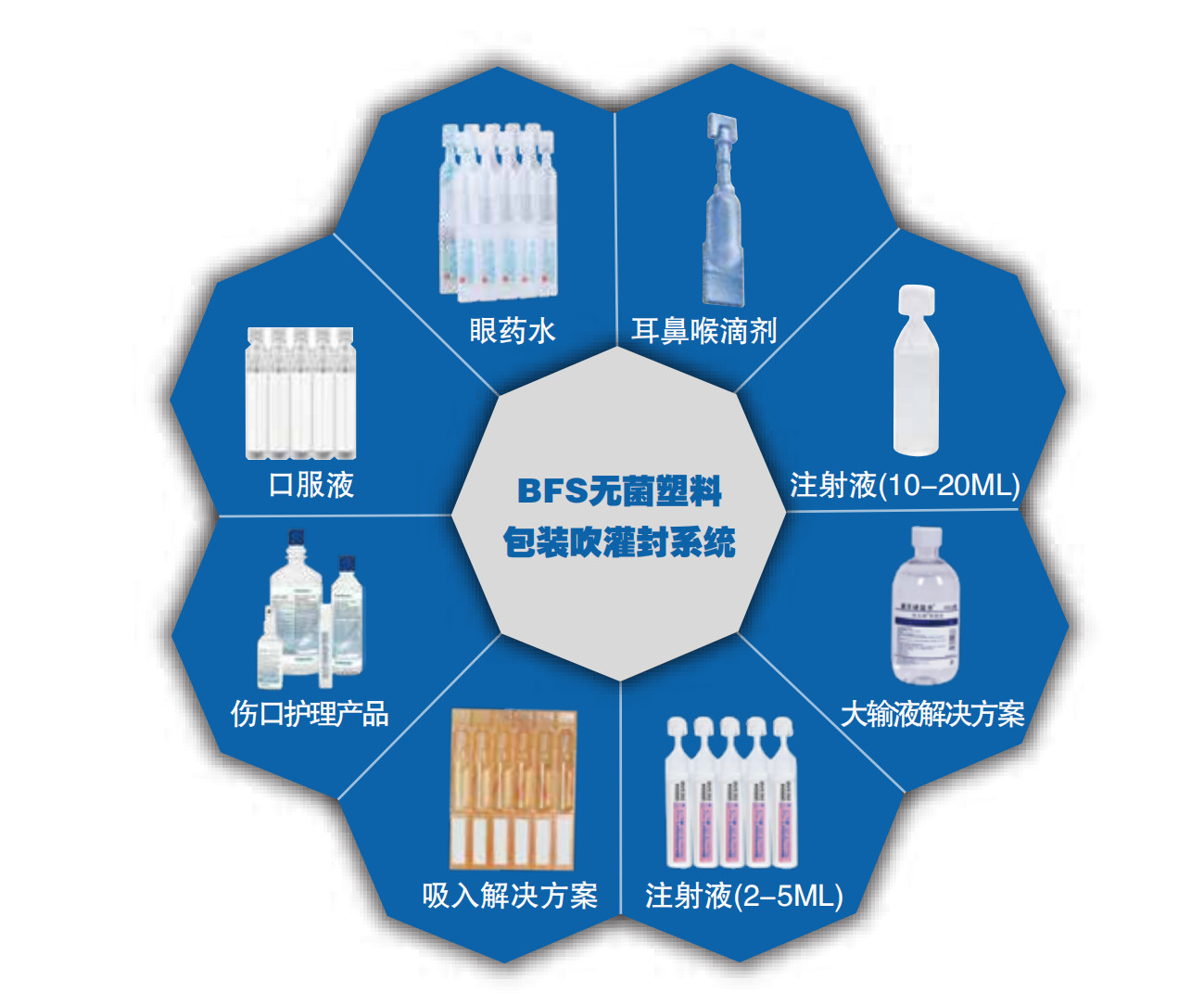

Pharmaceutical Industry Applications: This equipment is widely used for producing sterile pharmaceutical containers including eye drops, aerosols, inhalers, injections, disinfectants, and large infusion bags. The single-pass sterile process ensures consistent product quality while meeting stringent pharmaceutical industry requirements.

Versatile Industrial Use: Beyond pharmaceuticals, the BFS system serves aseptic packaging needs in the food and chemical industries, providing manufacturers with flexible solutions for various container sizes and applications.

High-Efficiency Model Range: The JW-BFS series offers four models with outputs from 6000 to 48000 pieces per hour. Single mold configurations include C15S (6000-6750 pcs/h), C25S (10000-11250 pcs/h), C40S (16000-18000 pcs/h), and C60S (21600-24000 pcs/h). Double mold configurations double output capacity up to 48000 pcs/h, enabling high-volume production while maintaining aseptic integrity and minimal cross contamination rates.
