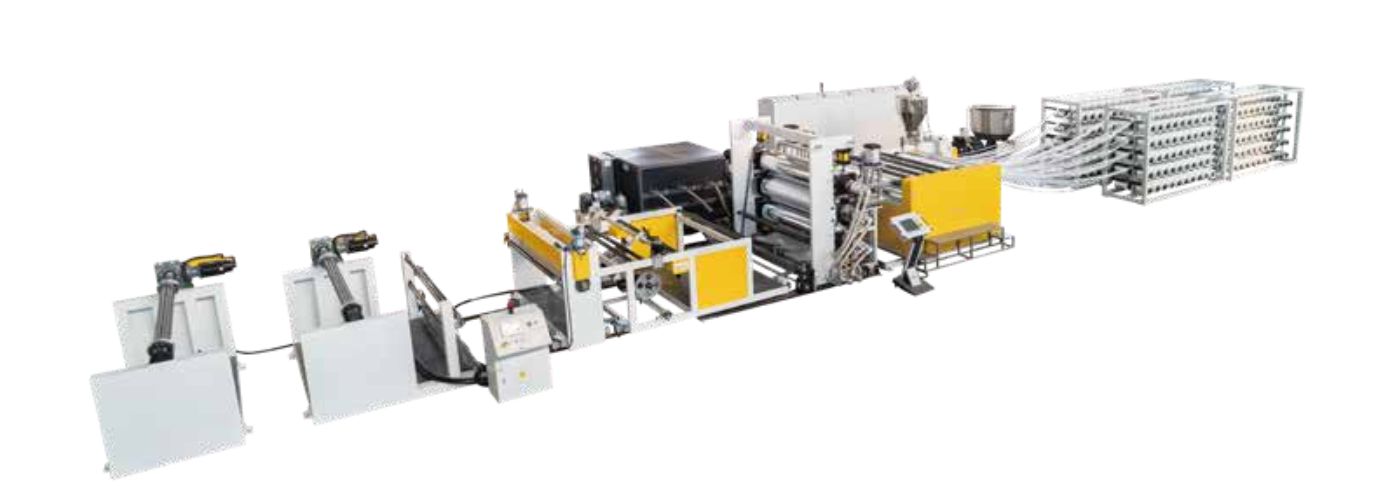

Jwell CFRT Medical Composite Material Production Line

Key Selling Points

X-ray full transmittance
Medical-grade thermoplastic composites
Parallel-aligned continuous fibers
40%-70% fiber content range
Orthopedic device compatibility
Rehabilitation product suitability
No fiber weaving design
Uniform resin impregnation

Main Technical Parameter

Product Thickness	Product Width	Product Areal Density	Fiber Content	Pulling Speed
0.1~0.45mm	60~1300mm	100~650gsm	40%~70%	5~25m/min

Product Description

The CFRTP Medical Composite Production Line is a specialized manufacturing system engineered to produce high-performance unidirectional tape materials designed specifically for medical device applications. This production line transforms continuous fibers into flat, resin-impregnated composite sheets through an advanced melt impregnation process.

Precision Medical-Grade Output: The production line delivers CFRTP unidirectional tapes with thicknesses ranging from 0.1mm to 0.45mm, widths from 60mm to 1300mm, and area densities between 100gsm and 650gsm. With fiber content adjustable from 40% to 70%, the system provides exceptional flexibility to meet diverse medical device specifications. The traction speed of 5-25m/min enables efficient throughput while maintaining consistent quality throughout the manufacturing process.

Advanced Fiber Technology: Unlike woven composites, this unidirectional tape features continuously aligned fibers arranged in parallel formation without weaving, maximizing fiber efficiency and mechanical performance. The thermoplastic resin melt impregnation process ensures complete wetting of each fiber bundle, creating a void-free, uniform matrix structure essential for medical applications requiring reliability and consistency.

Medical Device Applications: The unique combination of X-ray full transmittance and superior mechanical properties makes these CFRTP tapes ideal for manufacturing mobile X-ray inspection platforms, orthopedic implants and surgical instruments, organ transplantation support devices, prostheses, and orthotic rehabilitation products. The radiolucent nature of CFRTP composites enables clear imaging without artifact interference, while the high strength-to-weight ratio supports durable, lightweight medical device construction.

Scalable Production Capability: Designed for continuous industrial operation, this production line offers robust engineering suitable for medical device manufacturing standards, providing manufacturers with a reliable, high-quality solution for producing advanced thermoplastic composite materials that meet the stringent requirements of the healthcare industry.
