Jwell Engineering Plastics Pelletizing Series
Key Selling Points
- High-precision engineering plastic modification
- Superior shearing and kneading action
- Agglomeration-free glass fiber dispersion
- Uniform mineral and additive distribution
- Balanced mechanical and aesthetic properties
- Versatile reinforcement and toughening capabilities
- Advanced flame retardancy and wear resistance
- Customizable high-end material formulation
- Optimal heat and chemical resistance
Main Technical Parameter
| Model | L/D | Speed
rpm |
Capacity range
Kg/hr |
Price（$） |
| CJWS52
|
36-52 | 600
900 |
250-400
400-800 |
3w
4w |
| CJWH65 | 36-52 | 600
900 |
400-800
500-1100 |
5.8w
6.5w |
| CJWH75 | 36-52 | 600
900 |
500-1100
800-1600 |
6w
7.5w |
| CJWS65 | 36-52 | 600
900 |
500-1000
700-1400 |
7w
8w |
| CJWS75 | 36-52 | 600
900 |
700-1400
1000-2000 |
7.8w
9w |
Product Description

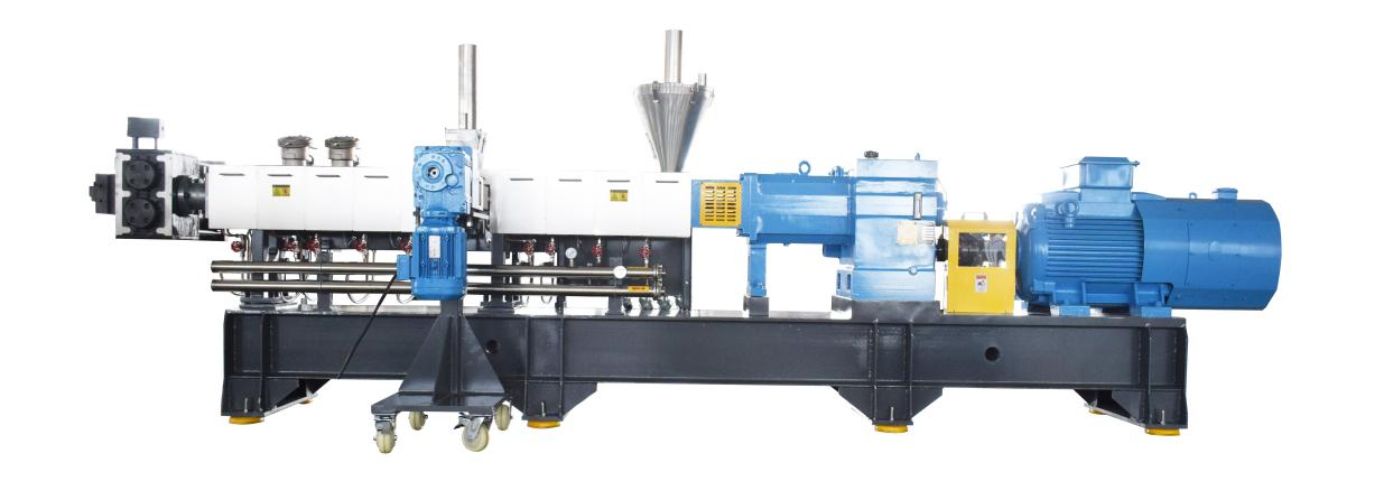

The Engineering Plastics Pelletizing Series is a specialized compounding solution designed for the rigorous demands of high-performance material modification. This series is engineered to transform base resins such as PA, PC, PBT, PPO, and PPS into advanced engineering composites tailored for the automotive, electronic, and industrial sectors.
Advanced Composite Modification: The core objective of this series is to optimize the physical and chemical properties of base engineering plastics. Through superior shearing and kneading performance, the line ensures that intensive fillers—including glass fibers, mineral powders, flame retardants, and colorants—are dispersed with absolute uniformity. This precision prevents the formation of clumps or “nests,” resulting in finished products with exceptionally balanced mechanical strength, heat resistance, and surface aesthetics. Whether the goal is reinforcement, toughening, or enhancing conductivity, this equipment provides the stability required for high-end customized formulas.
Industrial Reliability and Process Optimization: Built for high-yield performance, the series utilizes high-precision twin-screw extrusion technology to improve processability while reducing overall production costs. The machinery is designed to withstand the abrasive nature of glass fiber reinforcement, maintaining tight tolerances and consistent melt quality throughout continuous operation. With motor speeds reaching 900 RPM and flexible L/D ratios, manufacturers can fine-tune the extrusion process to meet the specific degradation limits and viscosity requirements of various engineering resins.
Scalable High-Output Solutions: This series offers a versatile range of models to accommodate different manufacturing scales. From the compact CJWS52 for specialized batches to the high-capacity CJWS75, these units provide a maximum output of up to 2,000 kg/h. Priced between USD 30,000 and USD 90,000, the Engineering Plastics Pelletizing Series offers a competitive and technologically advanced investment for global manufacturers focused on producing high-yield, high-performance engineering materials.
