Jwell JWP Series Three Machine Integrated Pelletizing Machine

Key Selling Points

Universal Dry Film Compatibility: PP, PE, BOPP, BOPET, BOPA, and PA66
High-Speed Blade Cutting & Forced Feeding System
Wear-Resistant Treated Screw and Barrel
Superior Mixing and Plasticization Performance
Integrated Vacuum Vented Exhaust for vapor and gas removal
High-Torque, Low-Noise Gearbox for stable industrial operation
Uniform, High-Density Pellet Output
Scalable Throughput ranging from 200kg/h to 1500kg/h

Main Technical Parameter

Model	Screw Dia.(mm)	L/D	Screw Speed(rpm)	Installed Power (kw)	Output (kg/h)	Price（$）
JWP90	90	36/1	20-150	75-90	200-350	6.8w-8w
JWP120	120	36/1	20-120	110-132	300-500	9w-10.5w
JWP150	150	36/1	20-100	160-200	450-700	10.8w-12w
JWP180	180	36/1	20-100	250-315	800-1200	13w-15w
JWP200	200	36/1	20-100	280-415	1000-1500	15.8w-23w

Product Description

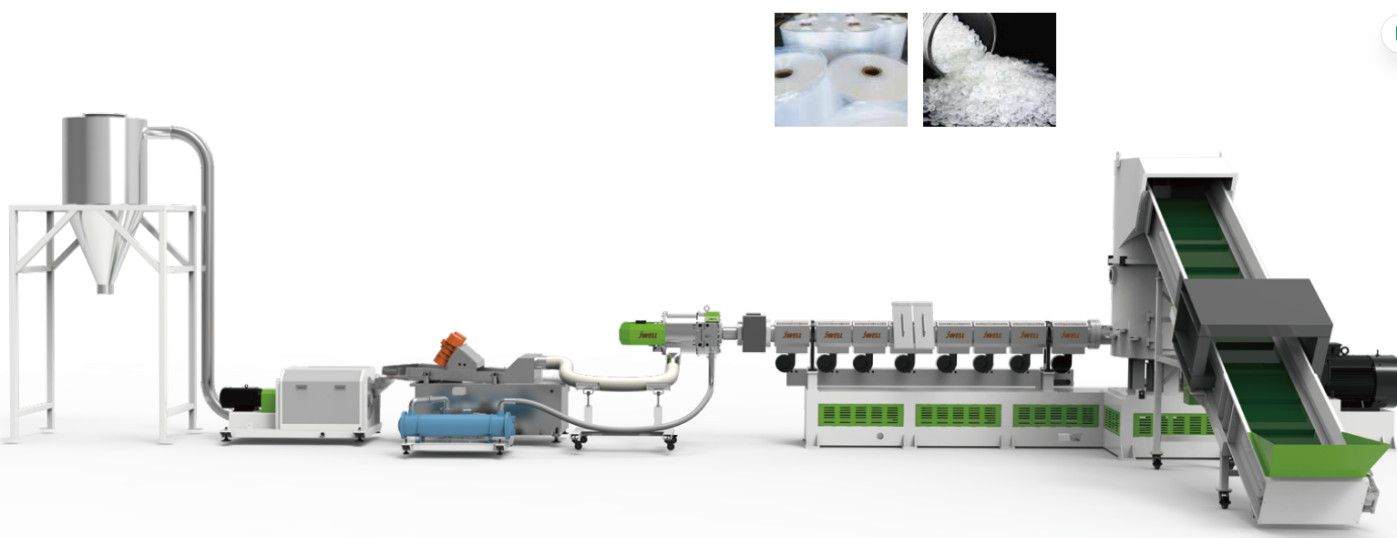

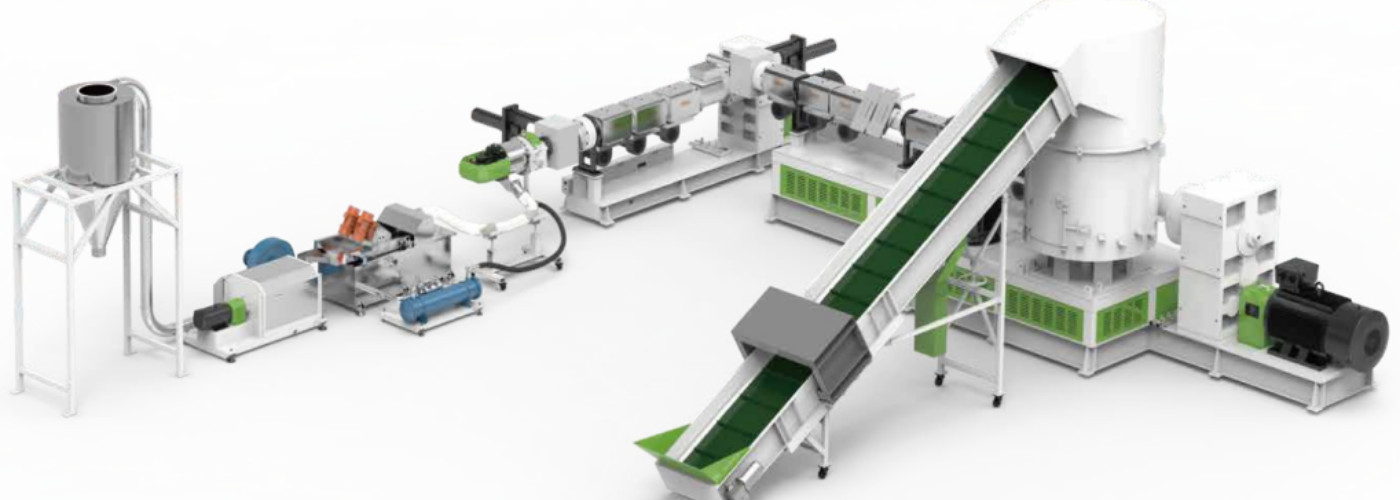

Jwell’s JWP Series Three-Machine Integrated Pelletizing Machine offers a high-efficiency, all-in-one solution for the professional recycling of a wide variety of dry plastic films and technical fibers.

Advanced 3-in-1 Integration: This series streamlines the recycling process by combining high-speed blade cutting, forced feeding, and precision extrusion into a single coordinated unit. Engineered specifically for dry films like BOPP, BOPA, and PA66, the system ensures that lightweight materials are effectively densified and fed into the screw with consistent pressure, eliminating common feed interruptions.

Industrial-Grade Durability and Quality: The core components, including the screw and barrel, undergo specialized surface treatments to enhance wear resistance and longevity. A high-torque gearbox design allows for powerful output with minimal noise, while the integrated vacuum venting system actively extracts moisture and volatiles during the melt phase. This results in highly uniform, dense pellets that retain the physical properties required for high-end manufacturing.

Flexible Production Scaling: With models ranging from the compact JWP90 to the high-capacity JWP200, Jwell provides solutions for every scale of operation. Priced between USD 68,000 and 230,000, the JWP series delivers a reliable, high-yield infrastructure for modern plastic recovery facilities focused on quality and operational stability.
