Jwell JWSSQ Series Light Single Shaft Shredder
Key Selling Points
- Universal Recyclable Material Compatibility: pipes, solid blocks, woven bags, and films
- Customizable Output Granularity via selectable screen apertures
- Dual-Stage Ready Design for direct recycling or secondary fine crushing
- High-Performance Rotor Configuration with up to 69 dynamic blades
- Robust Heavy-Duty Drive Power ranging from 18.5kW to 55kW
- Large Processing Chamber Volume for bulky material handling
- Industrial-Grade Versatility for diverse plastic product recovery
Main Technical Parameter
| Model | Installed Power (kw) | Rotor dia. (mm) | Moving blades (pcs.) | Fixed blades (pcs.) | Maximum Dimension (mm) | Price ($) |
| JWSSQ-600 | 18.5/22 | Φ200 | 23 | 4 | 600×500 | 13w |
| JWSSQ-800 | 30/37 | Φ400 | 42 | 4 | 800×650 | 18w-23w |
| JWSSQ-1000 | 45/55 | Φ400 | 69 | 6 | 980×800 | 30w-40w |
Product Description

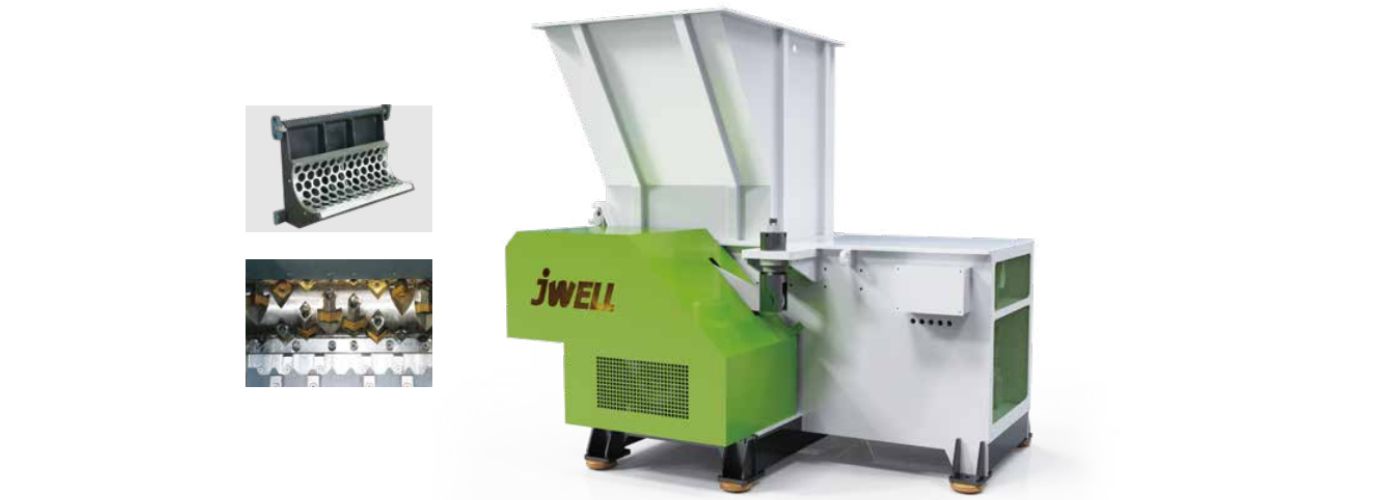

Jwell’s JWSSQ Series Light Single Shaft Shredder is a versatile and essential primary reduction unit designed for the efficient recovery of a wide variety of plastic waste streams.
Multi-Purpose Material Reduction: This shredder is engineered to handle an extensive range of recyclable materials, including rigid plastic pipes, dense solid blocks, flexible films, and high-strength woven bags. Its robust single-shaft rotor provides high-torque cutting action, making it a reliable choice for processing both soft and hard plastic scrap into manageable sizes.
Precision Sizing and Flexibility: The JWSSQ series allows for precise control over the shredded material dimensions. By selecting specific screen apertures tailored to your material type and downstream requirements, you can achieve the exact output size needed for direct recycling or further fine-crushing processes. This adaptability ensures seamless integration into any comprehensive recycling production line.
Optimized Industrial Performance: Built for durability and ease of use, the series offers multiple configurations to suit different production scales. From the compact JWSSQ-600 to the high-capacity JWSSQ-1000 with a 980 x 800mm processing chamber, these shredders deliver stable, high-efficiency performance. Priced between USD 130,000 and 400,000, they represent a significant investment in long-term operational stability and material recovery efficiency.
