Ever wonder how items like plastic pipes, window frames, and even pasta get their consistent shape? Many are made using a machine called an extruder. What exactly is an extruder, and how does it turn raw pellets or powders into finished goods?
This guide will walk you through everything you need to know. We’ll break down what an extruder is, how it works, its core components, and why it’s one of the most vital machines in modern production.
What is an Extruder?
An extruder is a machine that takes raw material (like plastic pellets, rubber, or even food dough), melts it down, and then forces it through a specially shaped opening, called a die, to create a continuous product with a fixed cross-sectional profile.
Think of it like squeezing toothpaste from a tube. The tube is the extruder, your hand provides the pressure, and the round opening is the die. The long, round “profile” of toothpaste that comes out is the extruded product. Of course, industrial extruders are far more sophisticated, using heat, pressure, and precision engineering to create everything from tiny medical tubing to massive construction materials.
First invented in the early 19th century to create lead pipes, the technology has evolved dramatically. Today, extruders are the cornerstone of high-volume manufacturing, valued for their efficiency, versatility, and ability to produce consistent, high-quality products around the clock.
How Does an Extruder Work? Step-by-Step Extrusion Process
While the technology can get complex, the basic principle of extrusion is a straightforward, continuous process. We can break it down into four main stages:
Step 1: Raw Material Feeding:
It all starts at the hopper, a large funnel-like container that holds the raw material, usually in the form of pellets, granules, or powder. Gravity feeds this material down into the main body of the extruder.
Step 2: Heating and Melting:
From the hopper, the material enters a long, heated chamber called a barrel. Inside the barrel is a large, rotating screw. As the screw turns, it propels the material forward. The combination of intense heat from electric heating elements along the barrel and the immense pressure and friction generated by the screw’s movement causes the material to melt into a uniform molten state.
Step 3: Forcing Through the Die:
At the end of the barrel, the thoroughly mixed and melted material is forced through a die. The die is essentially a steel plate with a precisely machined opening that gives the product its final shape. Whether it’s a hollow pipe, a solid rod, a wide film, or a complex window profile, the shape is determined by this die.
Step 4: Cooling and Solidification:
As the material exits the die, it is still hot and soft. It immediately passes through a cooling system, which often involves water baths or cool air jets. This rapidly cools and solidifies the material, ensuring it holds its shape. The continuous profile is then cut to the desired length.

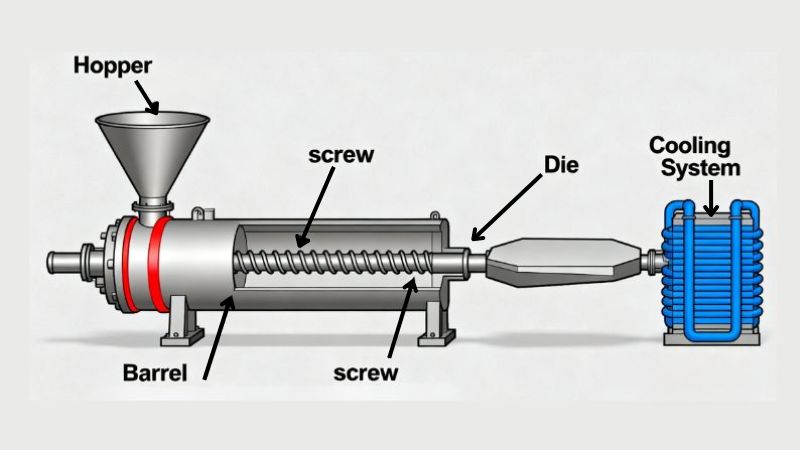

Anatomy of an Extruder: Main Components and Their Functions
- Hopper: The entry point for all raw materials.
- Barrel: The long, cylindrical chamber that houses the screw and where heating and melting occur.
- Screw: The heart of the extruder. Its design is critical for conveying, compressing, and melting the material uniformly.
- Die: The shaping tool at the end of the barrel that defines the product’s cross-section.
- Cooling System: The post-extrusion equipment that solidifies the product, locking its shape in place.
Single-Screw vs. Twin-Screw: What’s the Difference?
While both types of extruders shape material through a die, their internal mechanics and ideal use cases are quite different. This table breaks down the key distinctions:
|
Feature
|
Single-Screw Extruder
|
Twin-Screw Extruder
|
|
Number of Screws
|
One
|
Two (intermeshing)
|
|
Primary Function
|
Conveying and melting a single material
|
Superior mixing, compounding, and reacting
|
|
Best For
|
Simple, high-volume products like pipes, films, sheets, and basic profiles.
|
Complex tasks like mixing polymers with additives, creating custom blends, processing heat-sensitive materials, and devolatilization.
|
|
Mixing Capability
|
Good for homogenous, pre-compounded materials.
|
Excellent; provides intense and thorough mixing of multiple components.
|
|
Cost & Complexity
|
Lower cost, simpler design, easier to operate and maintain.
|
Higher initial cost, more complex mechanics, requires more skilled operation.
|
|
Industry Role
|
The “workhorse” for straightforward extrusion.
|
The “specialist” for compounding and customized material development.
|
Industries and Applications: Where are Extruders Used?
The versatility of extrusion is astounding. You can find extruded products in nearly every sector:
- Plastics Industry: This is the largest user of extruders, producing pipes, tubing, window frames, fencing, weatherstripping, plastic films for packaging, and much more.
- Food Industry: Extruders are used to make pasta, breakfast cereals, snack foods (like cheese puffs), pet food, and even plant-based meat substitutes.
- Metal Industry: Aluminum, copper, and other metals are extruded to create rods, tubes, and complex profiles for construction and automotive parts.
- Rubber Industry: Hoses, seals, and gaskets are commonly manufactured through rubber extrusion.
How to Set Up an Extruder: A Basic Guide
While a professional installation is always recommended, understanding the fundamentals of setup is crucial for any operator. A typical setup process involves:
- Site Preparation: Ensure you have a level, stable foundation capable of supporting the machine’s weight, along with adequate space for upstream and downstream equipment (like material loaders and cutting tools).
- Power and Utilities: The extruder and its heating elements require significant electrical power. You’ll also need connections for the water cooling system.
- Assembly and Alignment: The barrel, motor, gearbox, and die must be meticulously assembled and aligned to prevent premature wear and ensure consistent product quality.
- Initial Calibration: This involves heating the barrel to the correct temperature profile for your material, calibrating the screw speed (RPM), and performing a test run to ensure the final product meets specifications.
- Safety Integration: All safety guards, emergency stop buttons, and warning systems must be installed and tested before beginning full production.
How to Choose the Right Extruder for Your Business
Selecting the right extruder is a major decision that depends on several factors:
- Material: What polymer or raw material will you be processing? Different materials have different melting points and characteristics.
- Output: How much product do you need to produce per hour? This will determine the size and power of the machine.
- Application: Are you making a simple pipe or a complex composite material? This will dictate whether a single-screw or twin-screw extruder is more appropriate.
- Budget: Costs can vary significantly, so it’s important to balance upfront investment with long-term performance and reliability.
JWELL – Your Partner in Extrusion
At JWELL, we specialize in providing high-quality, reliable extruders tailored to our clients’ needs. With decades of experience, we’ve engineered a wide range of extrusion lines designed for maximum efficiency and durability. Whether you’re entering the market or looking to upgrade your production capacity, our team can help you find the perfect solution.
Ready to enhance your production line? Contact Us today to speak with one of our extrusion experts and find the perfect machine for your needs!
Frequently Asked Questions (FAQ)
1. What is the main difference between extrusion and injection molding?
The key difference is the nature of the process and the type of product created. Extrusion is a continuous process that produces long, linear parts with a consistent cross-section, like pipes or window seals. In contrast, injection molding is a discrete process where molten material is injected into a closed mold to create individual, often complex 3D parts, like bottle caps or car interior components.
2. What is an example of an extruded product?
You encounter extruded products every day. Common examples include PVC pipes, plastic straws, window frames, rubber hoses, fencing, plastic films used for packaging, and many breakfast cereals and pasta shapes.
3. What materials are commonly used in extrusion?
A vast range of materials can be extruded. In the plastics industry, the most common are PVC (Polyvinyl Chloride), PE (Polyethylene), PP (Polypropylene), and ABS (Acrylonitrile Butadiene Styrene). The process is also widely used for rubber, aluminum, copper, and food ingredients like dough and protein mixtures.
4. What is the primary function of the screw in an extruder?
The screw is the heart of the machine and performs three critical functions. First, it conveys the raw material from the hopper forward. Second, it compresses and heats the material through friction and pressure, causing it to melt. Third, it homogenizes the molten material to ensure it has a consistent temperature and composition before it reaches the die.
5. How much does an industrial extruder cost?
The cost of an extruder varies widely. A small, lab-scale or basic single-screw extruder might cost in the tens of thousands of dollars. A large, high-output, specialized twin-screw extrusion line can easily cost several hundred thousand dollars or more, depending on its size, complexity, and downstream equipment.
