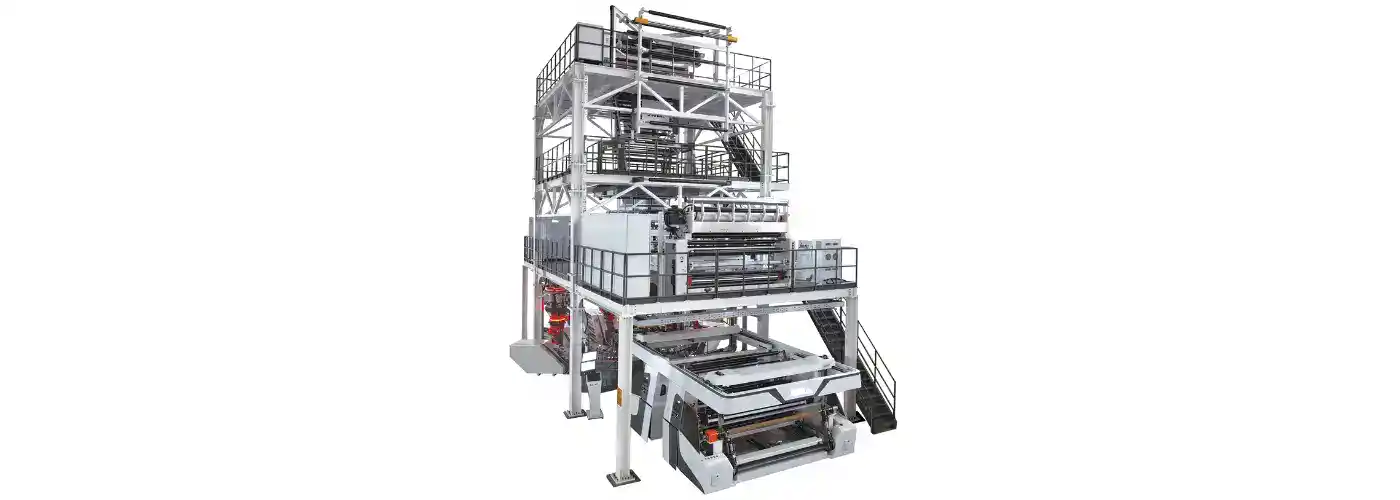

Jwell 3/5-layer Classical Blown Film Extrusion Line
Key Selling Points
- Processes HDPE, LDPE, LLDPE, mLLDPE, EVA, EVOH, PA, and TIE with stable performance
- Production capacity up to 800 kg/h for large-scale operations
- Reduces energy consumption by approximately 20% per ton
- Ensures consistent thickness and excellent dimensional accuracy
- Optimized plasticizing for smoother, more stable extrusion
- Film width up to 2600 mm and thickness from 0.03–0.2 mm
- Precision manufacturing and assembly for long-term stability
- Lower operating costs with higher production efficiency
|
Main Model
|
Output (kg/h)
|
Installed Power (kw)
|
Product Width (mm)
|
Product Thickness (mm)
|
|---|---|---|---|---|
| JBF-1600-3/5X |
300-400 |
250-300 |
1400 |
0.03-0.2 |
| JBF-1800-3/5X |
400-500
|
300-350 |
1600 |
0.03-0.2 |
| JBF-2300-3/5X |
500-600 |
250-300
|
2100
|
0.03-0.2 |
| JBF-2800-5X |
600-800 |
350-450
|
2600
|
0.03-0.2 |
|
|
|
Unique blown-die, optimized design and fluid simulation to ensure uniform material discharging;
The automatic air ring with JWELL control system can more accurately control the thickness deviation of the film; Jwell has decades of experiencein screw structure design to ensure high productivity and efficiency
|
|
- We have high-end CNC equipment to ensure the precision of the core parts;
- We have a mature design team to make the blown film line smarter, more efficient and more stable.
- Jwell has 14 production bases all over the world to achieve efficient resource integration and after-sales service.
Product Description
Elevate your packaging manufacturing capabilities with our high-efficiency 3/5-Layer Classical Blown Film Line. Engineered for industrial-scale plastic film production, the JBF series delivers exceptional extrusion stability and precision for a wide variety of polymer materials. This machinery is designed to help manufacturers scale their operations while significantly reducing overhead costs through intelligent, energy-saving components.
Core Advantages
- Wider processing adaptability: The unique screw structure is specially optimized for raw materials including HDPE, LDPE, LLDPE, mLLDPE, EVA, EVOH, PA, and TIE to achieve superior plasticizing effects and extrusion stability.
- Lower energy consumption: Equipped with heat-insulating heating rings and energy-saving drive motors, this unit reduces energy usage per ton of product by approximately 20% compared to traditional models.
- Excellent film quality: High-precision processing and assembly equipment effectively guarantee the structural accuracy and consistency of all finished film products.
