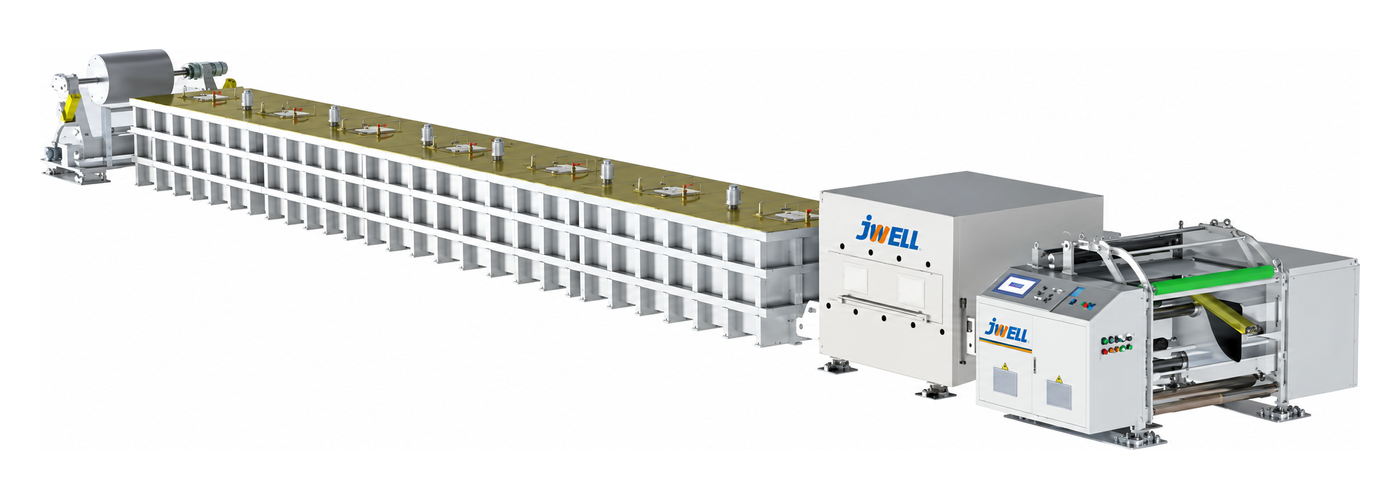

JWELL Filter Material Coating and Film-forming Production Line

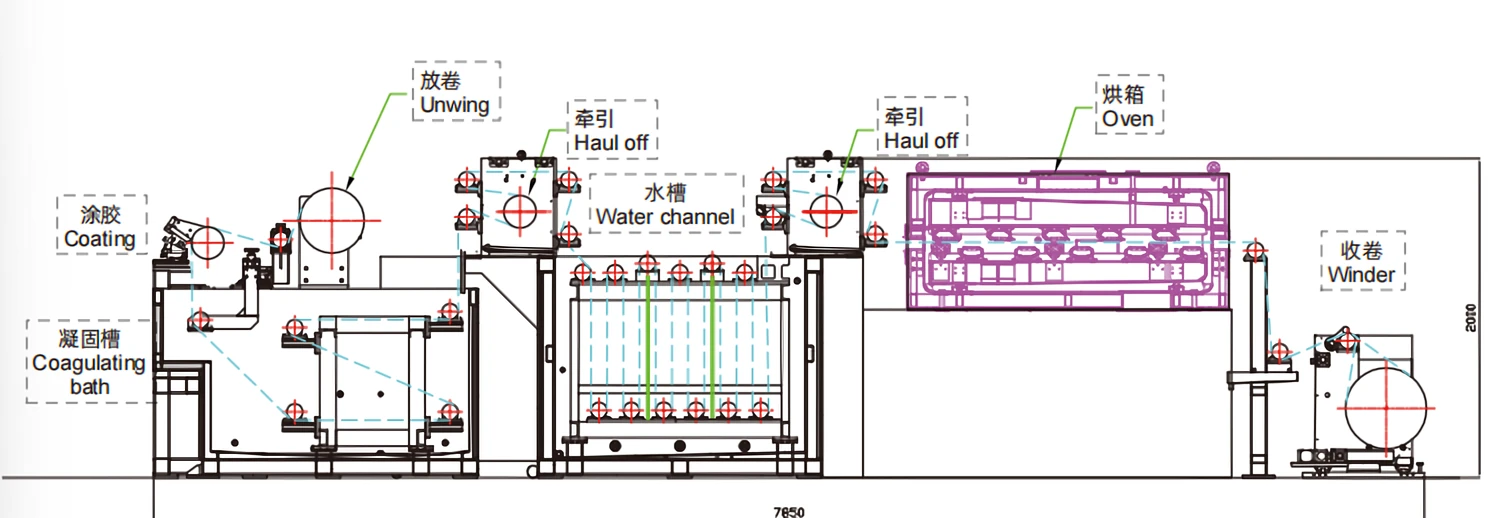

JWELL's filter material coating and film-forming production line is configured for microfiltration, ultrafiltration, nanofiltration and reverse-osmosis membrane production. A high-precision slot-die extrusion coating unit, water treatment tank and closed-loop tension control support stable casting and film forming.
Key Selling Points
- Precision Slot-Die: High-precision slot-die extrusion coating with micron-level coating gap adjustment.
- Tight Thickness Control: Coating (casting) thickness deviation can be held within 1%–2%.
- Process Water Tank: Anti-corrosion, anti-rust, constant-temperature, overflow, self-circulation and easy web-threading design.
- Flexible Rewinding: Optional peel-off rewinding unit plus film-forming rewinding unit.
- Closed-Loop Tension: Full closed-loop tension control for stable web handling.
Technical Specifications
| Parameter | Specification |
| Substrate types | BOPET, PE, non-woven fabric, etc. |
| Substrate width | 300–1600 mm |
| Working speed | Up to 15 m/min (depending on material and process) |
| Coating methods | Slot-die extrusion coating unit; large roller dip coating unit; gravure coating unit, etc. |
| Water treatment tank | According to the user's process requirements |
| Unwinding structure | Single-station or double-station |
| Max. roll diameter (unwinding) | 450–800 mm |
| Cutting type (unwinding) | Manual cutting, gear blade, online sewing machine |
| Clamping system (unwinding) | Pneumatic fixed cone, movable open-close arm cone, air shaft |
| Oven heating options | Electric heating, steam heating, heat transfer oil heating, natural gas heating, hot air heating, etc. |
| Rewinding structure | Single-station or double-station |
| Max. roll diameter (rewinding) | 450–800 mm |
| Cutting type (rewinding) | Manual cutting, gear blade, online sewing machine |
| Clamping system (rewinding) | Pneumatic fixed cone, movable open-close arm cone, air shaft |
Application Scenario

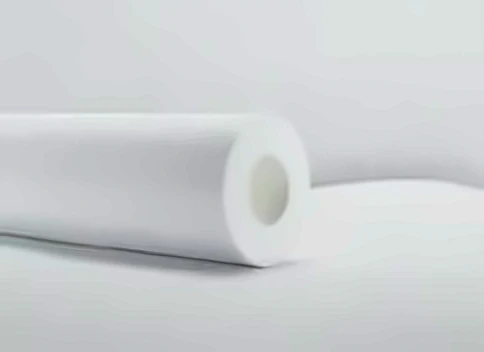

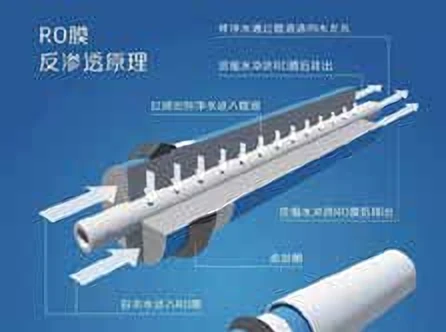

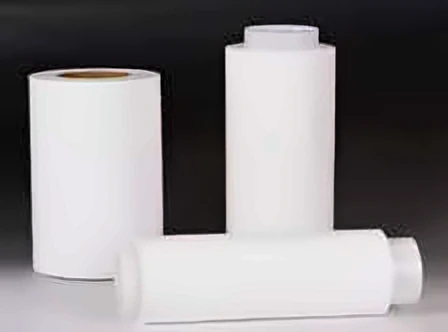

Application fields include microfiltration membrane, ultrafiltration membrane, nanofiltration membrane and reverse osmosis membrane.
Product Description
The line is equipped with a high-precision slot-die extrusion coating unit and can also be configured with large-roller dip coating or gravure coating units. Coating (casting) thickness deviation can meet 1%–2%.
The water treatment tank is designed for anti-corrosion, anti-rust, constant temperature, overflow protection, self-circulation and easy web threading. Optional peel-off and film-forming rewinding units, together with full closed-loop tension control, support flexible membrane processes.
