JWELL Coating and Laminating Multifunctional Equipment Series For Soft Package
JWELL’s coating and laminating multifunctional equipment for soft packaging supports dry or wet lamination of aluminum foil, PET, BOPP, paper and related webs. The same platform can run face coating, back coating and coloring with a three-roller coating structure and an energy-saving patented oven.
Key Selling Points
- Dry / Wet Lamination: Suitable for dry or wet lamination of aluminum foil, PET, BOPP, paper and other materials.

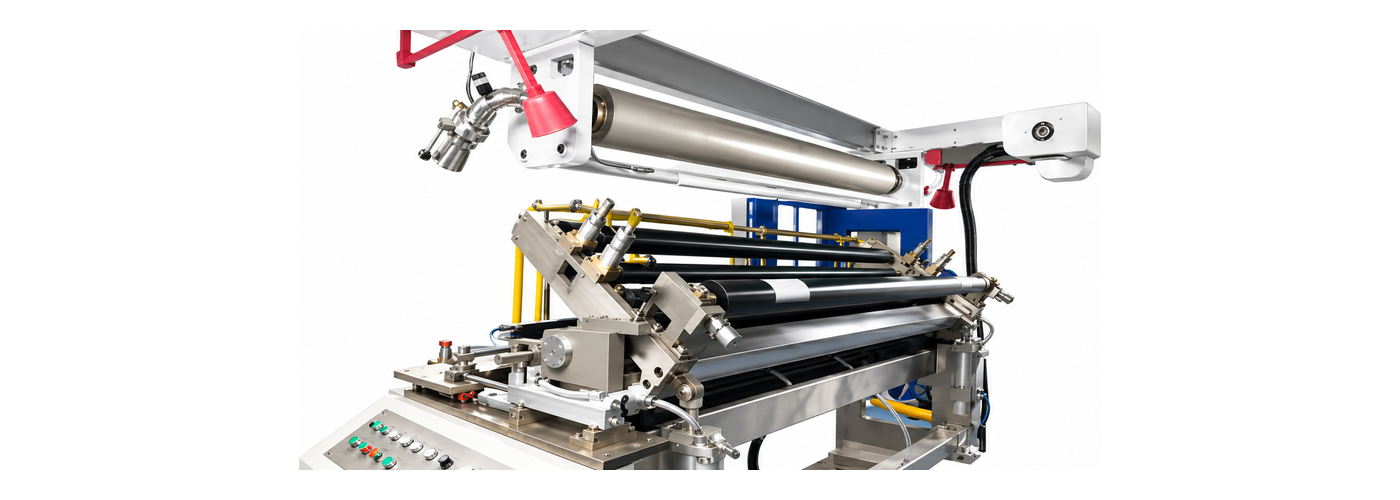

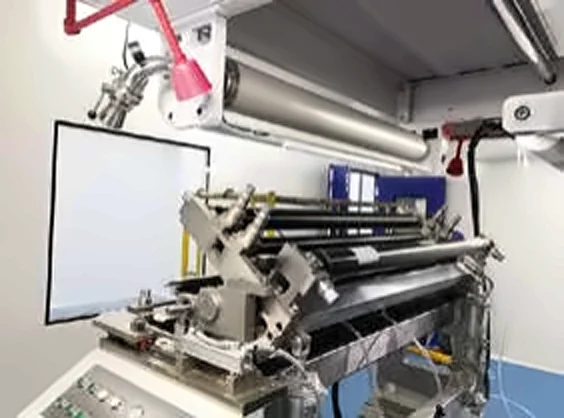

- Three-Roller Coating: Three-roller coating structure for face coating, back coating and coloring.
- Shaftless Unwinding: Hydraulic lifting shaftless unwinding with 6″ and 12″ chucks to reduce scrap and raise yield.
- Energy-Saving Oven: Patented oven drying technology focused on energy saving and environmental performance.
- Servo-Driven Core: Important core components use servo-driven control modules.
Technical Specifications
| Parameter | Specification |
| Equipment specification | 1250–2100 mm |
| Operating speed | Max. 150 m/min |
| Base material width | 400–2100 mm |
| Coating method | Roller coating |
| Unwind / winding diameter | Φ800 mm |
| Splicing method | Non-stop automatic splicing |
Application Scenario
Used for soft-package coating and laminating processes on aluminum foil, PET, BOPP, paper and similar webs, including face coating, back coating and coloring.
Product Description

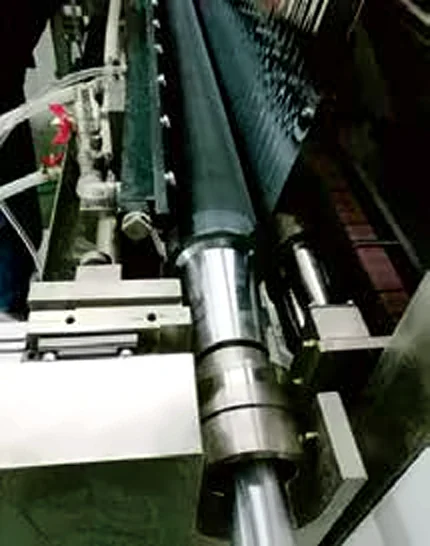

The unwinding unit adopts a hydraulic lifting shaftless structure with 6″ and 12″ chucks to cut changeover loss and improve finished yield. The coating unit uses a three-roller structure for face coating, back coating and coloring.
A patented energy-saving oven and servo-driven core modules support stable dry/wet laminating and coating production for soft-package materials.
