JWELL Functional Packaging Coating Production Line

JWELL functional packaging coating and laminating line with overhead catwalk on white backgroundJWELL functional packaging coating and laminating line with overhead catwalk on white background

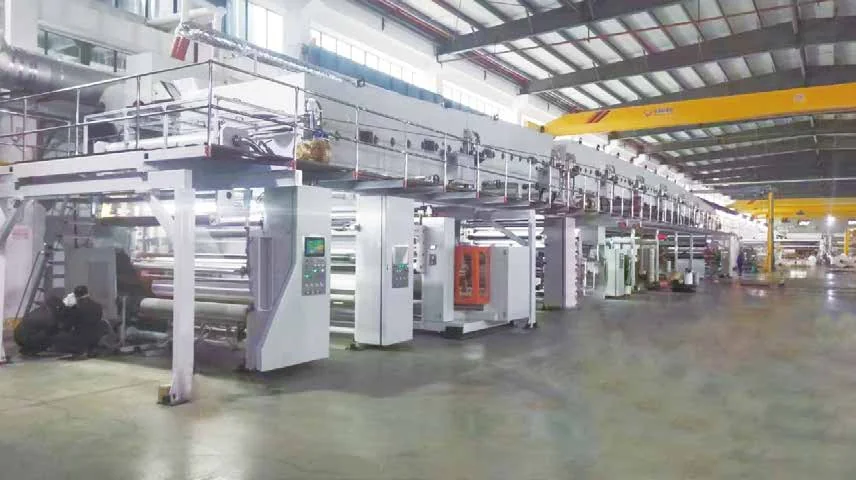

JWELL's functional packaging coating production line coats high-barrier films for retort pouches, ambient barrier food packaging, ready-to-eat snack packaging, anti-static electronic packaging and other oxygen-, light- and moisture-barrier structures that can replace traditional aluminum foil, on substrates 800–2700 mm wide at working speeds of up to 400 m/min depending on material and process.

Key Selling Points

  • Barrier-Oriented Coating Set: Reverse gravure, anilox direct coating and multi-roll precision metering units cover about 90% of high-barrier film process routes.
  • Micron Coating Uniformity: Wet coating thickness at micron level, with coating uniformity typically within 5% depending on the process.
  • Energy-Efficient Drying: Drying tunnel engineered for high efficiency and energy saving.
  • Closed-Loop Tension: Fully closed-loop tension control for stable material handling.
  • High-Speed Capability: Working speed of up to 400 m/min depending on material and process.

Technical Specifications

Parameter Specification
Substrate types BOPET, BOPP, CPP, PE, MDOPE, aluminum-coated film, etc.
Substrate width 800–2700 mm
Working speed Up to 400 m/min (depending on material and process)
Coating methods Reverse gravure coating unit; forward gravure coating unit; three-roll gravure transfer coating unit
Laminating methods Two-roll laminating; three-roll laminating, etc.
Unwinding structure Double-station
Rewinding structure Dual-station (with following mechanism)
Max. roll diameter (unwinding / rewinding) 800–1200 mm
Cutting type (unwinding / rewinding) Flying blade, gear blade
Clamping system (unwinding / rewinding) Pneumatic fixed cone, movable open-close arm cone, air shaft
Oven heating options Electric heating, steam heating, heat transfer oil heating, natural gas heating, hot air heating, etc.

Application Scenario

Typical applications include high-temperature retort pouch food packaging, ambient-temperature barrier food packaging, ready-to-eat puffed and oily food packaging, anti-static barrier packaging for electronics, and other structures that require oxygen, light and moisture barrier performance as alternatives to aluminum foil.

Vacuum-sealed corn packaged in clear barrier film Two cream-colored blocks with translucent wrapping Vacuum-packed roast poultry in a clear plastic bag

Product Description

Side-view schematic of a coating and laminating production line

This line targets converters of high-barrier packaging films. Coating units are chosen to match barrier coating chemistries and film structures, with double-station unwinding and dual-station rewinding for continuous high-speed runs.

Working speed of up to 400 m/min depends on the material and process. Contact JWELL with your substrate, barrier coating, width and target application for a configured proposal.
