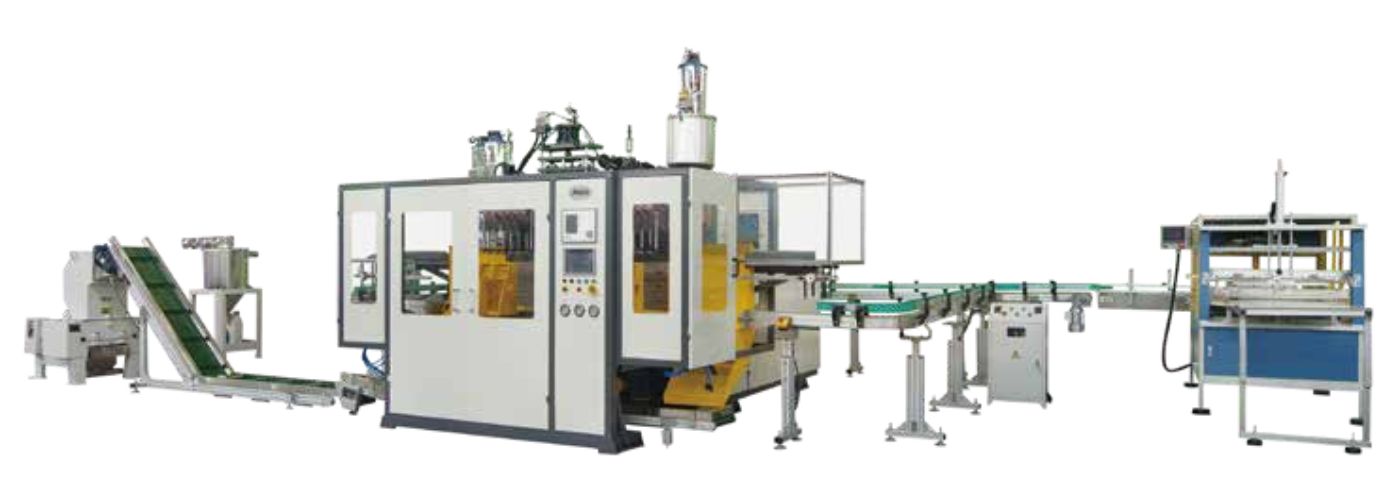

Jwell JWZ-BM02D/05D/12D/20D Double-Station Blow Molding Machine
Key Selling Points
- Versatile Volume Range from 100ml up to 20L containers
- High-Efficiency Double Station Design for maximized output
- Precision Servo Motor Control for mold moving and energy saving
- Customizable Multi-Cavity Die Heads adapted to product size
- Optional Multi-Layer Co-Extrusion for pearly luster or functional layers
- Integrated Automation Options: on-line deflashing and scrap conveying
- Hydraulic Screen-Exchanger System for high-purity material processing
- Robust Continuous Type Die Head structure for stable molding
Main Technical Parameter
| Model | Unit | BM02D | BM05D | BM12D | BM20D |
| Max product volume | L | 2 | 5 | 12 | 20 |
| Dry cycle | Pc/h | 900*2 | 700*2 | 600*2 | 600*2 |
| Die head structure | – | Continuous type | |||
| Main screw diameter | mm | 65 | 75 | 90 | 90 |
| Max plasticizing capacity (PE) | kg/h | 70 | 90 | 160 | 160 |
| Driving motor | Kw | 22 | 30 | 45 | 45 |
| Oil pump motor power(Servo) | Kw | 11 | 15 | 18.5 | 18.5 |
| Clamping force | KN | 40 | 70 | 120 | 160 |
| Mode moving control | – | Servo motor control (Optional) | |||
| Space between platen | mm | 138–368 | 150–510 | 240–640 | 280–680 |
| Platen size W*H | mm | 286*330 | 420*390 | 520*490 | 500*520 |
| Max. mould size | mm | 300*350 | 420*390 | 540*490 | 560*520 |
| Platen moving stroke | mm | 420 | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 6 | 7.5 | 10 | 12.5 |
| Dimension L*W*H | m | 3.0*1.9*2.4 | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 5 | 8.5 | 12 | 14 |
| Total power | Kw | 45 | 60 | 90 | 93 |
| Price | $ | 15-30W | 15-30W | 15-30W | 15-30W |
Product Description
Jwell’s JWZ-BM Series Double Station Blow Molding Machine is a high-performance industrial solution designed for the mass production of hollow plastic containers, ranging from small daily-use bottles to large 20-liter industrial carboys.
Multi-Industry Application: This series is engineered to meet the diverse packaging needs of the food, chemical, and toy industries. It is ideally suited for manufacturing milk bottles, soy sauce containers, shampoo and detergent bottles (up to 5000ml), and a variety of children’s toys. The machine’s flexibility allows it to handle everything from intricate 100ml shapes to heavy-duty 20L vessels with consistent wall thickness and superior finish.
Advanced Technical Configuration: To ensure operational efficiency and product quality, the JWZ-BM series features a continuous-type die head and an optional servo-driven mold moving system. Manufacturers can further customize their production with multi-cavity die heads for high-speed small-bottle runs or pearly luster co-extrusion systems for premium aesthetic appeal. The inclusion of a single-station hydraulic screen-exchanger allows for seamless material processing, even when using recycled resins.
Complete Automated Workflow: Beyond molding, this series offers a comprehensive suite of “on-line” automation features. According to client requirements, the machines can be equipped with automated deflashing systems, scrap recovery conveyors, and finished product delivery lines. This end-to-end integration significantly reduces manual labor, lowers production costs, and ensures a sterile, high-speed manufacturing environment.
Application Scenarios
