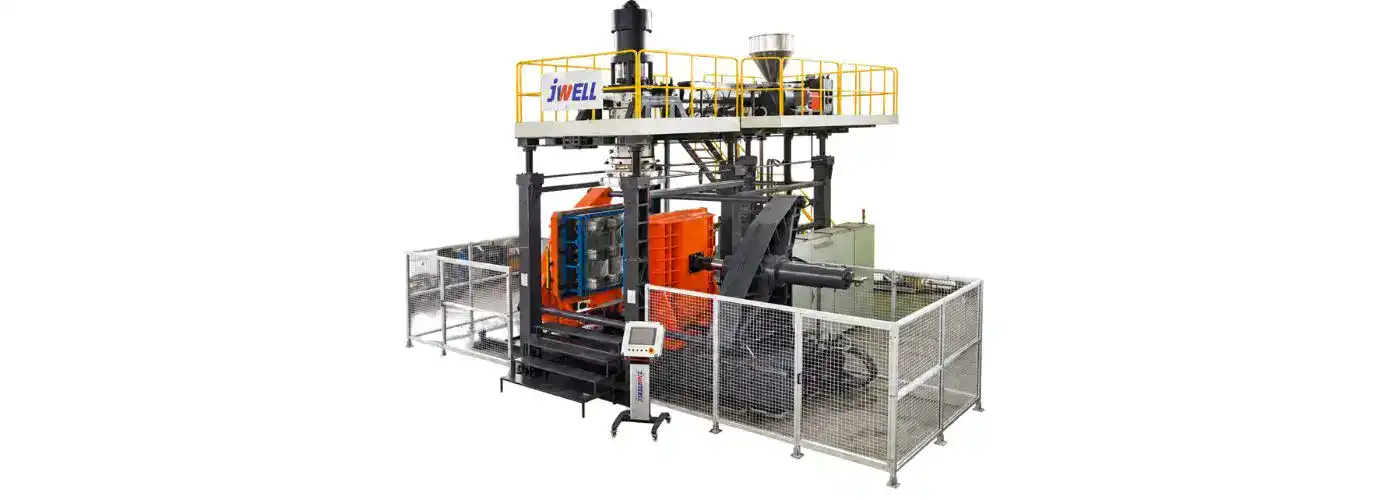

Jwell JWZ-BM1000 IBC Blow Molding Machine
Key Selling Points
- Specialized IBC Tank Production for 500L to 1200L industrial containers
- Extreme Clamping Force of 2000KN for high-pressure molding
- High-Yield Single or Double Layer Configuration
- Precision Hydraulic Servo Control System for energy efficiency
- Large-Volume Accumulating Die Head with 36L storage capacity
- High-Output Dual-Screw Extrusion Option (120mm * 2)
- Massive Platen Dimensions for heavy-duty industrial molds
- Robust 50-Ton Infrastructure for continuous 24/7 manufacturing
Main Technical Parameter
| Model | Unit | BM1000 | BM1000 |
| Max product volume | L | 1000 | 1000 |
| Layer | — | Single Layer | Double Layer |
| Dry cycle | Pc/h | 250 | 155 |
| Die head structure | Accumulating type | ||
| Main screw diameter | mm | 150 | 120*2 |
| Max plasticizing capacity (PE) | kg/h | 550–650 | 550–650 |
| Driving motor | Kw | 160 | 110*2 |
| Accumulating volume | L | 36 | 36 |
| Oil pump motor power (Servo) | Kw | 45 | 45 |
| Clamping force | KN | 2000 | 2000 |
| Space between platen | mm | 1100–2500 | 1100–2500 |
| Platen size W*H | mm | 1600*1600 | 1600*1600 |
| Max. mould size | mm | 1400*1600 | 1400*1600 |
| Heating power of die head | Kw | 30 | 30 |
| Machine dimension L*W*H | m | 12×*10*6.8 | 12*10*6.8 |
| Machine weight | T | 50 | 53 |
| Total power | Kw | 265 | 430 |
| Price | $ | 15-30W | 15-30W |
Product Description
Jwell’s JWZ-BM1000 IBC Blow Molding Machine is a specialized, high-capacity industrial system engineered for the production of Intermediate Bulk Containers (IBC) and large-format drums ranging from 500 to 1200 liters.

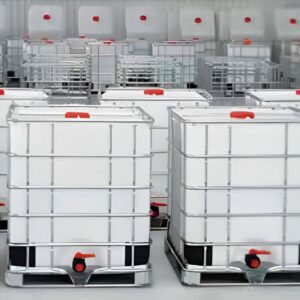

Industrial Standard IBC Manufacturing: This machine is the premier solution for the chemical and logistics industries, designed to produce the high-strength plastic inner tanks used in IBC totes. These containers require exceptional wall thickness uniformity and chemical resistance to safely transport bulk liquids. The machine’s massive 36L accumulating die head ensures a stable, high-volume parison, while the 2000KN clamping force provides the structural integrity needed for these critical industrial components.
Advanced Technical Versatility: The BM1000 offers flexibility in production with both single-layer and double-layer co-extrusion configurations. The double-layer model utilizes two 120mm screws, allowing manufacturers to optimize material costs by using recycled resins in the inner layer while maintaining a high-quality outer surface. Controlled by a sophisticated hydraulic servo system, the machine delivers precise, high-speed movements with reduced energy consumption, despite its massive scale.
Heavy-Duty Production Stability: Built for the most demanding environments, the system features a 50-ton frame and expansive 1600 x 1600mm platens. With a maximum plasticizing capacity of up to 650kg/h, it provides the rapid output required for large-scale industrial packaging. Priced between USD 150,000 and 300,000, the JWZ-BM1000 represents a high-yield, reliable investment for professional IBC tank manufacturers worldwide.

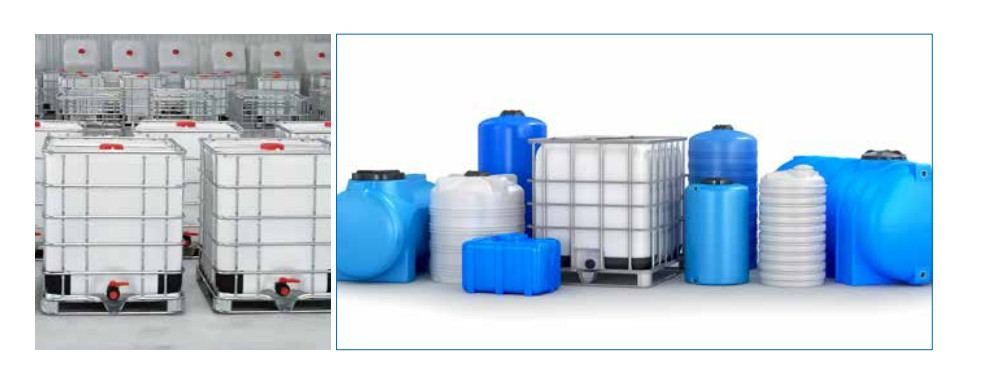

Application Scenarios
