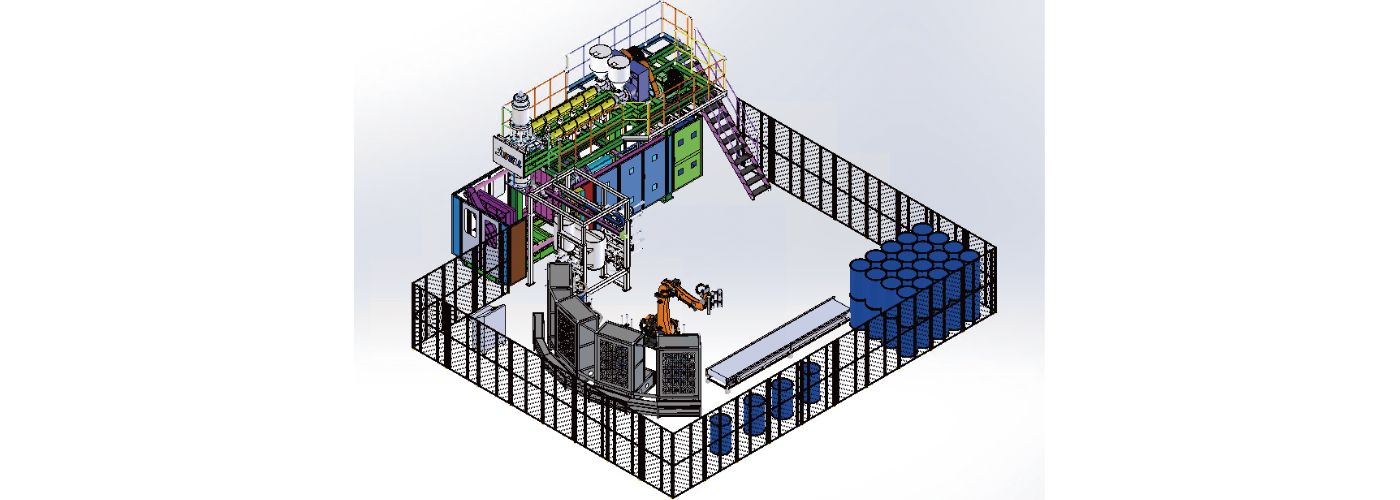

Jwell JWZ-BM230 Blow Molding Machine
Key Selling Points
- 230L Maximum Volume for large-capacity drum production
- 280 Pc/h Cycle Rate for high-speed manufacturing
- Accumulating Die Head for uniform wall thickness
- Dual Hydraulic Servo Control for independent L ring operation
- Robot Flash Removal for automated processing
- Secondary Cooling System for product shaping
- Single/Double/Triple Layer Options for versatile applications
- 900KN Clamping Force for industrial-strength molds
Main Technical Parameter
| Model | Unit | BM230 |
| Max product volume | L | 230 |
| Dry cycle | Pc/h | 280 |
| Die head structure | – | Accumulating type |
| Main screw diameter | mm | 120 |
| Max plasticizing capacity (PE) | kg/h | 350 |
| Driving motor | Kw | 132 |
| Accumulating volume | L | 24 |
| Oil pump motor power (Servo) | Kw | 37 |
| Clamping force | KN | 900 |
| Space between platen | mm | 800-1800 |
| Platen size W*H | mm | 1320*1600 |
| Max. mould size | mm | 1200*1800 |
| Heating power of die head | Kw | 36 |
| Machine dimension L*W*H | m | 8.2*3.5*5.5 |
| Machine weight | T | 36 |
| Total power | Kw | 230 |
| Price | $ | 15-30W |
Product Description

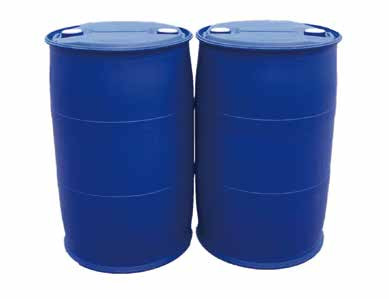

Jwell’s JWZ-BM230 Blow Molding Machine is engineered for high-volume production of 200L-250L double “L” ring drums, delivering exceptional efficiency and automated operation for industrial packaging applications.
Advanced Extrusion System: The machine features a high-output extrusion system with a 120mm main screw delivering 350 kg/h maximum plasticizing capacity (PE). The accumulating die head ensures consistent wall thickness distribution throughout each drum, while 24L accumulating volume supports stable parison formation at high production speeds.
Automated Production Workflow: The system integrates robot collaboration technology that automatically removes flash from products, collects waste material, and performs secondary cooling and shaping operations. This automation significantly reduces labor costs while improving overall production efficiency and product quality consistency.
Dual Servo Control: Standard dual hydraulic servo control enables independent control of each L ring section, providing precise management of the forming process. The 37Kw servo oil pump motor delivers energy-efficient operation with responsive accuracy throughout the production cycle.
Layer Configuration Options: Available in single layer, double layer, or three layer configurations to meet diverse application requirements, from basic storage drums to multi-layer specialized containers..
