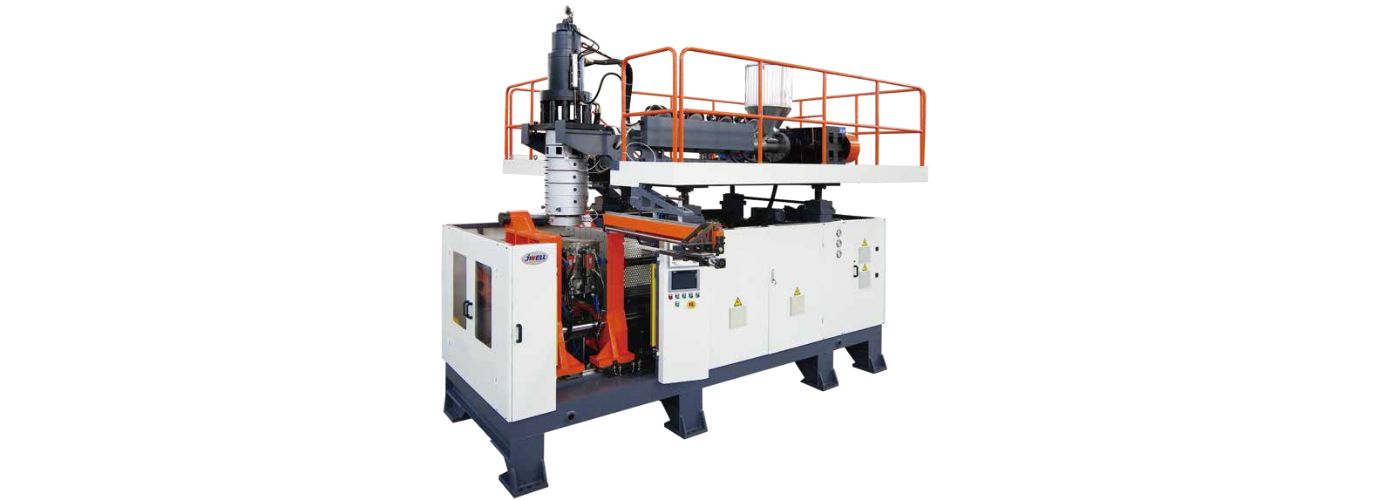

Jwell JWZ-BM30/50/100 Blow Molding Machine
Key Selling Points
- Large-Volume Versatility from 30L up to 100L product capacity
- Specialized Industrial Applications for safety seats, desks, and playground equipment
- High-Output Extrusion System for efficient material plasticization
- Accumulating Die Head Structure ensuring uniform parison formation
- Customizable Platen Specifications based on specific product dimensions
- Energy-Saving Hydraulic Servo System optional for precise control
- Advanced Hydraulic Screen-Exchanger for consistent melt purity
- Integrated Action Components including core-pulling and product ejection
Main Technical Parameter
| Model | Unit | BM30 | BM50 | BM100 |
| Max product volume | L | 30 | 50 | 100 |
| Dry cycle | Pc/h | 600 | 450 | 360 |
| Die head structure | – | Accumulating type | ||
| Main screw diameter | mm | 80 | 90 | 100 |
| Max plasticizing capacity (PE) | kg/h | 120 | 180 | 190 |
| Driving motor | Kw | 37 | 45 | 55 |
| Accumulating volume | L | 5.2 | 6.2 | 12.8 |
| Oil pump motor power(Servo) | Kw | 22 | 30 | 30 |
| Clamping force | KN | 280 | 400 | 600 |
| Space between platen | mm | 400–900 | 450–1200 | 500–1300 |
| Platen size W*H | mm | 740*740 | 880*880 | 1020*1000 |
| Max.mould size | mm | 550*650 | 700*850 | 800*1200 |
| Heating power of die head | Kw | 20 | 28 | 30 |
| Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 |
| Machine weight | T | 12 | 13.5 | 16 |
| Total power | Kw | 95 | 110 | 135 |
| Price | $ | 15-30W | 15-30W | 15-30W |
Product Description
Jwell’s JWZ-BM 30/50/100 Series Blow Molding Machine is a heavy-duty industrial solution specifically engineered for the high-volume production of large-scale hollow plastic goods, ranging from 30 to 100 liters in capacity.
Heavy-Duty Industrial Application: This series is optimized for manufacturing substantial, structurally demanding products that require high strength and durability. It is the ideal equipment for producing children’s safety car seats, robust desk boards, and large-scale playground facilities. The machine’s accumulating die head structure ensures a stable melt flow and consistent wall thickness, which is critical for the safety and structural integrity of these large-format products.
Precision Engineering and Customization: To handle diverse production requirements, Jwell offers a high-output extrusion system capable of high plasticizing rates (up to 190kg/h on the BM100). The machine’s platen type and size are fully customizable to match unique mold geometries. Manufacturers can further enhance performance with a hydraulic servo control system for increased precision and significant energy savings, as well as optional functional elements like bottom sealing, product ejection, and core-pulling for complex part designs.
Reliable Material Processing: To ensure uninterrupted production even when using variable raw materials, the series can be equipped with the JW-DB single-station hydraulic screen-exchanger. This allows for quick impurity removal without stopping the machine, maintaining a high-quality finish on all products. Priced between USD 150,000 and 300,000, this series represents a powerful, scalable investment for heavy-duty plastic molding operations.
Application Scenarios
