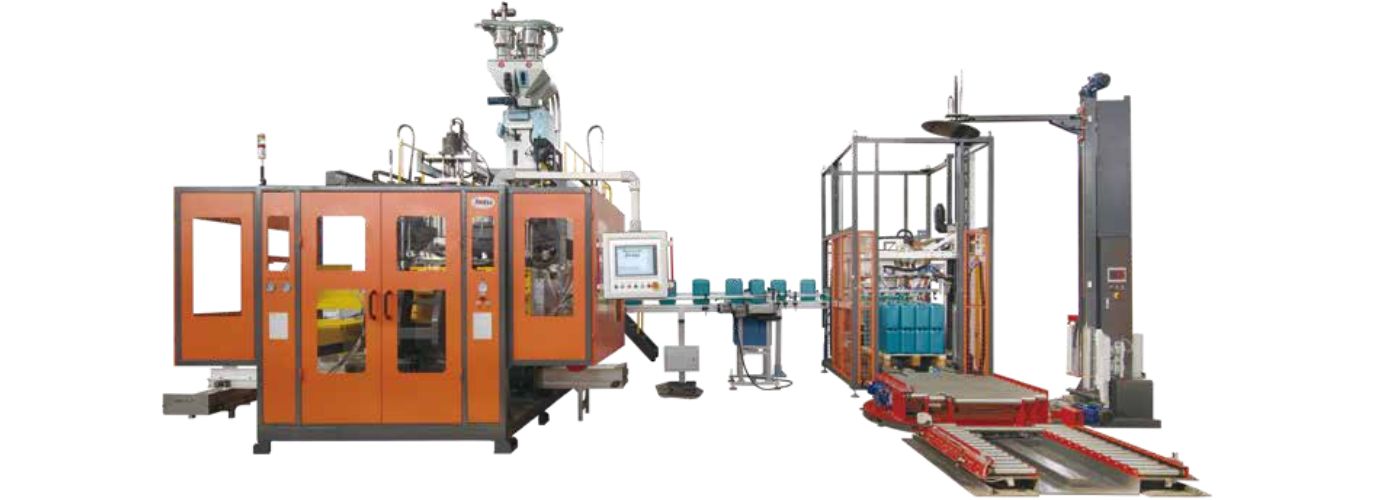

Jwell Double-Station Blow Molding Machine
Key Selling Points
- Double-Station Configuration: High production efficiency with dual positions
- Multi-Application Range: 1-20L containers for oil bottles and water tanks
- Continuous Die Head: Stable parison formation for various cavity configurations
- Optional Multi-Layer Co-Extrusion: Material flexibility for product requirements
- Optional View Strip Line System: Visible liquid level functionality
- Flexible Die Head Cavities: Customized selection based on product size
- JW-DB Screen Changer System: Continuous material processing capability
- Optional Auto-Deflashing: Inline scrap removal and waste reduction
Main Technical Parameter
| Model | Unit | BM05D | BM12D | BM20D |
| Max product volume | L | 5 | 12 | 20 |
| Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
| Die head structure | Continuous type | |||
| Main screw diameter | mm | 75 | 90 | 90 |
| Max plasticizing capacity (PE) | kg/h | 90 | 160 | 160 |
| Driving motor | Kw | 30 | 45 | 45 |
| Oil pump motor power(Servo) | Kw | 15 | 18.5 | 18.5 |
| Clamping force | KN | 70 | 120 | 160 |
| Mode moving control | Servo motor control(Optional) | |||
| Space between platen | mm | 150-510 | 240-640 | 280-680 |
| Platen size W*H | mm | 420*390 | 520*490 | 500*520 |
| Max. mould size | mm | 420*400 | 540*500 | 560*520 |
| Platen moving stroke | mm | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 7.5 | 10 | 12.5 |
| Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 8.5 | 12 | 14 |
| Total power | Kw | 60 | 90 | 93 |
| Price | $ | 15-30W | 15-30W | 15-30W |
Product Description
Jwell’s Double-Station Blow Molding Machine is engineered for high-volume production of small to medium containers including gear oil bottles, lubrication oil bottles, and cooling water tanks ranging from 1 liter to 20 liters capacity.
Dual-Station Production Advantage: The innovative double-station configuration effectively doubles production output with dry cycle rates reaching 700×2 pcs/h for 5L products and 600×2 pcs/h for larger containers. This design maximizes machine utilization while minimizing cycle time for cost-effective manufacturing operations.
Versatile Container Solutions: The continuous die head structure accommodates different product sizes through selectable cavity configurations. Whether producing compact 1-5L gear oil bottles or larger 20L cooling water tanks, the system adapts to specific production requirements with consistent parison quality and uniform wall thickness.
Advanced Optional Features: Manufacturers can enhance production lines with multi-layer co-extrusion for barrier properties, view strip line systems for visible liquid levels, and JW-DB single station hydraulic screen-changer for continuous material processing. Optional automation includes auto-deflashing, scrap conveying, and inline leak testing for complete quality control integration.
Model Range & Specifications: The BM05D handles up to 5L with 75mm screw and 90 kg/h capacity; the BM12D manages 12L containers with 90mm screw and 160 kg/h output; the BM20D processes up to 20L with 160KN clamping force. All models feature optional servo motor control for platen movement, ensuring precision operation with reduced energy consumption across the 60-93 kW power range.

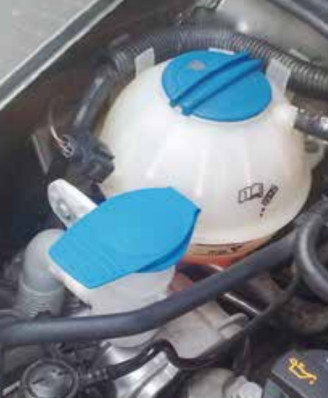

Application Scenarios
