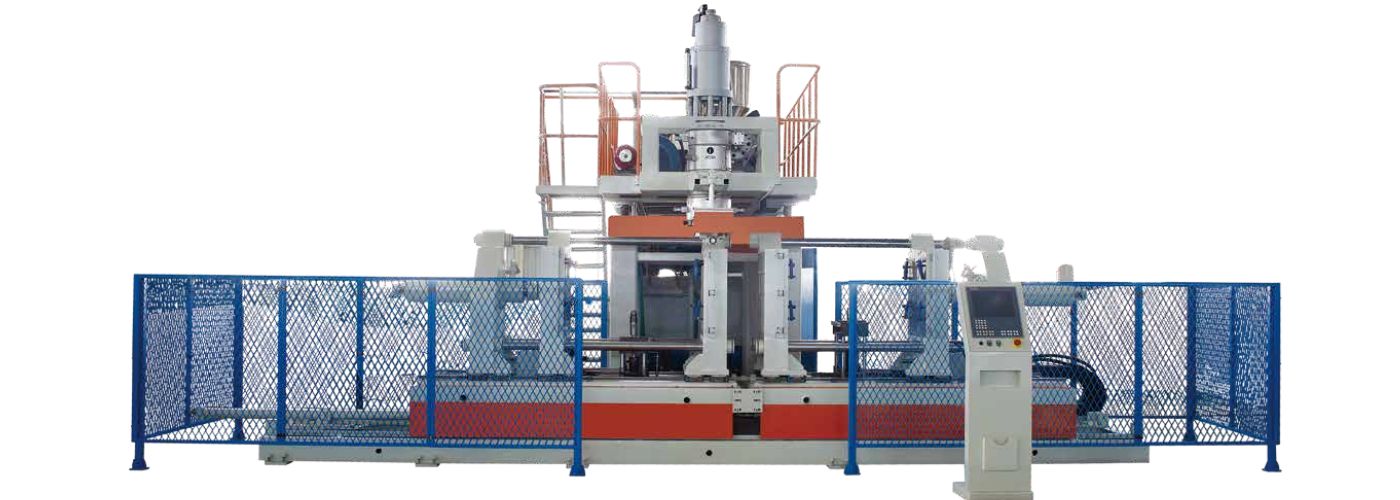

Jwell JWZ-BM30D, 50D, 100D Blow Molding Machine
Key Selling Points
- High-Efficiency Double Station Design for doubled production output
- Versatile 15L to 100L Capacity for jerrycans and chemical drums
- Integrated Accumulating Die Head for stable large-volume parison formation
- Optional View Strip Line System for liquid level visibility
- Double Layer Co-Extrusion Capability for cost-effective material usage
- High-Output Extrusion System reaching up to 280kg/h plasticizing
- Energy-Saving Hydraulic Servo Control for precision movements
- Robust Heavy-Duty Construction for 24/7 industrial chemical packaging
Main Technical Parameter
| Model | Unit | BM30D | BM50D | BM100D |
| Max product volume | L | 30 | 50 | 100 |
| Dry cycle | Pc/h | 800 | 600 | 500 |
| Die head structure | Accumulating type | |||
| Main screw diameter | mm | 90 | 100 | 120 |
| Max plasticizing capacity (PE) | kg/h | 180 | 220 | 280 |
| Driving motor | Kw | 55 | 75 | 110 |
| Accumulating volume | L | 5.2 | 6.2 | 12.8 |
| Oil pump motor power(Servo) | Kw | 22 | 30 | 30 |
| Clamping force | KN | 280 | 400 | 600 |
| Space between platen | mm | 400-900 | 450-1200 | 500-1300 |
| Platen size W*H | mm | 740*740 | 880*880 | 1020*1000 |
| Max.mould size | mm | 550*650 | 700*850 | 800*1200 |
| Platen moving stroke | mm | 1400 | 1800 | 1900 |
| Heating power of die head | Kw | 20 | 28 | 30 |
| Machine dimension L*W*H | m | 5.2*8.5*3.5 | 5.6*9.2*3.8 | 6.0*10.2*4.2 |
| Machine weight | T | 16 | 23 | 25 |
| Total power | Kw | 115 | 145 | 195 |
| Price | $ | 15-30W | 15-30W | 15-30W |
Product Description

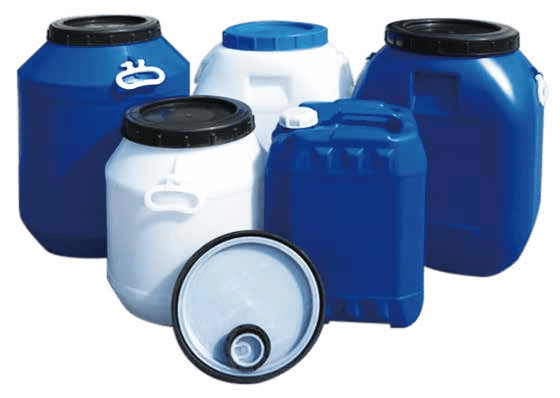

Jwell’s JWZ-BM 30D/50D/100D Series Double Station Blow Molding Machine is a premier industrial solution designed specifically for the high-speed manufacturing of chemical packaging, including jerrycans, stackable containers, and open-top drums.
Maximized Throughput for Chemical Packaging: By utilizing a double-station configuration, this series nearly doubles the production capacity compared to single-station units. It is engineered to produce high-quality containers ranging from 15L to 100L, making it the ideal choice for large-scale manufacturers of industrial chemicals, lubricants, and bulk food-grade liquids.
Advanced Technical Customization: The series features a high-output extrusion system and an accumulating die head to ensure uniform wall thickness in large-volume products. Manufacturers can further enhance their product functionality with an optional view strip (liquid level line) system or a double-layer co-extrusion system to optimize material costs. For operational efficiency, the optional hydraulic servo control system provides significant energy savings and smoother mechanical cycling.
Industrial Strength and Reliability: With clamping forces ranging from 280KN to 600KN and a maximum plasticizing capacity of 280kg/h on the BM100D model, these machines are built for the most demanding production environments. Priced between USD 150,000 and 300,000, the JWZ-BM Double Station series offers a high-yield, technologically advanced infrastructure for the global chemical packaging market.
Application Scenarios
