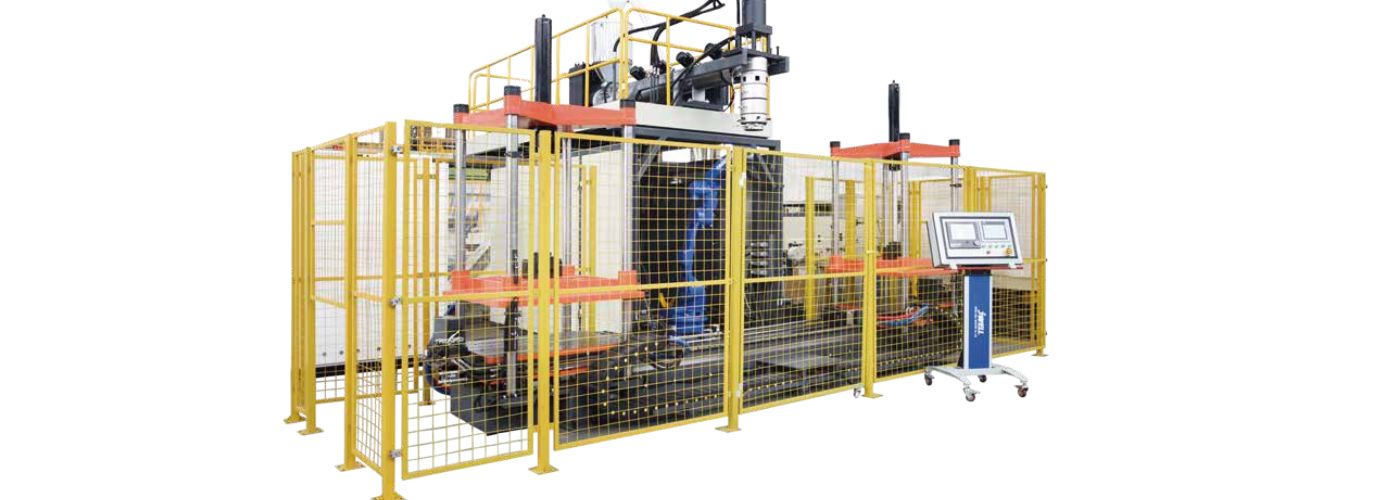

Jwell JWZ-BM3D Three-Dimensional Blow Molding Machine
Key Selling Points
- Specialized 3D Molding Technology for complex, irregular automotive pipe fittings
- Flashless/Low-Scrap Production for enhanced part strength and material savings
- High-Output Accumulating Die Head extrusion system
- Precision Hydraulic Servo Control for energy efficiency and stable movement
- Customizable Platen Dimensions tailored to specific part geometries
- Versatile Process Integration: optional core pulling, ejection, and upper encapsulation
- Flexible Loading Options: choice of robotic manipulator or vacuum suction models
- Durable Automotive-Grade Manufacturing for oil filler and air intake systems
Main Technical Parameter
| Model | Main screw diameter (mm) | Screw L/D ratio | Screw rotating speed (r/min) | Max plasticizing capacity (PE)kg/h | Platen size W*H (mm) | Mold thickness (mm) | Clamping force (KN) | Dry Cycle Time (s) | Platen moving stroke (mm) | Price ($) |
|---|---|---|---|---|---|---|---|---|---|---|
| JWZ-BM 3D-1000 Robotic Manipulator | 65mm | 25:1 | 25-75 | 65-75 | 800*1200 | 450 | 75 | 20 | 1800 | 150,000-300,000 |
| JWZ-BM-100 3D Vacuum Suction | 80mm | 25:1 | 25-75 | 100-120 | 1020*1500 | 600 | 280 | 10 | 360 | 150,000-300,000 |
Product Description
Jwell’s JWZ-BM 3D Series Blow Molding Machine is a specialized industrial solution engineered for the high-precision manufacturing of complex, three-dimensional irregular pipe fittings, primarily serving the global automotive industry.
Specialized 3D Geometry Processing: Unlike traditional blow molding, the 3D series is designed to produce curved and irregular tubes—such as automotive air intake ducts and oil filler pipes—with minimal to zero parting-line flash. This unique “flashless” capability not only significantly reduces material waste but also enhances the structural integrity and aesthetic quality of the finished products, making them ideal for high-pressure engine environments.
Advanced Technical Configuration: The machine utilizes a high-output extrusion system equipped with an accumulating die head to ensure uniform melt temperature and wall thickness. Controlled by a sophisticated hydraulic servo system, the equipment offers precise movement and substantial energy savings. Depending on the production requirement, manufacturers can choose between the robotic manipulator model (3D-1000) for complex handling or the vacuum suction model (100 3D) for rapid material intake.
Customizable Industrial Automation: To accommodate a wide variety of automotive components, Jwell offers customizable platen sizes and a range of optional functional modules, including core pulling, product ejection, and specialized upper encapsulation. Priced between USD 150,000 and 300,000, the JWZ-BM 3D series provides a robust, future-proof platform for manufacturers targeting high-spec, complex hollow plastic components.
