Jwell JWZ-BM500/1000 Blow Molding Machine
Key Selling Points
- Extra-Large Industrial Application for high-strength blow-molded pallets
- High-Volume 500L to 1000L Capacity for massive hollow structures
- Superior Clamping Force reaching up to 1800KN for heavy molds
- Massive Accumulating Die Head with up to 90L storage volume
- High-Yield Dual-Screw Extrusion reaching up to 700kg/h plasticizing
- Precision Hydraulic Servo Control for energy-efficient massive movements
- Versatile Action Components: optional bottom sealing, ejection, and core-pulling
- Heavy-Duty Infrastructure supporting machine weights up to 70 tons
Main Technical Parameter
| Model | Unit | BM500 | BM1000 |
| Max product volume | L | 500 | 1000 |
| Dry cycle | Pc/h | 250 | 155 |
| Die head structure | Accumulating type | ||
| Main screw diameter | mm | 120/135 | 120*2 |
| Max plasticizing capacity (PE) | kg/h | 400 | 700 |
| Driving motor | Kw | 132/160 | 132*2 |
| Accumulating volume | L | 45/60 | 75/90 |
| Oil pump motor power(Servo) | Kw | 45 | 45 |
| Clamping force | KN | 1300 | 1800 |
| Space between platen | mm | 950-2000 | 1000-2700 |
| Platen size W*H | mm | 1600*1600 | 1800*1800 |
| Max. mould size | mm | 1400*1600 | 1600*1800 |
| Heating power of die head | Kw | 50 | 65 |
| Machine dimension L*W*H | m | 10.4*8.2*6.5 | 14*12*8.5 |
| Machine weight | T | 45 | 70 |
| Total power | Kw | 265/325 | 460 |
| Price | $ | 15-30W | 15-30W |
Product Description
Jwell’s JWZ-BM 500/1000 Series Blow Molding Machine is a colossal industrial system specifically designed for the manufacturing of heavy-duty plastic pallets and extra-large industrial containers up to 1000 liters.

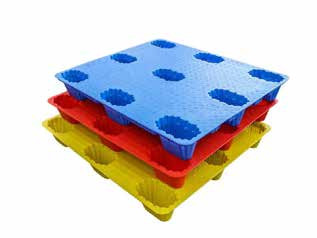

Heavy-Duty Pallet Manufacturing: This series represents the pinnacle of large-scale blow molding technology, optimized for the production of blow-molded pallets used in logistics, warehousing, and heavy industry. These pallets require exceptional load-bearing strength and impact resistance. The machine’s massive accumulating die head (up to 90L) allows for the rapid formation of large-parison structures, ensuring consistent material distribution across a wide surface area.
Extreme Power and Efficiency: To manage the immense scale of these products, the BM1000 model is equipped with a dual-screw extrusion system (120mm * 2) delivering a high plasticizing capacity of 700kg/h. Despite its scale, the system maintains precise control through an integrated hydraulic servo system, which provides significant energy savings and smoother mechanical cycling. With clamping forces up to 1800KN and expansive 1800 x 1800mm platens, the machine can safely operate the largest industrial molds.
Scalable Industrial Solution: Beyond pallets, the machine’s flexible configuration allows for the production of various ultra-large hollow components. Manufacturers can add optional modules such as bottom sealing, product ejection, and core-pulling to accommodate complex designs. Priced between USD 150,000 and 300,000, this series provides a robust and reliable foundation for the highest tier of industrial plastic manufacturing.
Application Scenarios
