Jwell PE Breathable Film Production Line
Key Selling Points
- Sub-nanometer microporous structure
- PE-based breathable formulation
- Inorganic filler integration
- Extrusion casting technology
- High-ratio roller stretching
- Uniform pore distribution
- Superior air permeability
- Hygienic film applications
Main Technical Parameter
| Model | Output (kg/h) | Power | Product Width |
|---|---|---|---|
| JWS130 | 450-600 | 160 kW | 1600 mm |
| JWS160 | 450-600 | 200 kW | 2200 mm |
Product Description

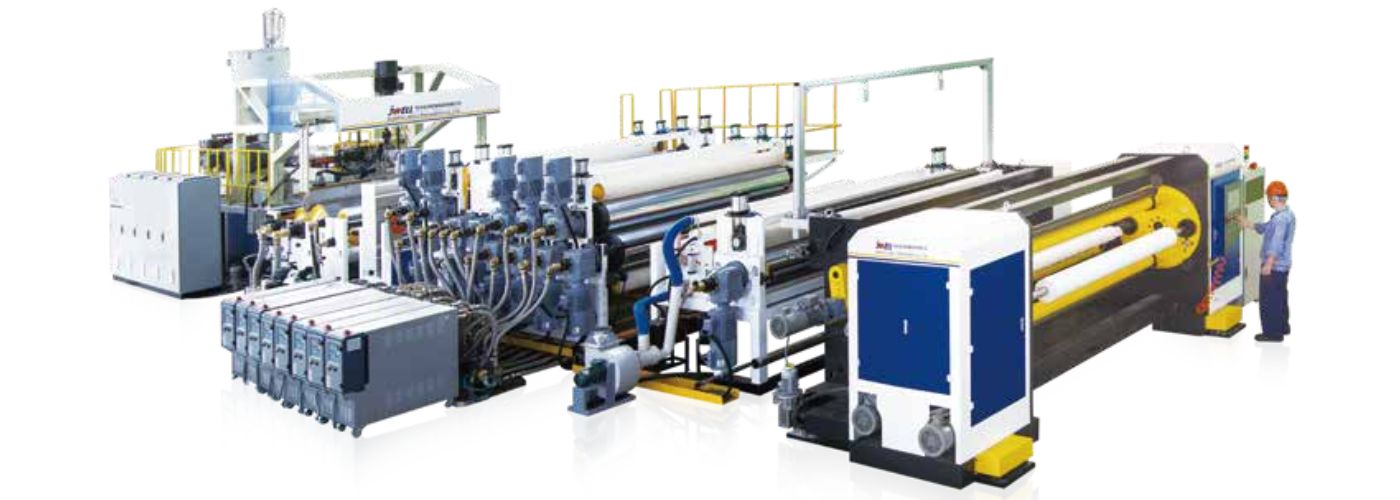

The PE Breathable Film Production Line is a high-performance manufacturing system designed to produce advanced microporous breathable films using PE air-permeable plastic granules as raw material. This production line employs precision extrusion casting technology to transform PE-modified granules containing inorganic fillers into ultra-fine porous films with sub-nanometer pore structures.
Advanced Extrusion Casting Process: The system utilizes a flat die extrusion mechanism where PE air-permeable granules are melted and formed through precision tooling. The molten material then undergoes high-ratio roller stretching, which creates a uniform network of sub-nanometer scale microvoids throughout the film structure. This specialized process ensures consistent pore distribution and optimal breathability performance across the entire film width.
Versatile Production Capacity: Available in two main configurations—JWS130 with 160KW motor power producing films up to 1600mm width at 450-600kg/h output, and JWS160 with 200KW motor power delivering films up to 2200mm width at the same throughput rate. This flexibility allows manufacturers to select the optimal configuration based on their specific production requirements and market applications.
Microporous Film Excellence: The resulting breathable films feature precisely controlled sub-nanometer microporous structures that enable exceptional air permeability while maintaining effective barrier properties against liquids and particles. This unique combination makes the films ideal for hygiene product applications such as diaper backsheets and sanitary product layers, medical protective apparel, agricultural mulching, and construction waterproofing membranes.
Industrial-Grade Reliability: Built for continuous high-volume production, this PE breathable film line represents a robust investment for manufacturers seeking to capitalize on the growing demand for microporous film solutions in healthcare, hygiene, and agricultural sectors worldwide.
Application Scenarios
