Jwell PVC/EVA Medical Soft Bag Film Production Line
Key Selling Points
- PVC and non-PVC formulations
- Medical-grade film quality
- 0.12-0.35mm thickness range
- 400-900mm width flexibility
- Excellent chemical resistance
- Superior temperature tolerance
- Closed infusion system compatibility
- Balanced pressure performance
Main Technical Parameter
| Model | Output (kg/h) | Product Thickness | Product Width |
|---|---|---|---|
| JWS45/28-1500 | 20 | 0.12–0.35 mm | 400 mm |
| JWS90/28、JWS120/28-1500 | 100–250 | 0.12–0.35 mm | 900 mm |
Product Description

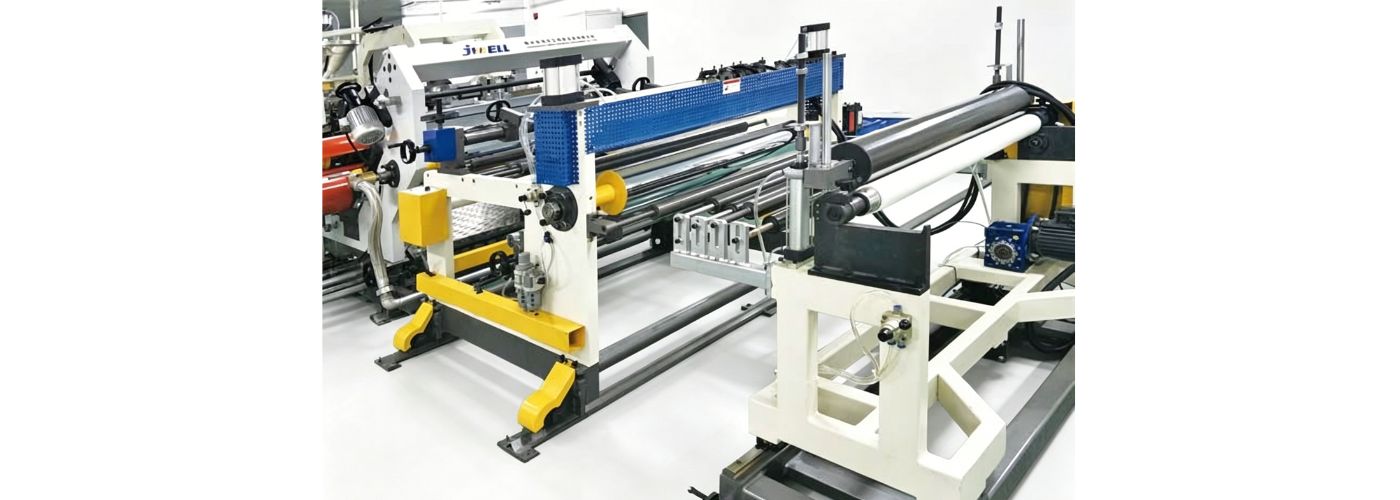

The PVC/EVA Medical Soft Bag Film Production Line is a specialized manufacturing system engineered to produce high-performance flexible films for medical packaging applications. This production line offers dual material capabilities—producing both traditional PVC and advanced non-PVC films—providing manufacturers with versatile solutions for the evolving medical packaging industry.
Dual Material Capability: The system supports two primary configurations—JWS45/28-1500 delivering 20kg/h output for 400mm width films, and JWS90/28/JWS120/28-1500 producing 100-250kg/h for 900mm width films. Both configurations produce films with consistent thickness control between 0.12mm and 0.35mm, meeting stringent medical packaging standards.

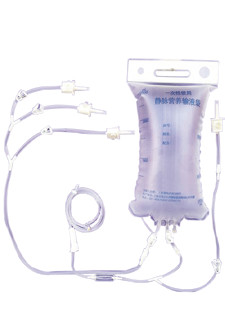

PVC Film Excellence: PVC soft bag films offer excellent chemical resistance and reliable temperature tolerance, making them ideal for traditional medical applications including blood collection bags, urine collection bags, and surgical drainage containers. These materials provide a proven, cost-effective solution for single-use medical packaging while maintaining product integrity during storage and transport.
Non-PVC Advanced Solutions: The non-PVC film technology represents the next generation of medical packaging, overcoming the toxicological concerns associated with traditional PVC while retaining all functional advantages. Non-PVC infusion bags feature an inherent balanced pressure system that maintains closed-circuit circulation without introducing external air, eliminating contamination risks and meeting modern safety standards.
Clinical & Emergency Applications: Both film types demonstrate superior temperature resistance enabling unrestricted seasonal transportation and storage. The non-PVC variants specifically offer exceptional shock and impact resistance, maintaining structural integrity even when dropped from significant heights—critical advantages for emergency medical services, disaster relief operations, and battlefield medicine applications.
Industry Compliance: Designed for continuous medical-grade production, this PVC/EVA soft bag film line meets international healthcare packaging requirements, offering manufacturers a reliable, scalable investment for the growing demand for safe, efficient medical container solutions worldwide.
Application Scenarios
