Jwell PP Melt-blown Nonwoven Fabric Production Line
Key Selling Points
- 1-5 micron ultra-fine fibers
- Polypropylene-based material
- Multi-void fluffy structure
- Excellent anti-wrinkle performance
- Unique capillary fiber design
- Superior filtration efficiency
- Outstanding heat insulation
- Excellent oil absorption capacity
Main Technical Parameter
| Model | Output (kg/h) | Power | Product Width |
|---|---|---|---|
| JW65 | 500-600 | 22 kW | 800 mm |
| JW90 | 1200-1500 | 45 kW | 1600 mm |
| JW105 | 2000-2500 | 55 kW | 2400 mm |
| JW135 | 3000-3500 | 75 kW | 3200 mm |
Product Description

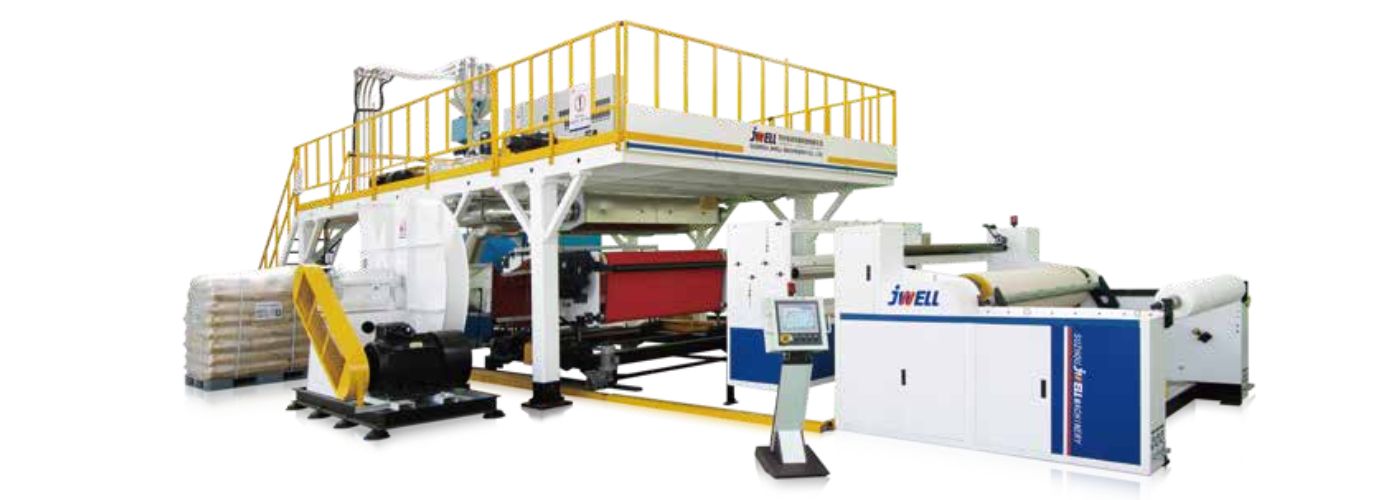

The PP Melt-blown Non-woven Fabric Production Line is a high-performance manufacturing system engineered to produce premium-quality melt-blown nonwoven fabrics utilizing polypropylene as the primary raw material. This advanced production technology creates ultra-fine fiber structures with exceptional performance characteristics suitable for diverse industrial applications.
Ultra-Fine Fiber Technology: The production line achieves remarkable fiber diameter refinement down to 1-5 microns through precision melt-blown extrusion. These super-fine fibers feature unique capillary structures that dramatically increase the number of fibers and total surface area per unit volume, resulting in superior material performance across multiple functional parameters.
Versatile Configuration Options: The system offers four scalable configurations to match varied production requirements—JW65 (500-600kg/h, 22KW, 800mm width), JW90 (1200-1500kg/h, 45KW, 1600mm width), JW105 (2000-2500kg/h, 55KW, 2400mm width), and JW135 (3000-3500kg/h, 75KW, 3200mm width). This range enables manufacturers to select optimal capacity levels from small-scale operations to high-volume industrial production.
Multi-Functional Performance: The resulting melt-blown fabrics exhibit an open, fluffy structure with excellent anti-wrinkle properties and numerous interconnected voids. These characteristics deliver outstanding filtration efficiency for air and liquid media, effective thermal insulation performance, superior oil absorption capabilities, and reliable particle shielding properties.
Comprehensive Application Range: These melt-blown nonwoven fabrics serve critical functions across multiple industries including respiratory protection masks and medical face coverings, air and liquid filtration media, insulation and barrier materials, absorbent products for oil and liquid capture, thermal insulation applications, and industrial wiping cloths. The combination of ultra-fine fiber structure, fluffy volume, and functional versatility makes this production line an essential investment for manufacturers serving the healthcare, hygiene, filtration, and industrial protection sectors worldwide.
Application Scenarios
