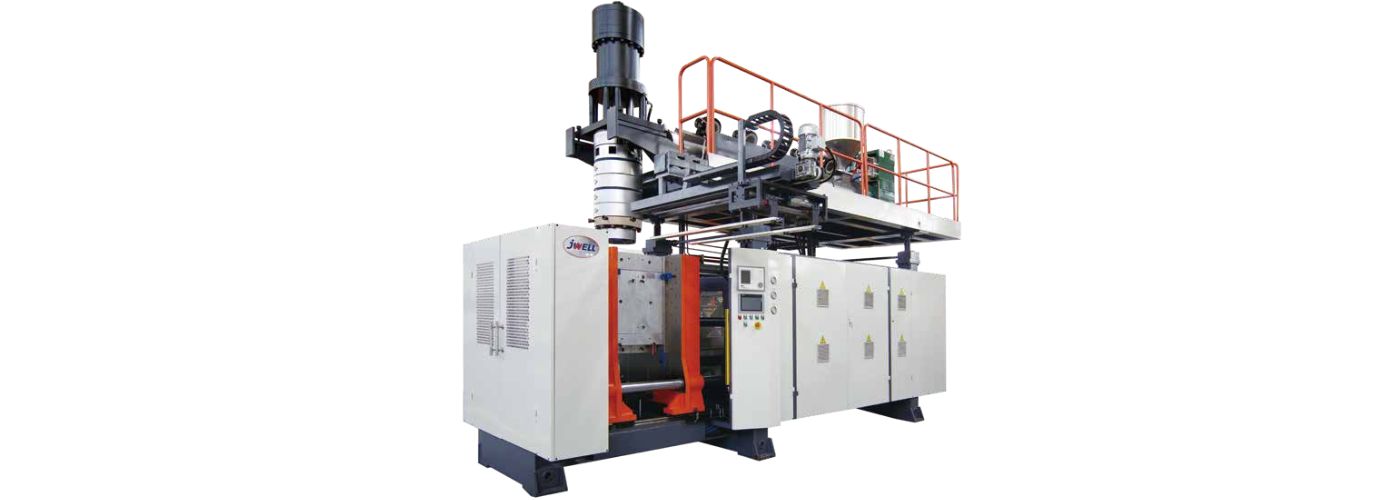

Jwell JWZ-BM30/50/100 Blow Molding Machine
Key Selling Points
- Versatile Chemical Packaging Production for 15L to 100L jerrycans and barrels
- High-Output Extrusion System for efficient and stable parison formation
- Accumulating Die Head Structure for uniform wall thickness in large containers
- Optional View Strip Line System for visible liquid levels
- Energy-Efficient Hydraulic Servo Control for precision operation
- Double Layer Co-Extrusion Capability for material cost optimization
- Robust Clamping Force reaching up to 600KN
- Scalable Output Models suited for diverse industrial packaging needs
Main Technical Parameter
| Model | Unit | BM30 | BM50 | BM100 |
| Max product volume | L | 30 | 50 | 100 |
| Dry cycle | Pc/h | 600 | 450 | 360 |
| Die head structure | Accumulating type | |||
| Main screw diameter | mm | 80 | 90 | 100 |
| Max plasticizing capacity (PE) | kg/h | 120 | 180 | 190 |
| Driving motor | Kw | 37 | 45 | 55 |
| Accumulating volume | L | 5.2 | 6.2 | 12.8 |
| Oil pump motor power(Servo) | Kw | 22 | 30 | 30 |
| Clamping force | KN | 280 | 400 | 600 |
| Space between platen | mm | 400-900 | 450-1200 | 500-1300 |
| Platen size W*H | mm | 740*740 | 880*880 | 1020*1000 |
| Max. mould size | mm | 550*650 | 700*850 | 800*1200 |
| Heating power of die head | Kw | 20 | 28 | 30 |
| Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 |
| Machine weight | T | 12 | 13.5 | 16 |
| Total power | Kw | 95 | 110 | 135 |
| Price | $ | 15-30W | 15-30W | 15-30W |
Product Description

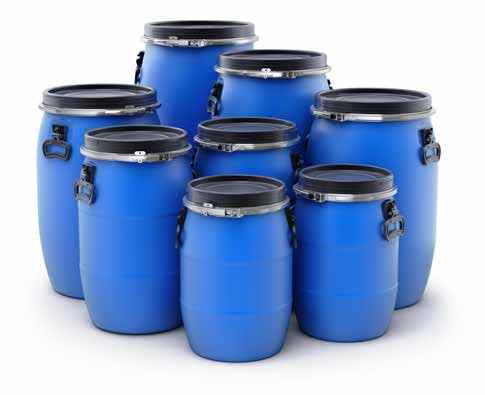

Jwell’s JWZ-BM 30/50/100 Series Blow Molding Machine is specifically engineered for the high-volume production of chemical packaging, including jerrycans, stackable drums, and open-top barrels.
Specialized Chemical Packaging Solutions: Designed to meet the rigorous standards of the industrial liquid industry, this series produces containers ranging from 15 liters up to 100 liters. These products require high structural integrity and chemical resistance to safely house lubricants, chemicals, and bulk food ingredients. The machine’s accumulating die head ensures a consistent, heavy-duty parison that results in uniform wall thickness throughout the container, even at large scales.
Advanced Technical Customization: Manufacturers can opt for a view strip line system to allow end-users to monitor internal liquid levels, or a double-layer co-extrusion system to reduce raw material costs without compromising surface quality. For operational efficiency, the optional hydraulic servo control system provides significant energy savings and smoother mechanical cycling, while the high-output extrusion system ensures a maximum plasticizing rate of up to 190kg/h.
Industrial Strength and Reliability: Built for 24/7 manufacturing, the series features robust clamping forces from 280KN to 600KN and massive platen dimensions to accommodate a variety of mold sizes. With machine weights up to 16 tons, the JWZ-BM series provides a stable and powerful platform for manufacturers focused on high-yield chemical container production. Priced between USD 150,000 and 300,000, it offers a competitive and future-proof investment for the global packaging market.
Application Scenarios
