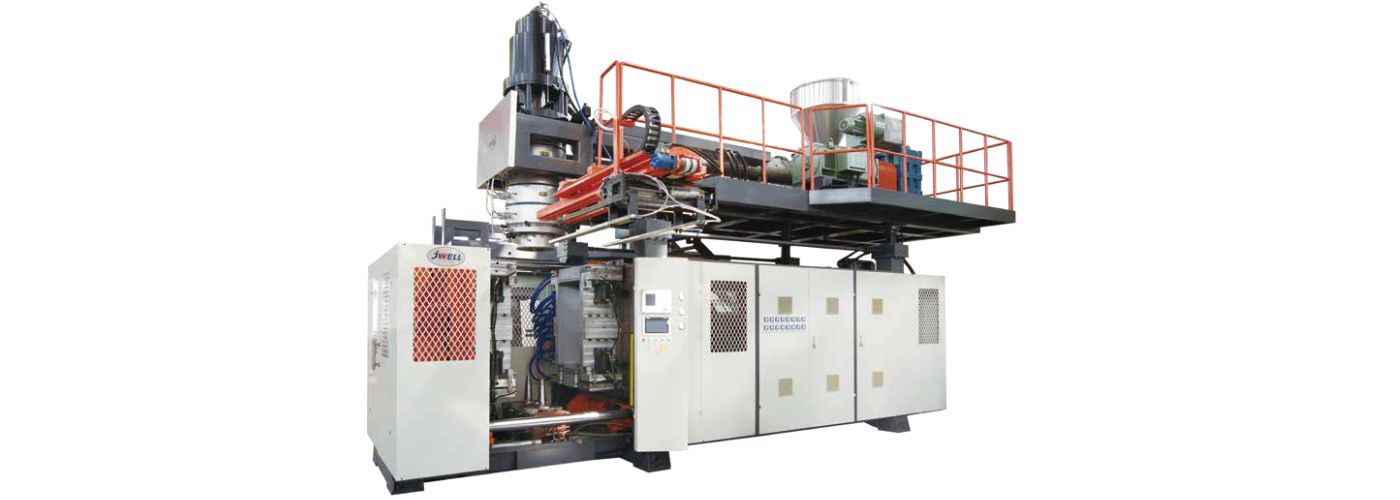

Jwell JWZ-BM160/230 Blow Molding Machine
Key Selling Points

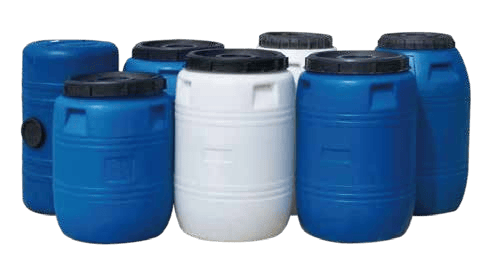

- Large-Scale Industrial Capacity for 100L to 220L heavy-duty drums

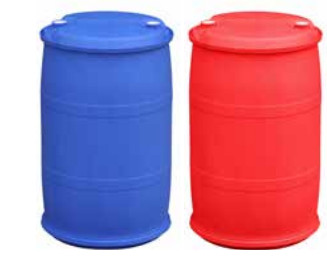

- Specialized “L” Ring Drum Molding for chemical and bulk transport
- High-Output Extrusion System reaching up to 350kg/h plasticizing
- Massive Accumulating Die Head with up to 24L storage capacity
- Powerful Clamping Force up to 900KN for structural integrity
- Optional Double-Layer Co-Extrusion for optimized material costs
- Energy-Saving Hydraulic Servo Control for precision operation
- Heavy-Duty Industrial Build for 24/7 large-format manufacturing
Main Technical Parameter
| Model | Unit | BM160 | BM230 |
| Max product volume | L | 160 | 230 |
| Dry cycle | Pc/h | 300 | 280 |
| Die head structure | Accumulating type | ||
| Main screw diameter | mm | 100 | 120 |
| Max plasticizing capacity (PE) | kg/h | 240 | 350 |
| Driving motor | Kw | 90 | 132 |
| Accumulating volume | L | 18 | 24 |
| Oil pump motor power(Servo) | Kw | 30 | 37 |
| Clamping force | KN | 800 | 900 |
| Space between platen | mm | 500–1400 | 800–1800 |
| Platen size W*H | mm | 1120*1200 | 1320*1600 |
| Max. mould size | mm | 900*1450 | 1200*1800 |
| Heating power of die head | Kw | 30 | 36 |
| Machine dimension L*W*H | m | 7*3.5*4 | 8.2*3.5*5.5 |
| Machine weight | T | 20 | 36 |
| Total power | Kw | 172 | 230 |
| Price | $ | 15-30W | 15-30W |
Product Description
Jwell’s JWZ-BM 160/230 Series Blow Molding Machine is a heavy-duty, high-capacity industrial system specifically engineered for the production of large-format chemical and transport containers, including open-top drums and specialized double “L” ring drums.
High-Performance Industrial Manufacturing: This series is designed to handle the rigorous demands of producing 100-liter to 220-liter industrial carboys. These containers require exceptional structural strength and uniform wall thickness to safely transport hazardous chemicals or bulk food products. The machine’s large accumulating die head ensures a stable, high-volume parison, while the robust clamping force (up to 900KN) guarantees a perfect seal and durable finished product.
Technical Efficiency and Customization: Equipped with a massive 120mm main screw on the BM230 model, the system delivers a high plasticizing capacity of 350kg/h. To meet diverse market requirements, manufacturers can opt for a double-layer co-extrusion system, allowing for the use of recycled materials in the inner layer while maintaining a virgin outer surface. The optional hydraulic servo control system further enhances the machine’s efficiency by providing smoother mechanical movements and significant energy savings during the production cycle.
Scalable Heavy-Duty Infrastructure: With machine weights up to 36 tons and expansive platen sizes reaching 1320 x 1600mm, the JWZ-BM 160/230 series provides the necessary stability for large-scale molding operations. Priced between USD 150,000 and 300,000, it offers a powerful and reliable solution for industrial packaging manufacturers looking to produce market-standard 200L drums with high efficiency and consistent quality.
