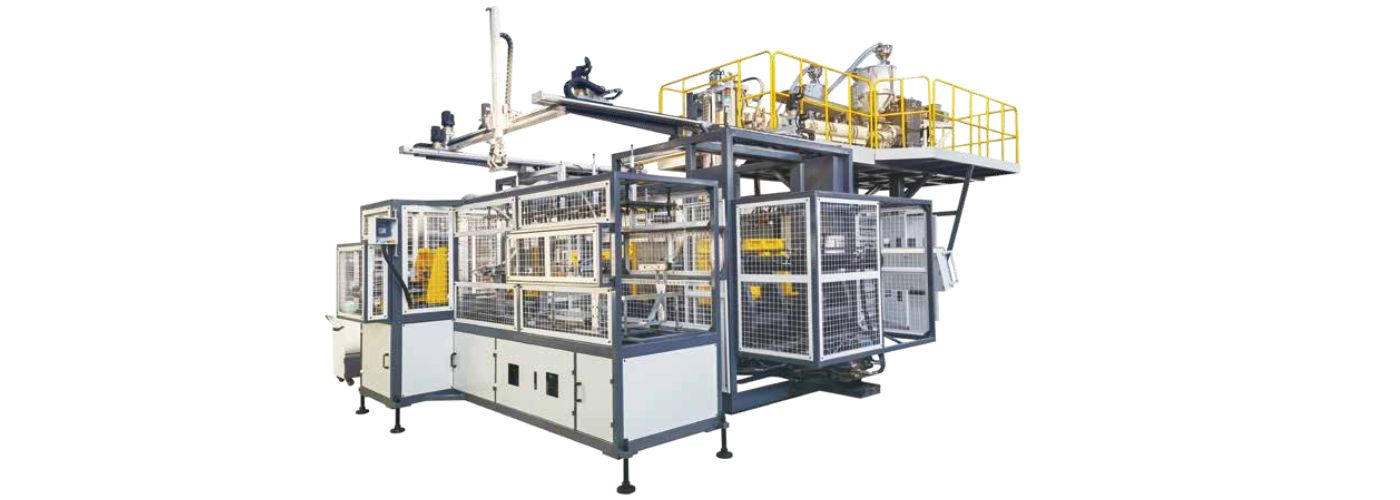

Jwell JWZ-BM30 Four-station Three-layer Blow Molding Machine
Key Selling Points
- Four-Station Configuration for sequential production
- Three-Layer Co-Extrusion for enhanced material properties
- Up-Blowing Structure for convenient auto-deflashing
- On-Line Leak Testing for quality assurance
- Continuous Flash Removal for automated workflow
- View Strip Line Option for design flexibility
- All-Electric Upgrade Path for energy efficiency
- Chemical Industry Specialist for jerrycan manufacturing
Main Technical Parameter
| Model | Unit | BM30 |
| Max product volume | L | 30 |
| Station number | Pc/h | 4 |
| Die head structure | – | Continuous type |
| Main screw diameter | mm | 100/120/100 |
| Max plasticizing capacity (PE) | kg/h | 780 |
| Driving motor | Kw | 75/110/75 |
| Oil pump motor power (Servo) | Kw | 22 |
| Clamping force | KN | 240 |
| Space between platen | mm | 450-950 |
| Platen size W*H | mm | 600*640 |
| Max. mould size | mm | 580*640 |
| Heating power of die head | Kw | 25 |
| Total power | Kw | 410 |
| Price | $ | 15-30W |
Product Description
Jwell’s JWZ-BM30 Four-station Three-layer Blow Molding Machine is engineered for high-volume production of 10-30L chemical packaging jerrycans, featuring advanced automation and multi-layer capability for demanding industrial applications.
Multi-Station Production Flow: The four-station configuration enables sequential operations—mold loading, parison extrusion, blowing, and demolding—occurring simultaneously across stations. This arrangement maximizes production efficiency, achieving higher output compared to fewer-station configurations.
Three-Layer Co-Extrusion System: Optional multi-layer capability allows manufacturers to produce jerrycans with barrier layers, UV protection, or recycled material cores while maintaining virgin material outer surfaces. This flexibility supports specialized chemical storage requirements and sustainability goals.
Up-Blowing Innovation: The continuous type die head combined with up-blowing structure facilitates convenient on-line automatic deflashing, flash conveying, and finished product leak testing. These integrated systems significantly reduce labor costs while increasing production efficiency and quality consistency.
Quality Assurance Integration: On-line leak testing provides immediate quality verification, ensuring each produced jerrycan meets chemical packaging standards before reaching the packaging line. View strip line system (optional) offers additional design customization capabilities.
