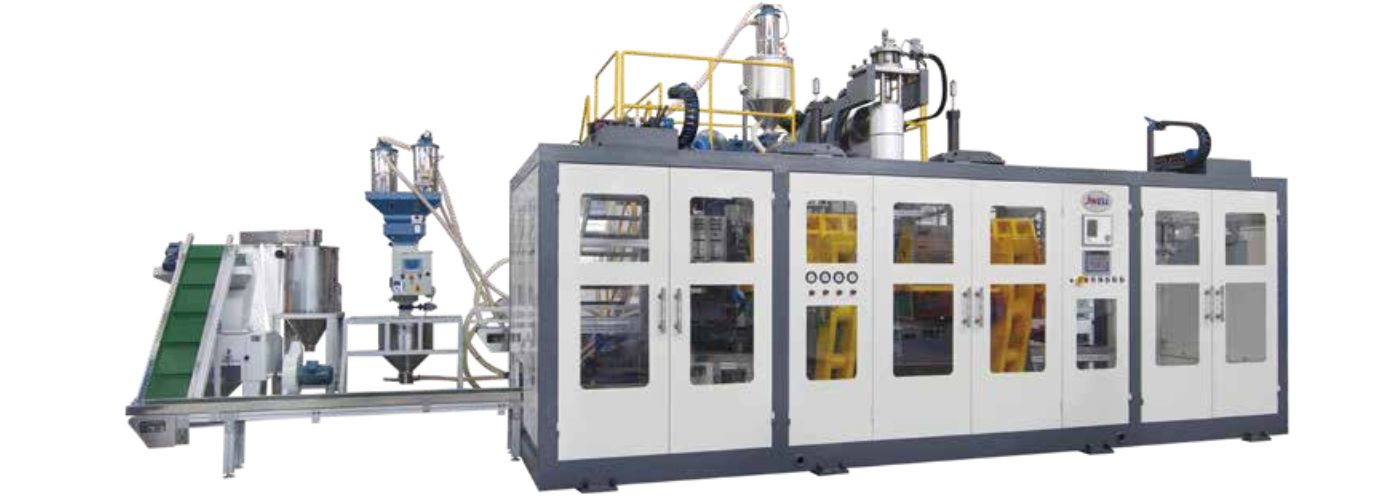

Jwell JWZ-BM30DN-C Blow Molding Machine
Key Selling Points
- Continuous Die Head & Up-Blowing Structure for seamless automation
- Fully Integrated Automation including auto-deflashing, leak testing, and packing
- Double Station Tie-Bar-Less Toggle Platen for uniform clamping and easy mold access
- Reduced Labor Costs via on-line scrap and finished product conveying
- High-Volume 15-30L Capacity specialized for chemical packaging jerrycans
- Optional Multi-Layer Co-Extrusion System
- Optional View Strip Line System for liquid level monitoring
- Precision Servo-Driven Platen Control for energy efficiency and speed
Main Technical Parameter
| Model | Unit | BM30DN-C |
| Max product volume | L | 30 |
| Dry cycle | Pc/h | 450*2 |
| Die head structure | Continuous type | |
| Main screw diameter | mm | 100 |
| Max plasticizing capacity (PE) | kg/h | 190 |
| Driving motor | Kw | 55 |
| Oil pump motor power(Servo) | Kw | 22 |
| Clamping force | KN | 300 |
| Mode moving control | Servo motor control (Optional) | |
| Space between platen | mm | 340-860 |
| Platen size W*H | mm | 580*600 |
| Max.mould size | mm | 500*600 |
| Platen moving stroke | mm | 800 |
| Heating power of die head | Kw | 20 |
| Overall dimension L*W*H | m | 5.6*4.8*4.5 |
| Machine weight | T | 18 |
| Total power | Kw | 125 |
| Price | $ | 15-30W |
Product Description
Jwell’s JWZ-BM30DN-C Double Station Blow Molding Machine is a specialized, high-automation solution engineered for the high-speed production of 15-30L chemical packaging jerrycans and stackable drums.
Advanced Automated Workflow: This model is designed to minimize manual intervention and maximize throughput. By utilizing a continuous-type die head and an up-blowing structure, the system facilitates effortless integration with on-line automation modules. This includes automatic deflashing, scrap recycling, finished product leak testing, and automated packing systems, significantly reducing operational costs while increasing production ratios.
Superior Platen and Mold Design: The machine features a double-station toggle-type platen structure that operates without traditional tie-bars. This innovative design provides exceptionally uniform clamping force and a large mold capacity, while making the assembly and dismounting of molds faster and more convenient. Combined with optional servo motor control for platen movement, the system offers precise, rapid cycling with reduced energy consumption.
Customizable Technical Features: To meet diverse industrial standards, the BM30DN-C can be equipped with multi-layer co-extrusion for functional material layers or a view strip system for liquid level visibility. With a robust 100mm main screw and a clamping force of 300KN, this machine delivers the stability and power required for 24/7 industrial manufacturing. Priced between USD 150,000 and 300,000, it is a premier choice for high-volume chemical container production.

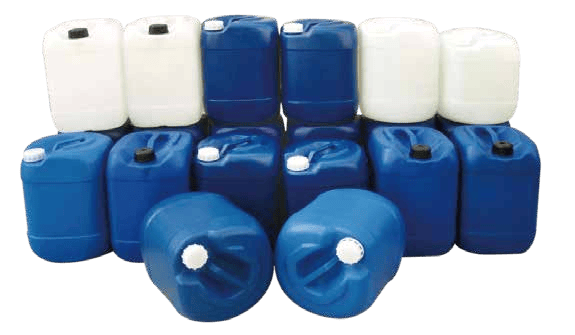

Application Scenarios
