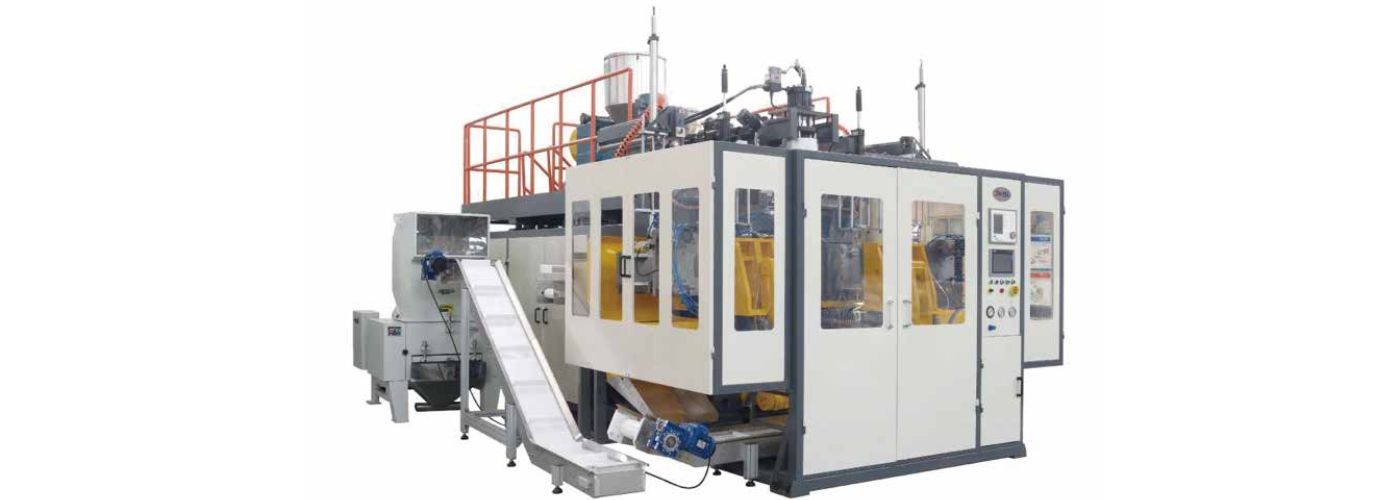

Jwell Plastic Straw & Dropper Blow Molding Machine
Key Selling Points

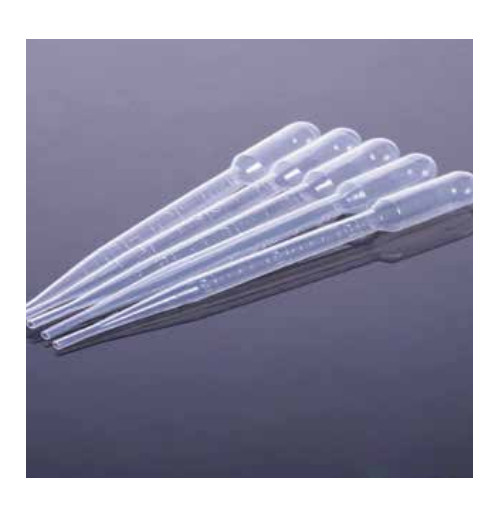

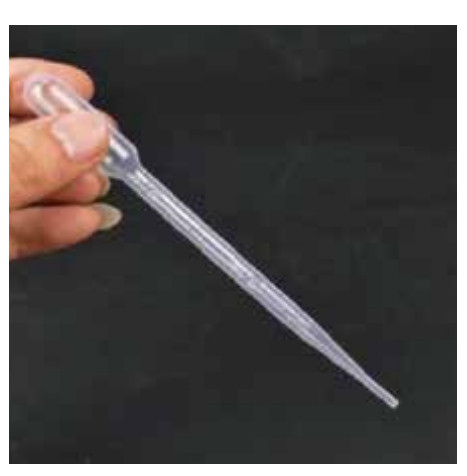

- Disposable Straw & Dropper Production: 0.2ml to 10ml capacity range
- Laboratory & Medical Grade: Suitable for food research and healthcare applications
- Double-Station High Output: 900*2 pcs/h production efficiency
- Continuous Die Head Structure: Stable parison formation
- High-Efficiency Screw: 70 kg/h plasticizing capacity
- Servo Hydraulic Control: Precision operation and energy efficiency
- Compact Machine Design: 3.0×1.9×2.4m footprint, 5 ton weight
- Flexible Mold Configuration: 300×350mm max mold size
Main Technical Parameter
| Model | Unit | BM02D |
| Max product volume | L | 2 |
| Dry cycle | Pc/h | 900*2 |
| Die head structure | / | Continuous type |
| Main screw diameter | mm | 65 |
| Max plasticizing capacity(PE) | kg/h | 70 |
| Driving motor | Kw | 22 |
| Oil pump motor power(Servo) | L | 11 |
| Clamping force | KW | 40 |
| Space between platen | KN | 138–368 |
| Platen size W*H | mm | 286*330 |
| Max. mould size | mm | 300*350 |
| Platen moving stroke | mm | 420 |
| Heating power of die head | KW | 6 |
| Machine dimension L*W*H | m | 3.0*1.9*2.4 |
| Machine weight | T | 5 |
| Total power | KW | 45 |
| Price | $ | 15-30W |
Product Description
Jwell’s Plastic Straw & Dropper Blow Molding Machine is specifically engineered for the high-volume production of disposable plastic straws and droppers used in laboratory, food research, and medical industrial applications.

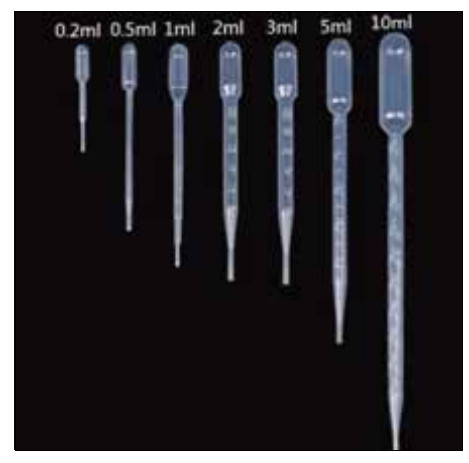

Specialized Small-Volume Production: This machine produces precision plastic straw pipes and droppers with specifications ranging from 0.2ml to 10ml capacity. The continuous die head ensures stable parison formation for consistent wall thickness and dimensional accuracy essential for medical and laboratory grade products.
High-Efficiency Double-Station Design: The innovative dual-station configuration achieves exceptional production rates of 900×2 pieces per hour, maximizing output while maintaining product quality. This design is ideal for manufacturers requiring high-volume production of disposable medical and laboratory supplies.
Technical Excellence: The BM02D model features a 65mm main screw with 70 kg/h maximum plasticizing capacity, 40KN clamping force, and flexible platen spacing from 138mm to 368mm. The servo-controlled hydraulic system ensures precise operation with energy efficiency, while the compact 3.0×1.9×2.4m machine dimensions and 5-ton weight make it suitable for facilities with limited space.
Quality & Compliance: Built to meet the stringent requirements of laboratory and medical applications, this machine produces components that comply with industry standards for cleanliness, precision, and reliability in critical healthcare and research environments.
Application Scenarios
