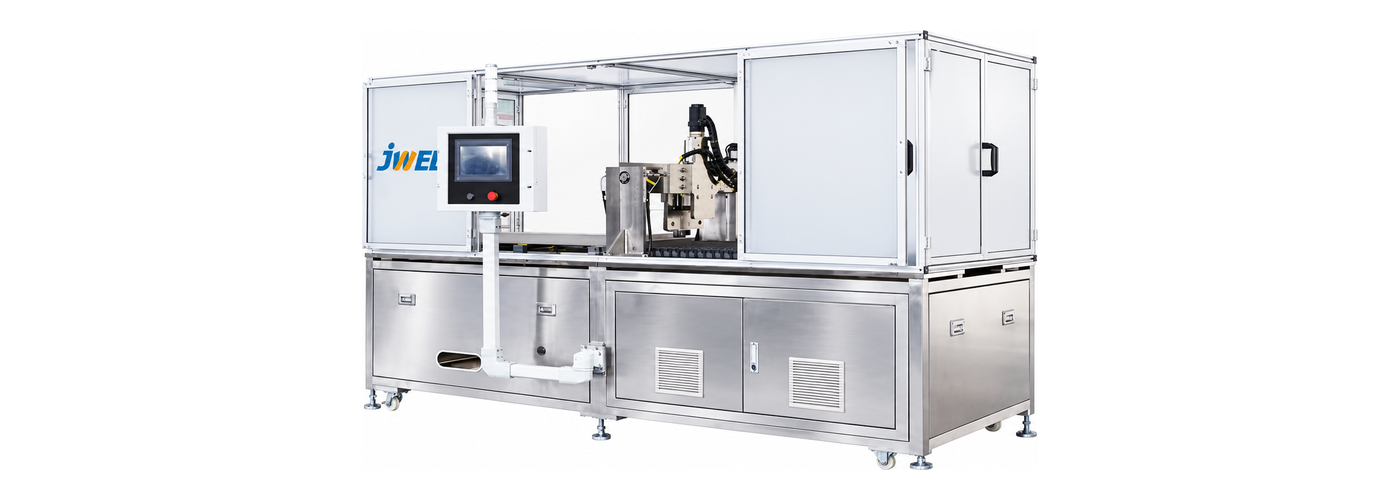

JWELL Multi-functional Coating Platform
JWELL's multi-functional coating platform is built for laboratory and pilot coating on flat substrates. It suits films, sheets, plates, glass, plastic materials, foil-type materials and fiber materials, including perovskite coating, glass-panel coating and flat-surface encapsulation processes.
Key Selling Points
- Precision Slot-Die: High-precision slot-die coating with micron or nano-level accuracy and a high-precision supply pump for adjustable flow.
- Ultra-Thin Wet Coat: Minimum achievable wet coating thickness down to 500 nm.
- Class 100 Clean Design: Full stainless-steel construction with a cleanroom-compatible Class 100 appearance.
- Substrate Size: Supports substrates up to 400 mm wide by 1000 mm long.
- Customizable: Equipment can be customized to user-specific process requirements.
Technical Specifications
| Parameter | Specification |
| Substrate types | Film material, sheet material, plate material, glass, plastic material, foil-shaped material, fiber material, etc. |
| Substrate size | 400 mm (width) × 1000 mm (length) |
| Viscosity range | 30–20000 cps |
| Uniformity of coating | 1%–2% |
| Minimum wet coating thickness | 500 nm |
| Cleanliness standard | Class 100 |
Application Scenario
Suitable for coating on flat surfaces such as perovskite coating processes, glass panel coating processes and flat-surface encapsulation coating processes.
Product Description
The platform uses a high-precision slot-die coating unit with micron or nano-level coating accuracy, paired with a high-precision supply pump that can provide different supply rates as required.
The machine is built from stainless steel for a clean appearance that meets Class 100 cleanliness, and can be customized to the user's process.
