JWM Series Spinning Extruder
JWELL supplies JWM spinning extruder models for melt spinning PET, PA6, PA66 and PP chips or flakes, with outputs up to 1050 kg/h.
Key Selling Points
- Material Coverage: Source lists PET, PA6, PA66 and PP chips or flakes.
- Wide Output Range: Documented PET capacities extend from 6 to 1050 kg/h.
- LTM Screw Design: Low-temperature mixing elements support plasticizing and melt quality.
- Stable Transmission: Hardened helical gearing and a heavy-duty thrust bearing are documented.
- Control Integration: Optional connection to the customer’s main DCS is source-supported.
Technical Specifications
| Model | Screw diameter (mm) | L/D | Max PET output (kg/h) | Max PA6 output (kg/h) | Screw speed (r/min) | Drive power (kW) | Heating power (kW) | Heating zones | Heating voltage (V) | Center height (mm) | Weight (t) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JWM20/25 | Ø20 | 25:1 | 6 | 4 | 20–90 | 2.2 | 3 | 3 | 220 | 340 | 0.6 |
| JWM25/25 | Ø25 | 25:1 | 8 | 5.5 | 20–90 | 2.2 | 3 | 3 | 220 | 340 | 0.7 |
| JWM30/25 | Ø30 | 25:1 | 12 | 8 | 20–90 | 3 | 3 | 3 | 220 | 340 | 0.8 |
| JWM40/25 | Ø40 | 25:1 | 28 | 19 | 20–90 | 5.5 | 6 | 3 | 220 | 340 | 0.9 |
| JWM45/25 | Ø45 | 25:1 | 35 | 24 | 20–90 | 7.5 | 8 | 3 | 220 | 340 | 1 |
| JWM50/25 | Ø50 | 25:1 | 55 | 38 | 20–90 | 7.5 | 14 | 4 | 220 | 340 | 1.1 |
| JWM55/25 | Ø55 | 25:1 | 65 | 45 | 20–90 | 11 | 15 | 4 | 220 | 340 | 1.2 |
| JWM65/25 | Ø65 | 25:1 | 85 | 60 | 20–90 | 18.5 | 16 | 5 | 220 | 340 | 1.3 |
| JWM75/25 | Ø75 | 25:1 | 100 | 70 | 20–80 | 22 | 21 | 5 | 220 | 410 | 1.6 |
| JWM80/25 | Ø80 | 25:1 | 125 | 85 | 20–80 | 37 | 27 | 5 | 220 | 510 | 1.8 |
| JWM90/25 | Ø90 | 25:1 | 180 | 125 | 20–80 | 45 | 32 | 5 | 220 | 510 | 2 |
| JWM105/25 | Ø105 | 25:1 | 280 | 195 | 20–70 | 55 | 45 | 5 | 220 | 610 | 3 |
| JWM120/25 | Ø120 | 25:1 | 380 | 260 | 20–60 | 75 | 54 | 6 | 220 | 660 | 3.5 |
| JWM130/25 | Ø130 | 25:1 | 450 | 310 | 20–60 | 90 | 57 | 6 | 220 | 660 | 4 |
| JWM135/25 | Ø135 | 25:1 | 500 | 350 | 20–60 | 90 | 63 | 6 | 220 | 660 | 4.2 |
| JWM150/25 | Ø150 | 25:1 | 600 | 415 | 20–60 | 110 | 76.5 | 6 | 380 | 710 | 5 |
| JWM160/25 | Ø160 | 25:1 | 700 | – | 20–60 | 132 | 85.5 | 6 | 380 | 710 | 6 |
| JWM170/25 | Ø170 | 25:1 | 800 | – | 20–60 | 160 | 103.5 | 6 | 380 | 750 | 8 |
| JWM180/25 | Ø180 | 25:1 | 900 | – | 20–50 | 185 | 110 | 7 | 380 | 800 | 10 |
| JWM200/25 | Ø200 | 25:1 | 1050 | – | 20–50 | 220 | 150 | 7 | 380 | 1000 | 12 |
Application Scenario
Product Description

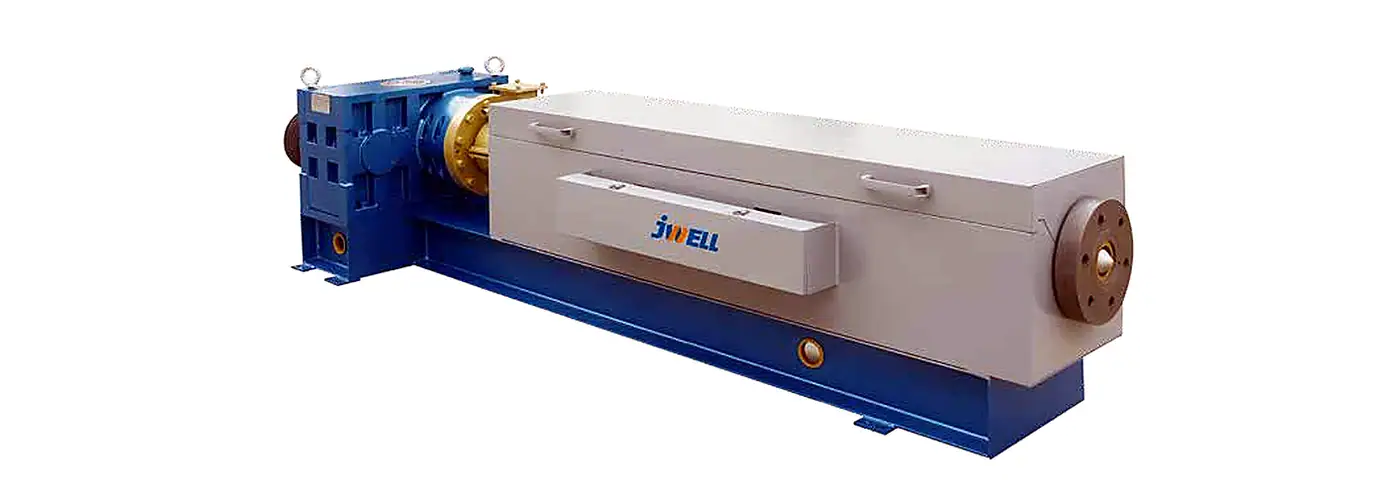

The JWELL JWM series spinning extruder is designed for melt-spinning PET, PA6, PA66 and PP chips or flakes. The source states that thousands of JWM extruders operate in more than 700 chemical-fiber and nonwoven plants, a statement also repeated in current JWELL product literature.

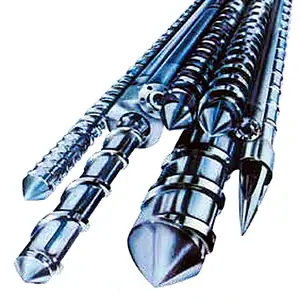

An LTM low-temperature mixing element is incorporated in the screw design to support plasticizing performance and melt quality. Professional screw-and-barrel processing is described as providing high manufacturing accuracy and good straightness. The drive arrangement uses a high-precision helical gearbox with hardened, ground gears for stable, low-noise operation, together with a heavy-duty thrust bearing for axial load. Imported bearings and seals can be selected according to project requirements to support durability and maintenance planning.
The documented range covers screw diameters from Ø20 to Ø200 mm with a 25:1 L/D ratio. Maximum PET output extends from 6 to 1050 kg/h; PA6 values are listed through the Ø150 model, while larger rows are blank and have not been inferred. Drive power ranges from 2.2 to 220 kW, with 3–7 heating zones depending on model.

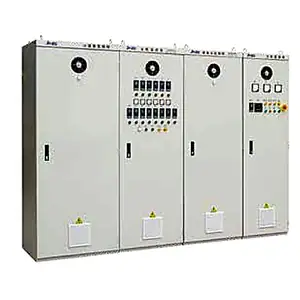

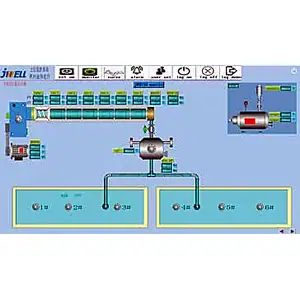

The electrical-control source notes RKC pressure and temperature instruments, internationally recognized inverter and low-voltage component brands, and optional connection to the customer’s main DCS for centralized control. Brand availability and final control architecture should be confirmed in the quotation. Provide the polymer, target output, screw size, utilities and plant-control requirements for model selection.
